EXi: MOD-7 Waveshaping VPM Synthesizer
338
7–1b: Mixers 2 and 3
The controls for Mixers 2 and 3 are the same as those for “7–
1a: Mixer 1,” above.
7–1c: Link
The Link buttons let you combine two or three of the mixers
together, cascading the output of one into the next.
To create a 4-in, 1-out mixer, use either of the Link buttons.
To create a 6-in, 1-out mixer, use both of them.
Internally, Mixers 2 and 3 have a third input dedicated to the
Link function. This input is unity gain only, without a
volume control.
Link 1->2 [Off, On]
This merges the output of Mixer 1 into the output of Mixer 2.
Link 2->3 [Off, On]
This merges the output of Mixer 2 into the output of Mixer 3.
v
7–1: Page Menu Commands
• Compare →p.112
• Write Program →p.112
• Exclusive Solo →p.113
• PAGE →p.126
•MODE →p.126

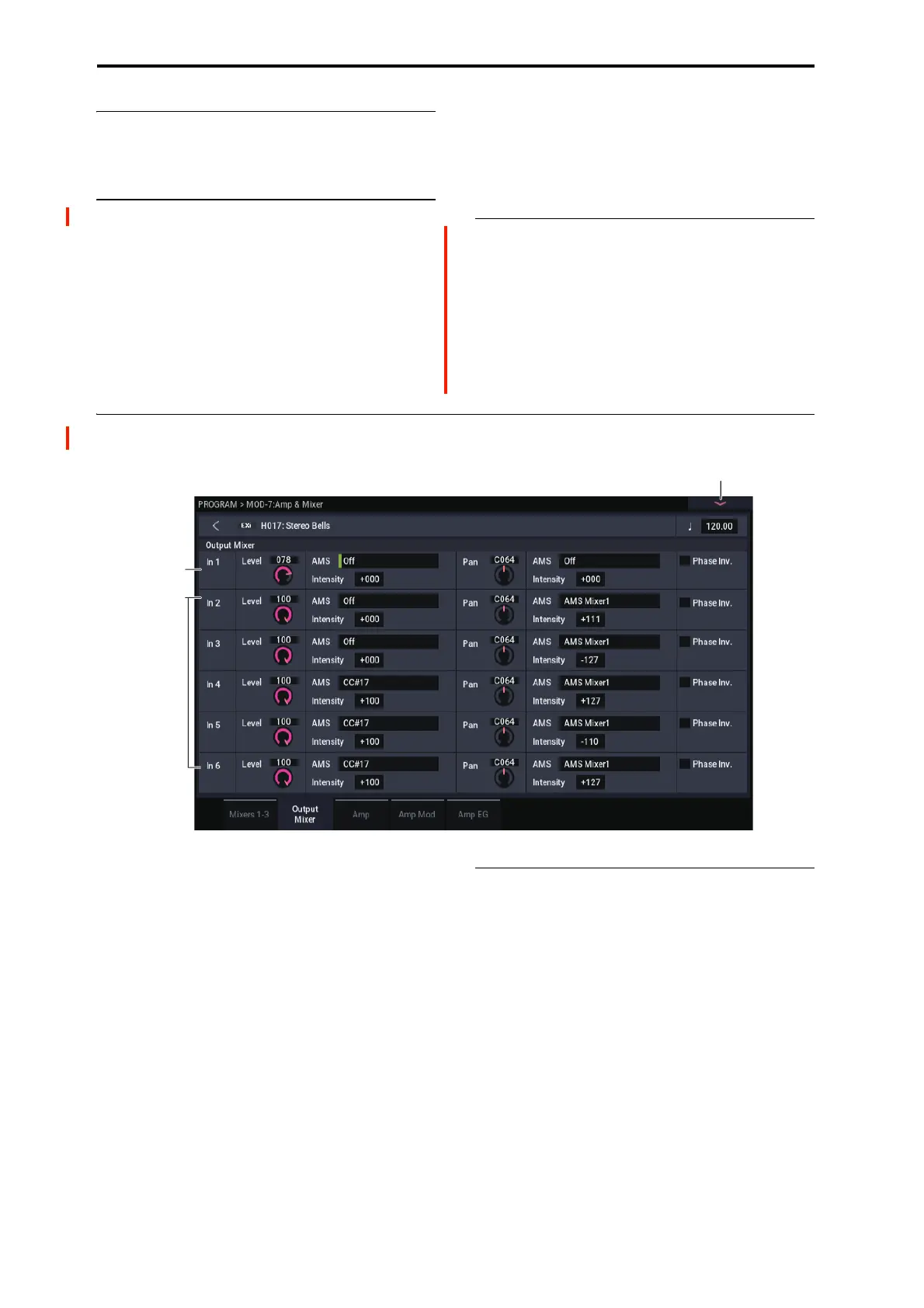

7–2: Output Mixer
The Output Mixer is a 6-in, stereo-out mixer, which takes
signals from the Patch Panel and routes them to the Amp
section.
Important: In order to hear the output of any block on the
Patch Panel, including the VPM Oscillators, the PCM
Oscillator, the Noise Generator, the Audio Input, and the
Filters, the signal must eventually be patched into the Output
Mixer.
In the Output Mixer, you can:
• Control the volume level, pan, and phase for each of the
six inputs
• Modulate volume levels and pan via AMS.
7–2a: Input 1
Level [0…100]
This controls the volume level for Input 1.
AMS [List of AMS Sources]
This selects an AMS source to control the Level. For a list of
AMS sources, see “Alternate Modulation Source (AMS)
List” on page 901.
Intensity [–100…+100]
This controls the depth and direction of the Level AMS
modulation.
Pan [L000…C064…R127]
This controls the input’s stereo pan. A setting of L000 places
the sound at the far left, C064 in the center, and R127 to the
far right.
To Next Page
