Master Effects (MFX1, 2) Routing
751
If the Program’s Oscillator Mode is set to Drums, the “Use
DKit Setting” box (PROGRAM 8–1b) becomes available. If
you check this box, Send1 and Send2 levels for each key of
the selected DrumKit become effective. If Bus Select is set
to L/R or Off for a drum instrument key, Send1 (to MFX1)
and Send2(toMFX2) become effective.
If Bus Select is set to IFX1–12, the post-IFX1–12 Send1
and Send2 (PROGRAM 8–5a) become effective.
If this is unchecked, Send1 (to MFX1) and Send2 (to
MFX2) (PROGRAM 8–1f), and the post IFX1–12 Send1
and Send2 (PROGRAM 8–5a) will be valid for all drum
instruments, in the same way as when Oscillator Mode is
Single or Double, or for EXi programs.
COMBINATION and SEQUENCER modes
Use Send1 (to MFX1) and Send2 (to MFX2) (IFX–
Routing page) for timbres (Combination) and tracks
(Sequencer) to set the Send1 and 2 levels for each timbre and
track. As with PROGRAM mode, if Bus Select is set to L/R
or Off, Send1 (to MFX1) and Send2 (to MFX2) become
effective.
The actual levels use these Send1 and 2 level values,
multiplied by the send level values of oscillators 1 and 2 of
the PROGRAM > IFX– Routing page.
Send level
For example if you set the program’s OSC1 Send1 (to
MFX1) to 127, Send2 (to MFX2) to 064, OSC2 Send1 (to
MFX1) to 064, Send2 (to MFX2) to 127, and the
combination’s Send1 (to MFX1) to 064 and Send2 (to
MFX2) to 127, the actual send levels of the combination will
be as follows.
OSC1/EXi1 Send1=127 (100%) *064 (50%)=064 (50%)
OSC1/EXi1 Send2=064 (50%) *127 (100%)=064 (50%)
OSC2/EXi2 Send1=064 (50%) *064 (50%)=032 (25%)
OSC2/EXi2 Send2=127 (100%) *127 (100%)=127 (100%)
If IFX1–12 is selected for Bus Select, use the Send1 and
Send2 parameters for the post-IFX signals. If 1–4 or 1/2–3/4
is selected instead, these Send1 and 2 settings are ignored
and the Master Effect is not applied.
Send1 responds to CC#93, and Send2 responds to
CC#91. If Send1 (to MFX1) and Send2 (MFX2)” for
each timbre/track are effective, the parameter will be
controlled on the MIDI channels set for the
corresponding timbres and tracks. If the Send1 and
Send2 parameters for the post-IFX1–12 signals are
effective, they can be controlled on the MIDI channels
assigned to IFX1–12.

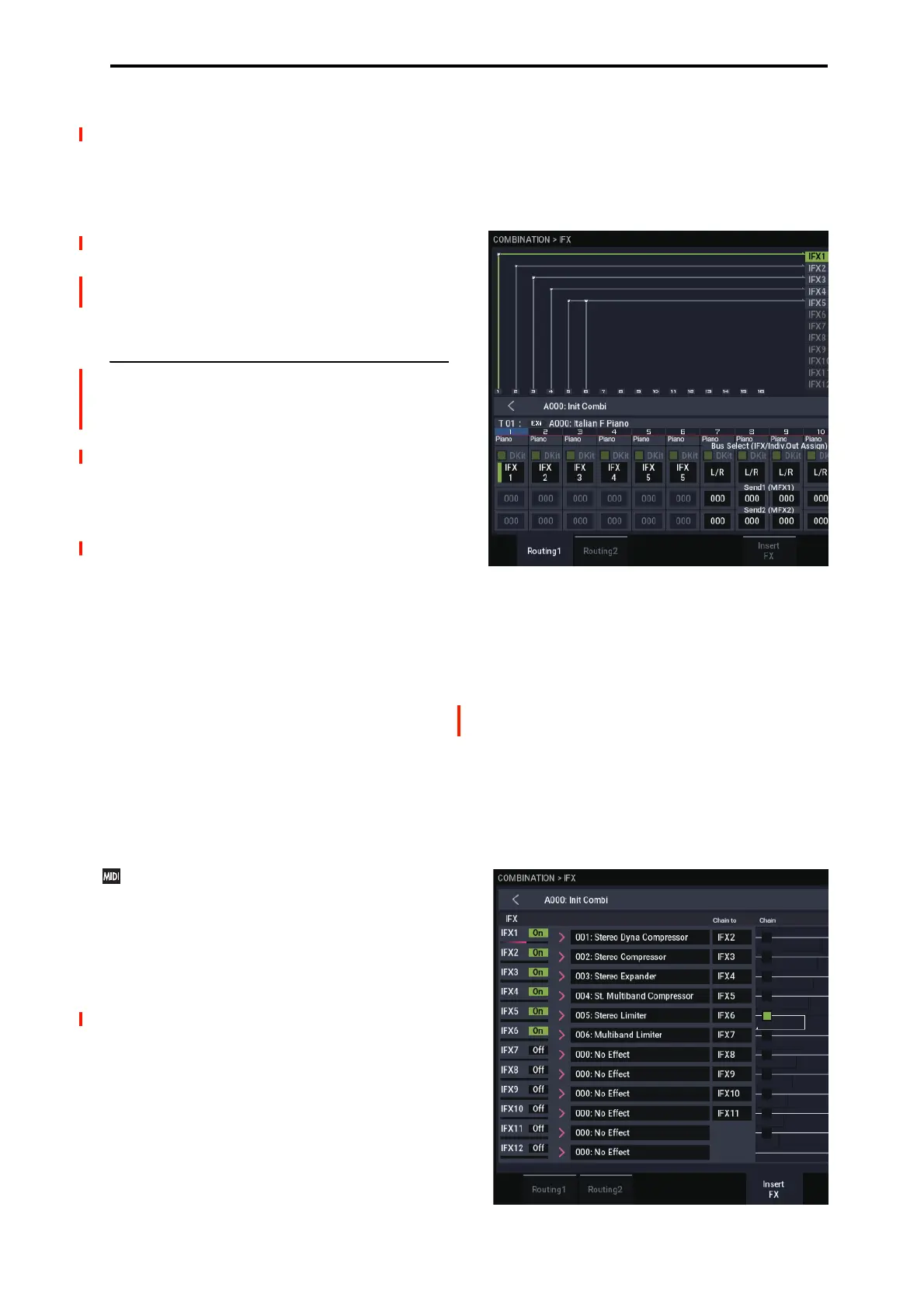

An example for COMBINATION mode is given below. In
the upper figure (Fig. 2–2a), Bus Select is set so that Timbre
1 is routed to IFX1, Timbre 2 to IFX2, Timbre 3 to IFX3,
Timbre 4 to IFX4, Timbres 5 and 6 to IFX5, and Timbres 7
and 16 to L/R. In this case, use Send1 and Send2 for the
post-IFX1 (001:St. Dyna Compressor) signal to set the send
level of the Timbre 1 routed to the Master Effect. (In this
example they are set to 032 and 127.) In the same way, use
Send1 and Send2 for the post-IFX2, 3, and 4 signals to set
the send levels of Timbres 2, 3, and 4, and use the Send1 and
Send2 parameters for the post-IFX5 signal to set the send
levels of Timbres 5 and 6. For Timbres 7 and 16, the settings
of Send1 (to MFX1) and Send2 (to MFX2) will be
effective. (At this time, the actual send levels use these Send
1 and 2 values multiplied by the Send1 and 2 settings for
Program oscillators 1 and 2.)
“Bus Select DKit” is valid if you’ve selected a drum track
for a Timbre (Combination) or Track (Sequencer).
Fig. 2–2a
If you select DKit, the Bus Select settings for each key
become effective, and each drum instrument sound will be
routed to the corresponding buses. At this time, the actual
send levels use these Send 1 and 2 values, multiplied by the
Send1 and 2 settings for each DrumKit key.
If a drum kit’s Bus Select is set to L/R or Off, the levels will
be these Send 1 and 2 settings multiplied by the send levels
you specify in PROGRAM > IFX– Routing page for OSC1
Send1 (to MFX1) and Send2 (to MFX2)
(PROGRAM 8–
1d), just as in other
cases (Oscillator Mode Single or
Double).
If Bus Select is set to IFX1–12, use Send1 and Send2 for the
post-IFX signal. If Bus Select is set to 1–4 or 1/2–3/4, the
Send 1 and 2 settings will be ignored.
Fig. 2–2b
