Leica Cyclone - Page 249

Organization/Visualization Pointcloud Module 4.1 – Texture Mapping
21 - 32
• Browse
BrowseBrowse
Browse to the Images Folder and highlight
highlighthighlight
highlight it.
• Click OK
OKOK
OK

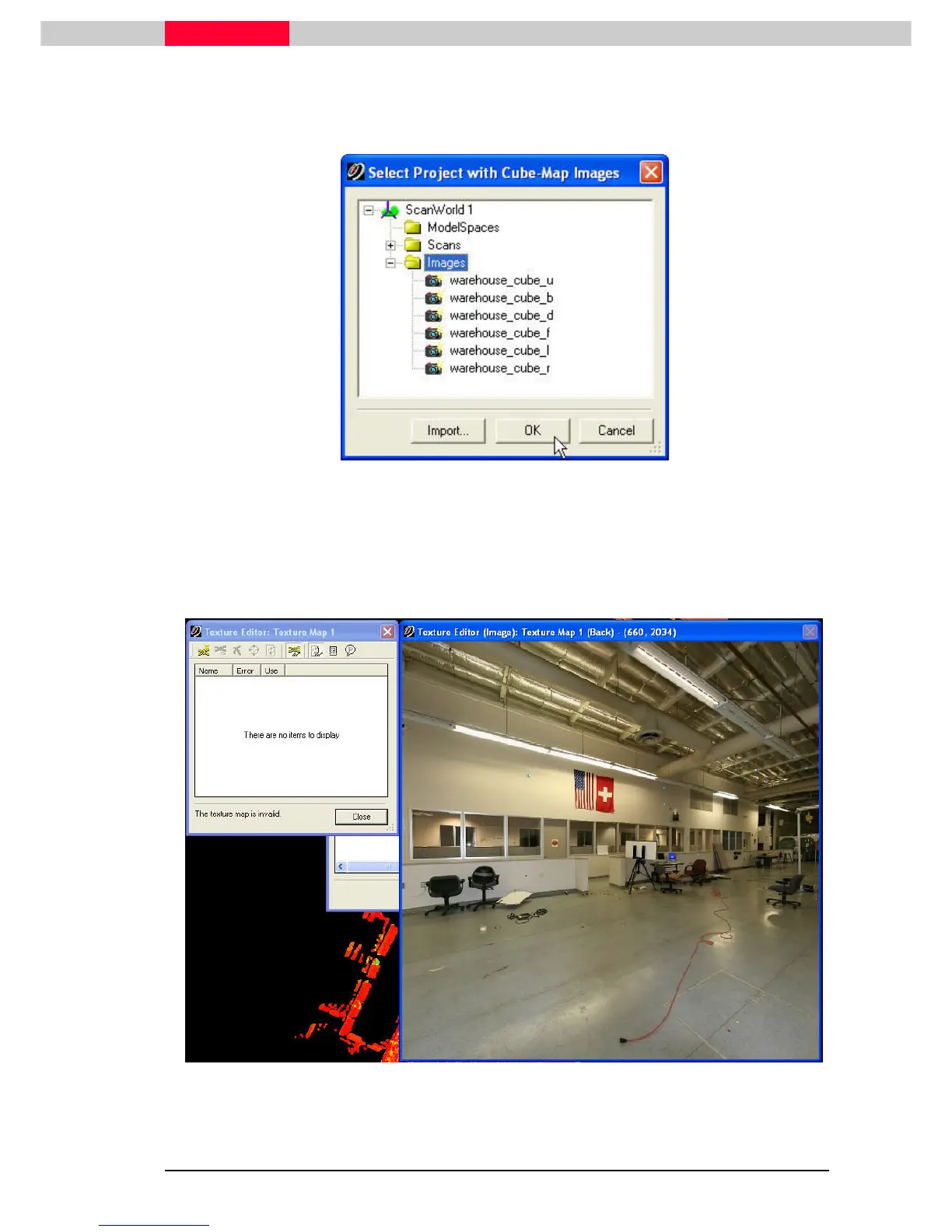

Figure 38
 Note: The Select Project with Cube-Map-Image Window requires you to select a
project within your ScanWorld. You could also click the Import” button and select
pictures from your hard drive.
This will invoke the Texture Editor which consists of Texture Editor Dialog and Texture Editor
(Image).
Figure 39
