Leica Cyclone - Page 307

Data Extraction Module 5.0 - Cyclone Basic Modelling
23 - 32
2) Pick a point on the first pipe in the run.
3) Multi-pick the other pipes in the run in any order, with one pick per pipe. In this case there
will be two picks.

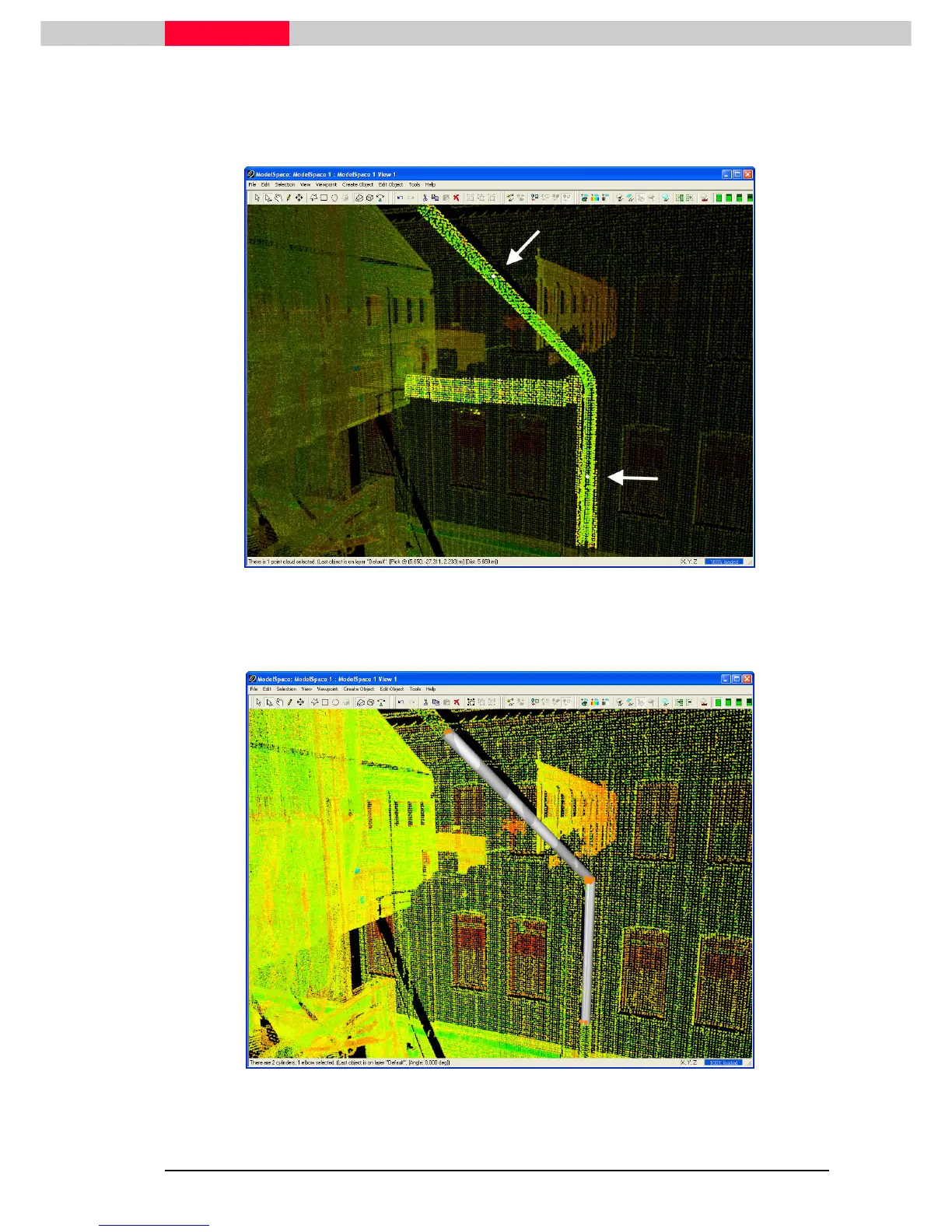

Figure 35
4) Click Create Object | Region Grow | Pipe Run….
5) Click OK in the Region Growing dialog, to create the pipe run.
Figure 36
