16 - 18 Module 5.3 – Alignments&Sections
Data Extraction

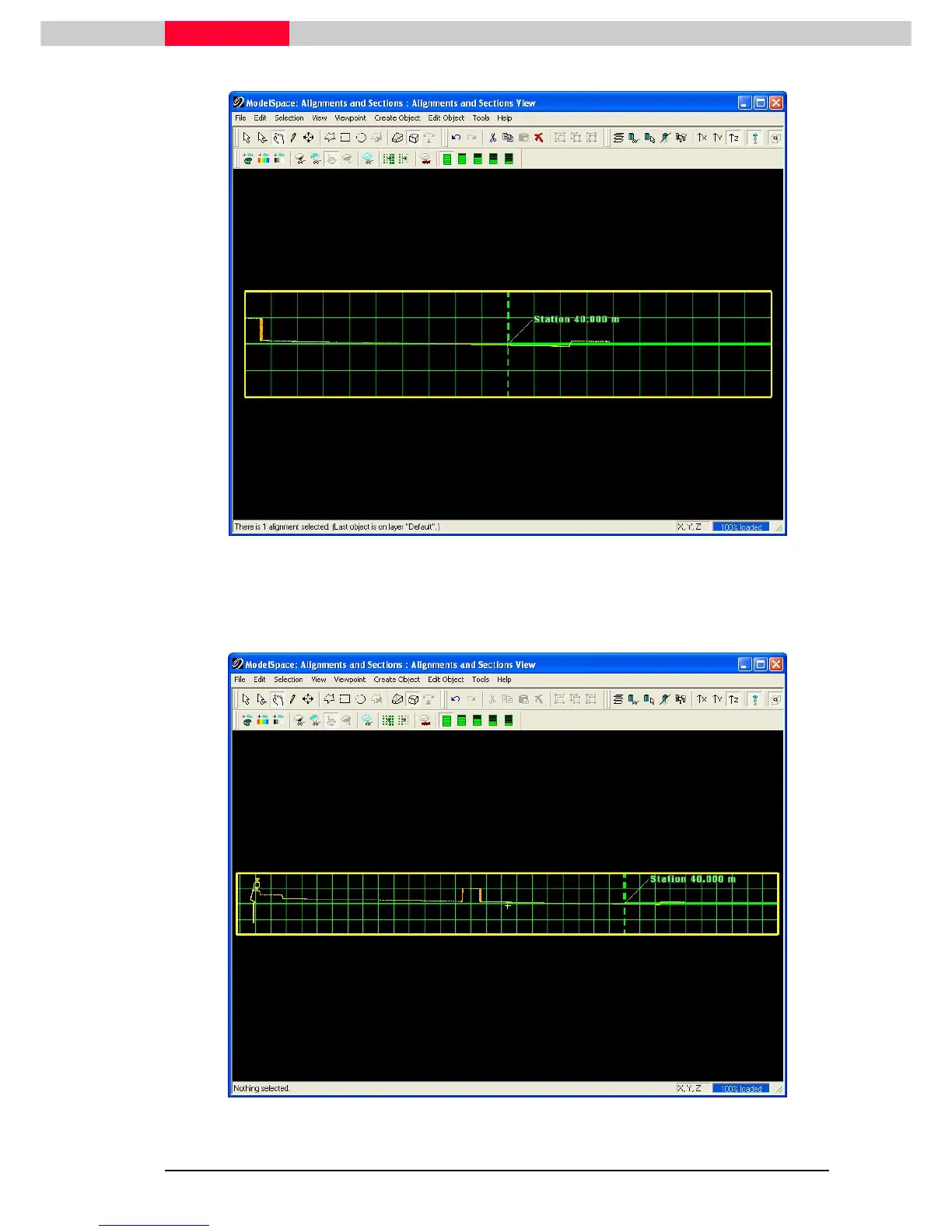

Figure 24
2) Select the yellow limit box first to see the orange handles. Adjust the limits of the section by
clicking and dragging the orange handles on the limit box (yellow) to include the whole
portion of the roadway. When finished, the result may look something like Figure 25
Figure 25
