Raymarine LIGHTHOUSE 4 User Manual

•Generatorline1toneutralvoltage(PGN127747)
•Generatorline1toline2voltage(PGN127747)
•Generatorline1frequency(PGN127747)
•Generatorline2power(PGN127745)
•Generatorline2current(PGN127745)
•Generatorline2toneutralvoltage(PGN127748)
•Generatorline2toline3voltage(PGN127748)
•Generatorline2frequency(PGN127748)
•Generatorline3power(PGN127746)
•Generatorline3current(PGN127746)
•Generatorline3toneutralvoltage(PGN127749)
•Generatorline3toline1voltage(PGN127749)
•Generatorline3frequency(PGN127749)
Theadditionaldataitemsabovewillbeavailableforeachdetected3phase
generator
.
Loadcelldata
Loadcellsaresensorsusedtomeasuretheloadbearingsonkeyrigging
components,suchasforestay,sidestay,backstay,oranysheet,halyard,
controlline,vang,tackline,orrunner.
Apredefinedlistof[Loadcells]isavailable.
Forloadcelldatatobepopulatedasupportedloadcellgatewayisrequired.
CyclopsMarineloadcells
CyclopsMarineisathirdpartycompanyprovidingwirelessload-sensing
devicesforuseinsailing,andespeciallyracesailing.
TheCyclopsMarinesensorsconnectwirelesslytothebelow-deckCyclops
MarineGateway,whichinterfaceswithcompatibleRaymarineMFDsand
displayskeyloadbearingsatidentifiedstresspointsonayacht'srigging.
IntheMFD'sDashboardapp,youcanseeataglancethelive,staticand
dynamicloaddatatransmittedbytheCyclopsMarinesensors,atupto50
sensorplacements.
22.4Enginepage
Theenginepageisalwaysavailable.Thenumberofenginesdisplayedon
theenginepageisbasedonthenumberofenginesselectedduringtheinitial
MFDstartupwizard.Theenginepageincludesdatarelevanttoenginesand
includesthegraphicalenginedial.

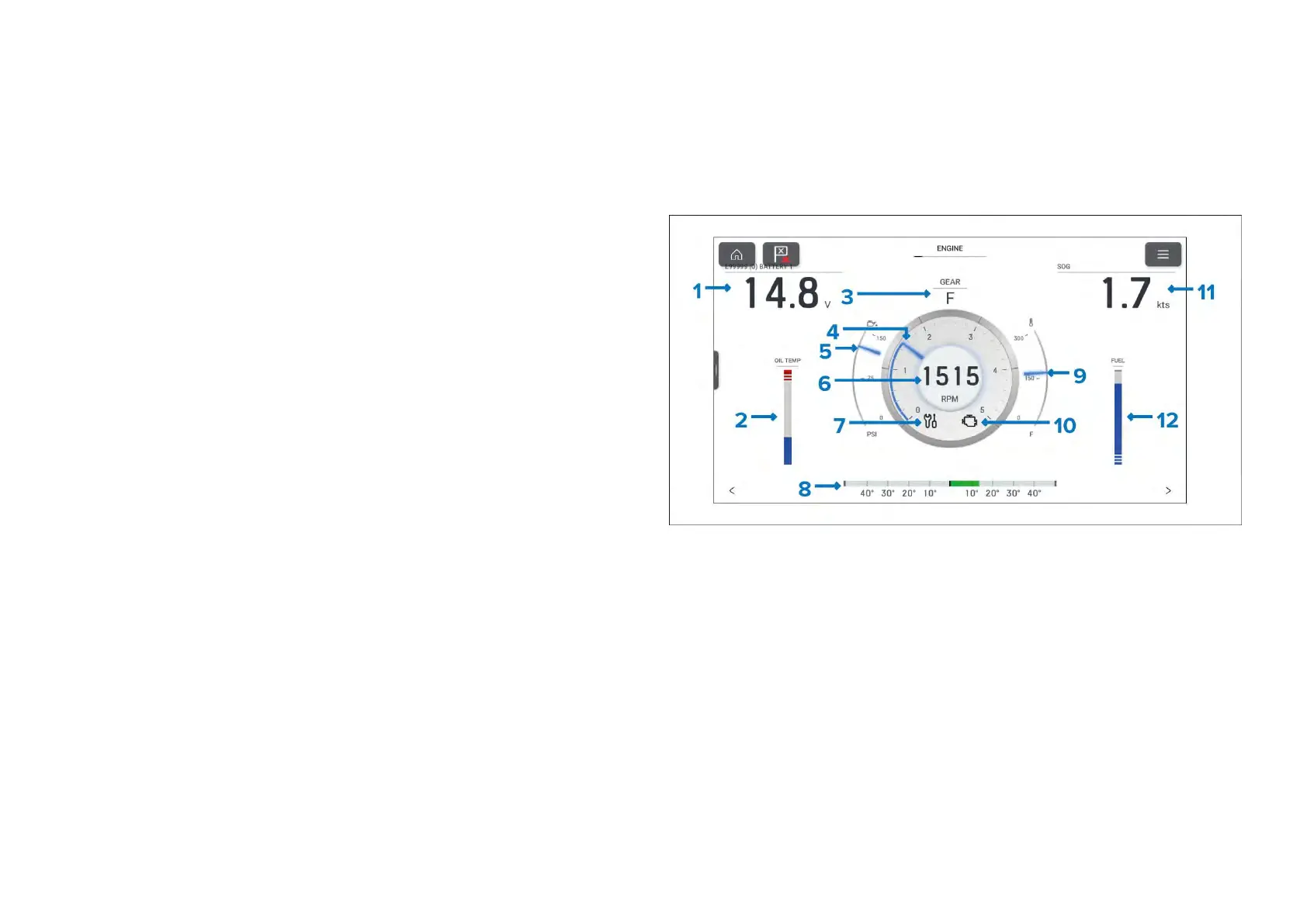

Examplesingleenginedatapage
1.BATTERY1—Enginebatteryvoltage.
2.OILTEMP—Engineoiltemperature.
3.GEAR—Transmissiongear.
4.RPMindicator—GraphicalrepresentationofengineRPM.
5.Oilpressureindicator—Currentengineoilpressureindication.
6.RPM—DigitalRPMvalue.
7.Maintenanceindicator—Illuminateswhenenginemaintenanceis
required.
8.Rudderbar—Providesanindicationofrudderposition.
9.Coolanttemperature—Currentenginecoolanttemperatureindication.
10.Checkengine—Illuminateswhenanenginefaultisdetected.
11.SOG—SpeedOverGround.
12.FUEL—Graphicalrepresentationofthepercentageoffuelremaining.
334

Raymarine LIGHTHOUSE 4 Specifications

General

Operating System	LightHouse 4
Touchscreen	Yes
Connectivity	NMEA2000, Ethernet, Wi-Fi
Chart Compatibility	Navionics, C-MAP
Display Size	Varies by model (e.g., 7", 9", 12", 16")
Display Resolution	Varies by model
Networking	Ethernet, Wi-Fi
GPS	Built-in
Radar Support	Yes, compatible with Raymarine radars
Sonar Support	Yes
Autopilot Integration	Yes, compatible with Raymarine autopilot systems
Weather Data	Yes, via internet
Software Updates	Via Wi-Fi
