Formoreinformation,referto:p
.276—Radarapp
Radarappicons

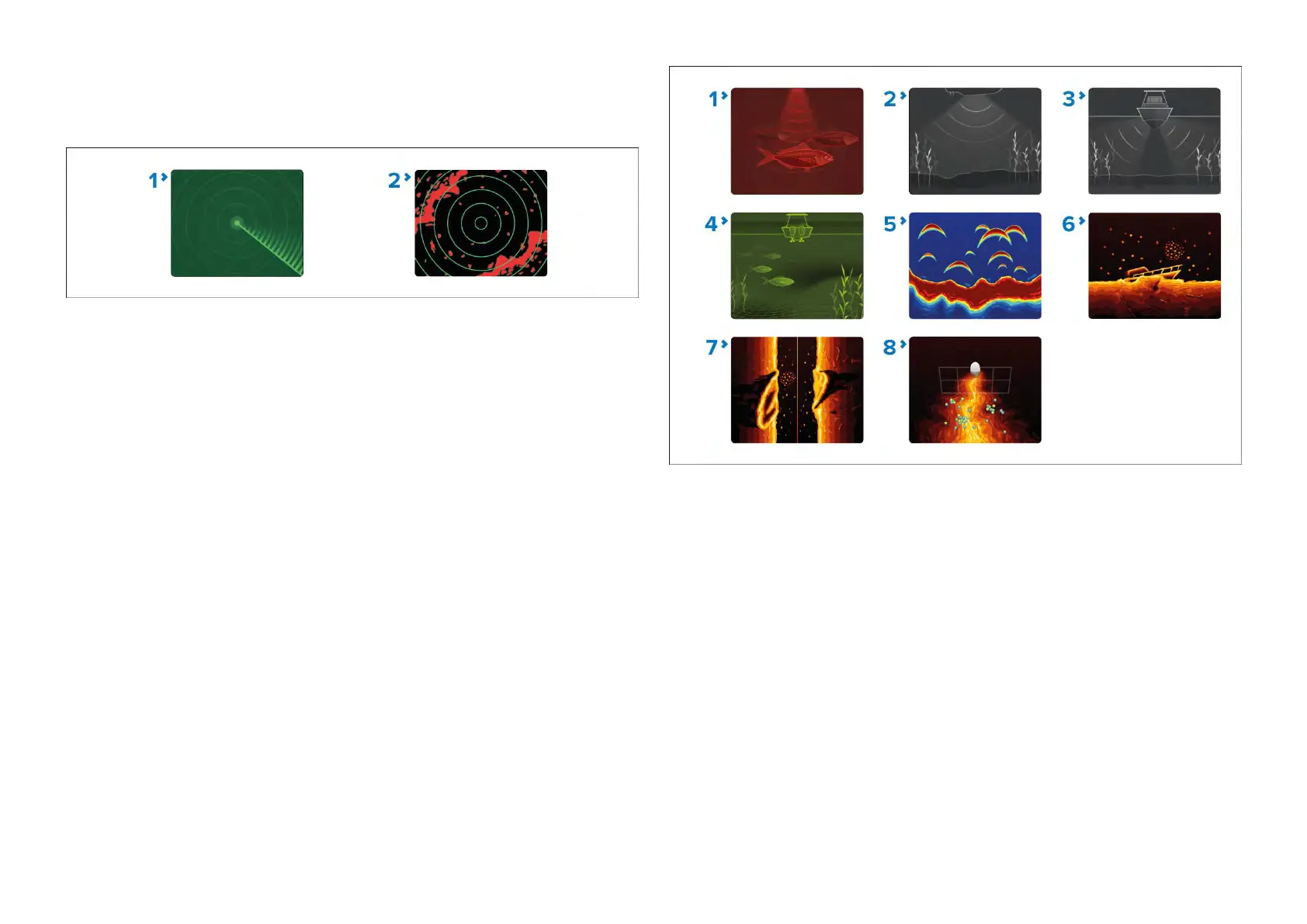

ThefollowingiconscanbeusedontheHomescreenforRadarapppages:
1.Classicradaricon—Thisistheiconusedforallradarapppageswhen
theHomescreeniconsaresettothedefaultClassicicons.
2.R adarmodeicon—Thisistheiconusedforallradarapppageswhen
theHomescreeniconsaresettoModeicons.
Fishfinderapp
TheFishfinderappusesaconnectedsonarmoduleandtransducertohelp
youtofindfishbybuildingupanunderwaterviewofbottomstructureand
targetsinthewatercolumncoveredbyyourtransducer.
TousetheFishfinderapp,acompatiblesonarmoduleandtransduceris
required.
Formoreinformation,referto:p.253—Fishfinderapp
Fishfinderappicons
ThefollowingiconscanbeusedontheHomescreenforFishfinderapp
pages:
1.Conicalchannelclassicicon—Thisistheiconusedforfishfinderapp
pageswhentheHomescreeniconsaresettothedefaultClassicicons
andtheselectedfishfinderchannelhasbeensettoaconicalbeam
traditionalorCHIRPsonarchannel.Theiconwilllookslightlydifferently
dependingonthechosenchannelfrequency
.Theiconwillalsochange
if[Zoom]modeisenabled.
2.DownVisionchannelclassicicon—Thisistheiconusedforfishfinder
apppageswhentheHomescreeniconsaresettothedefaultClassic
iconsandtheselectedfishfinderchannelhasbeensettoDownVision.
Theiconwillalsochangeif[Zoom]modeisenabled.
3.SideVisionchannelclassicicon—Thisistheiconusedforfishfinderapp
pageswhentheHomescreeniconsaresettothedefaultClassicicons
andtheselectedfishfinderchannelhasbeensettoSideVision.
4.3DVisionchannelclassicicon—Thisistheiconusedforfishfinderapp
pageswhentheHomescreeniconsaresettothedefaultClassicicons
andtheselectedfishfinderchannelhasbeensetto3DVision.
5.Conicalchannelmodeicon—Thisistheiconusedforfishfinderapp
pageswhentheHomescreeniconsaresettothedefaultModeicons
76

Raymarine LIGHTHOUSE 4 Specifications

General

Operating System	LightHouse 4
Touchscreen	Yes
Connectivity	NMEA2000, Ethernet, Wi-Fi
Chart Compatibility	Navionics, C-MAP
Display Size	Varies by model (e.g., 7", 9", 12", 16")
Display Resolution	Varies by model
Networking	Ethernet, Wi-Fi
GPS	Built-in
Radar Support	Yes, compatible with Raymarine radars
Sonar Support	Yes
Autopilot Integration	Yes, compatible with Raymarine autopilot systems
Weather Data	Yes, via internet
Software Updates	Via Wi-Fi
