Theenginedialanditscontentsareuniquetotheenginepageandcannot
bereproducedonotherdatapages.Theenginedialcannotberemovedor
hidden.
Dataitems1,2,9and10canbecustomized.Dataitems3and7canbe
hiddenifdesired.
Multienginepagee

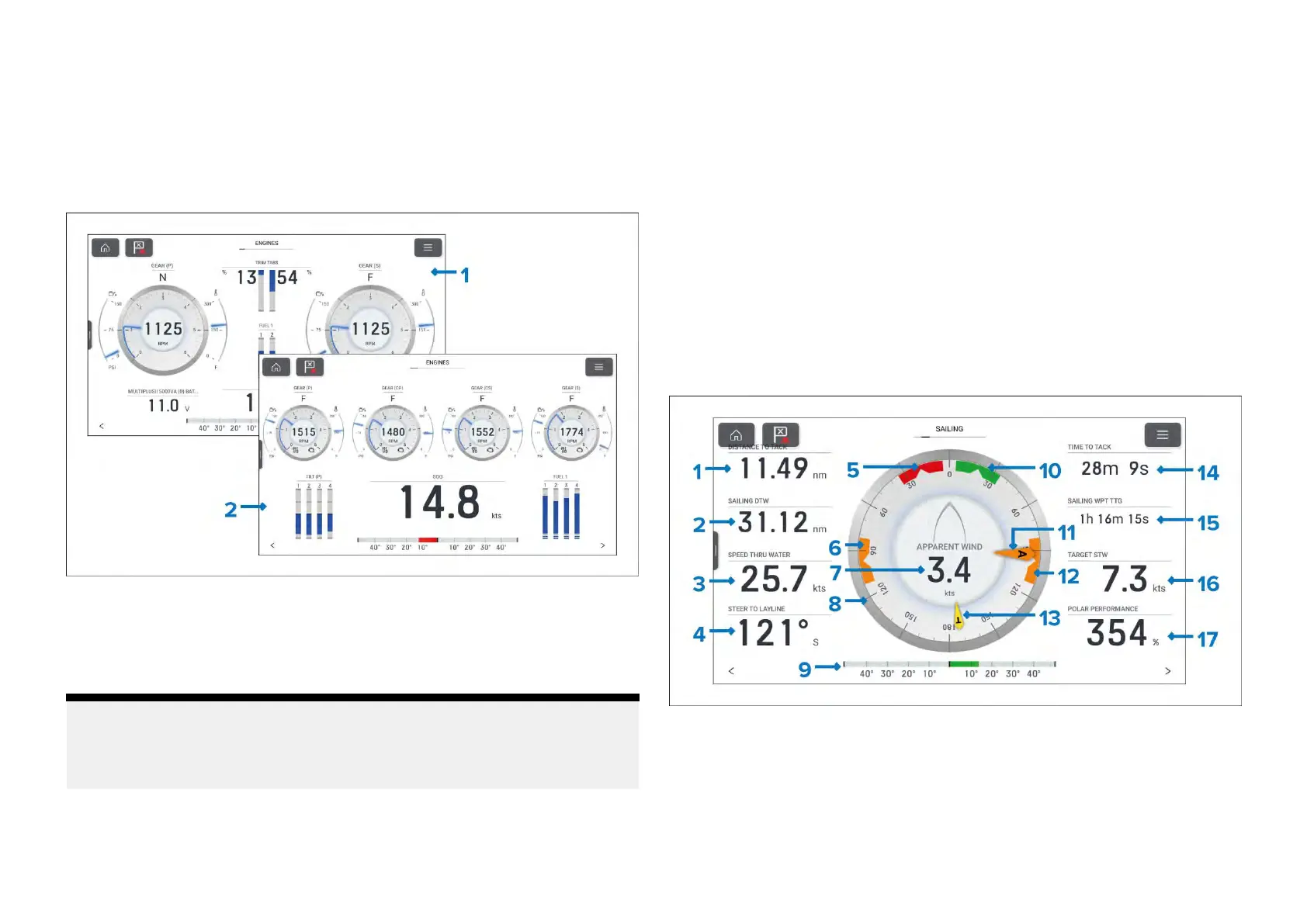

xamples
1.2enginepagee xample.
2.4enginepageexample
WhentheMFDhasbeenconfiguredwithmorethan1enginethepagelayout
anddataischangedappropriatelyforthenumberofenginesupto5.
Note:
Thenumberofenginesdisplayedontheenginepagecanonlybechanged
byperformingafactoryresetandchoosingadifferentnumberofengines
atthestartupwizard.
22.5Sailingpage
ThesailingdatapageisavailablewhentheMFDhasbeenconfiguredtouse
theSailingboatingactivityduringtheinitialMFDstartupwizard.Thesailing
pageincludesdatarelevanttosailingandincludesagraphicalsailingdial.
Theapparentwinddialisthedefaultdialdisplayedonthesailingpage
.
Whenthe[Sailperformance]settinghasbeenconfigureddynamicwindangle
targetswillbedisplayed.Thesailperformancesettingcanbeconfiguredfrom
the[Boatdetails]menu:[Homescreen>Boatdetails>Sailperformance].
Ifthe[Sailperformance]settinghasnotbeenconfiguredthenclosehauled
angleindicatorsaredisplayedinsteadofwindangletargets.
ThesailingpagecanbeusedincombinationwiththeLaylinesfeature
availableinthechartapptooptimizeyoursailingperformance.Fordetails
aboutthelaylinefeaturesreferto:p.220—Laylines
Example—Sailingpagewithapparentwindsailingdial
1.DISTANCETOTACK—Distancetogobeforeperformingatack.
2.SAILINGDTW—DistanceT oWaypoint(currentdestinationwaypoint
orgotolocation).
3.SPEEDTHRUWATER—Currentvesselspeedreceivedfromspeed
transducer.
4.STEERTOLAYLINE—Headingtosteertolayline.
Dashboardapp
335
