Thedataitemsonthesingledataandbidatapagescanbecustomized.
22.
12Generatorspage
WhenthedisplaydetectsgeneratorswhichtransmitsupportedNMEA2000
PGNs,apre-configuredgeneratorpagewillbeavailableintheDashboard
app.
Typically,ageneratorisconnectedtothedisplay’sSea Talkng®/NMEA2000
networkviathegeneratormanufacturer’sNMEA2000interface/gateway.Ifa
gatewayisused,ensurethatit’srunninganappropriatesoftwareversion—
refertothegeneratormanufacturer.
Thegeneratorpagedisplaysdataforthefirst2detectedgenerators.Forthe
displayofdataformorethan2generators,adigitalswitchingsolutionis
recommended.
Forinformationoncompatibleinterfaces,refertoyourgenerator’s
manufacturer.
DetailsofdetectedgeneratorsareavailableintheGeneratorconfiguration
page.Fordetails,referto:p.98—Generatorconfiguration
Examplepageforsinglegenerator
TheexampleprovidedbelowshowsdataprovidedbyaFischerPanada
generator,connectedtothedisplay’sSeaTalkng®/NMEA2000networkvia
aFischerPanadaCommunicationInterfaceFP-CANtoNMEA2000,(Part
number:0031409),runninggatewaysoftwareversion2v11orlater.

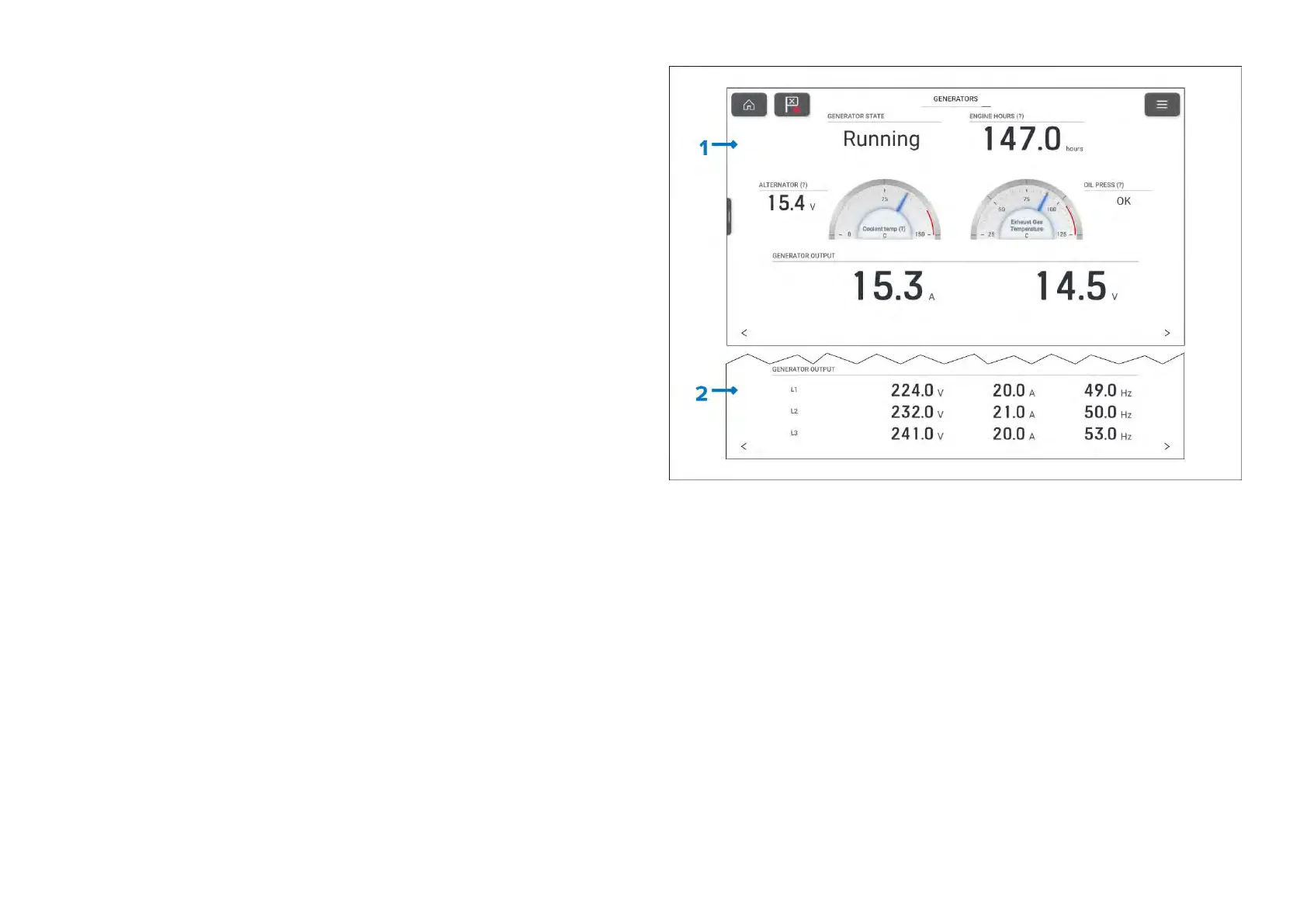

1.ExamplegeneratorpageforDCgenerator.
2.Examplegeneratoroutputdatafora3phaseACgenerator.
Thepre-configuredgeneratorpagecontainsthefollowingdataitems:
•Generatorstate(PGN127514)
•Enginehours(PGN127489)
•Alternatorvoltage(PGN127489)
•Coolanttemperature(PGN127489)
•Exhaustgastemperature(PGN130316)
•Oilpressurestate(PGN127489)
DCgeneratorsalsoincludethefollowingdataitems:
•Outputvoltage(PGN127751)
•Outputcurrent(PGN127571)
ACgeneratorsincludethefollowingdataitemsforupto3phases:
•Outputvoltage(PGN127747,PGN127748,PGN127749)
Dashboardapp
341
