12.3.2 L2 TLB Arrays
The level 1 MMUs are backed up by a unified level 2 MMU that translates both instruction and
data addresses. Like each L1 MMU, the L2 MMU consists of two TLB arrays:
• TLB1: a 16-entry, fully associative array that supports nine (e500v1) or eleven (e500v2)
page sizes.
• TLB0: a 256-entry, 2-way (e500v1) or 512-entry, 4-way (e500 v2) set associative array that
supports only 4-Kbyte page sizes.

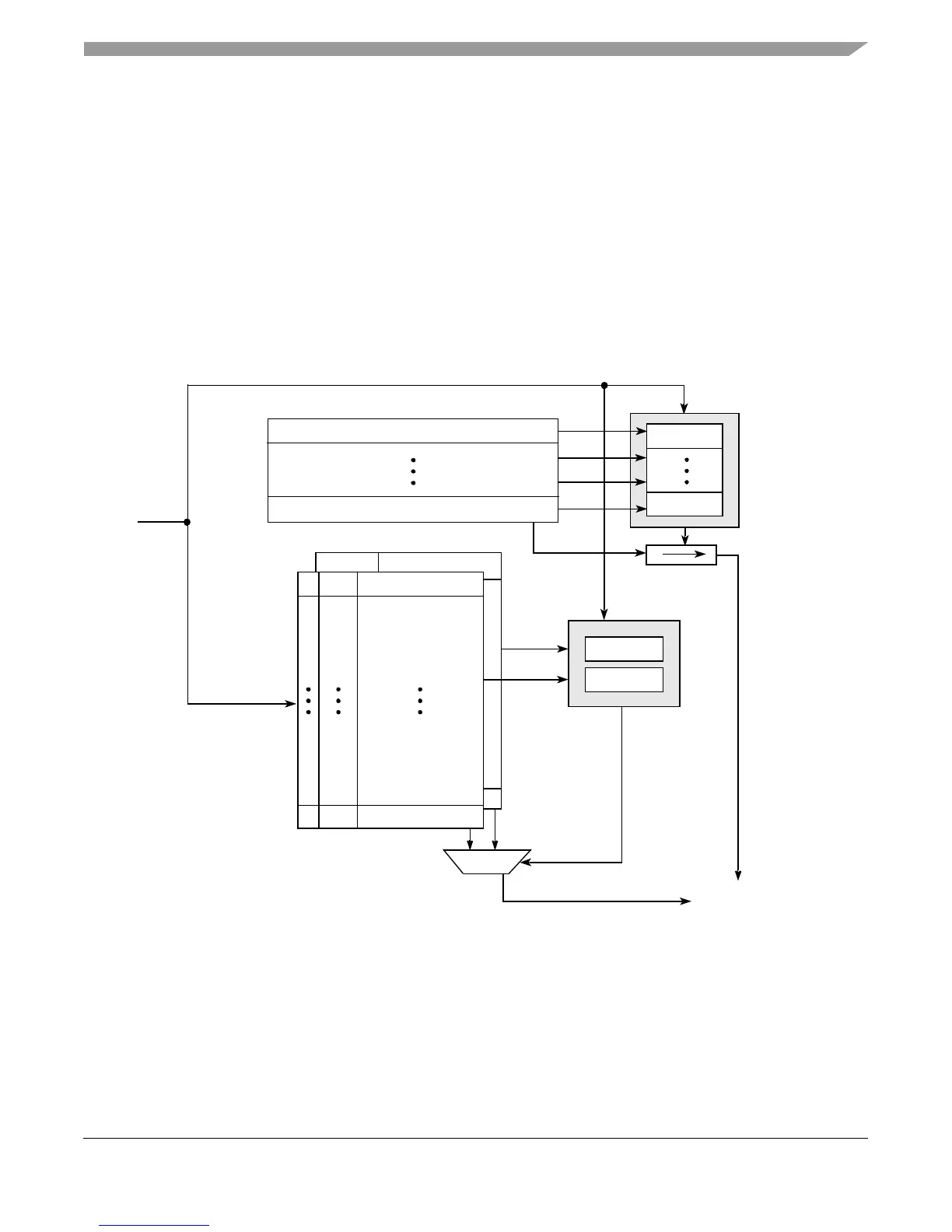

The two L2 TLBs on the e500v1, which are the only TLBs accessible to the software, are shown
in Figure 12-6.
