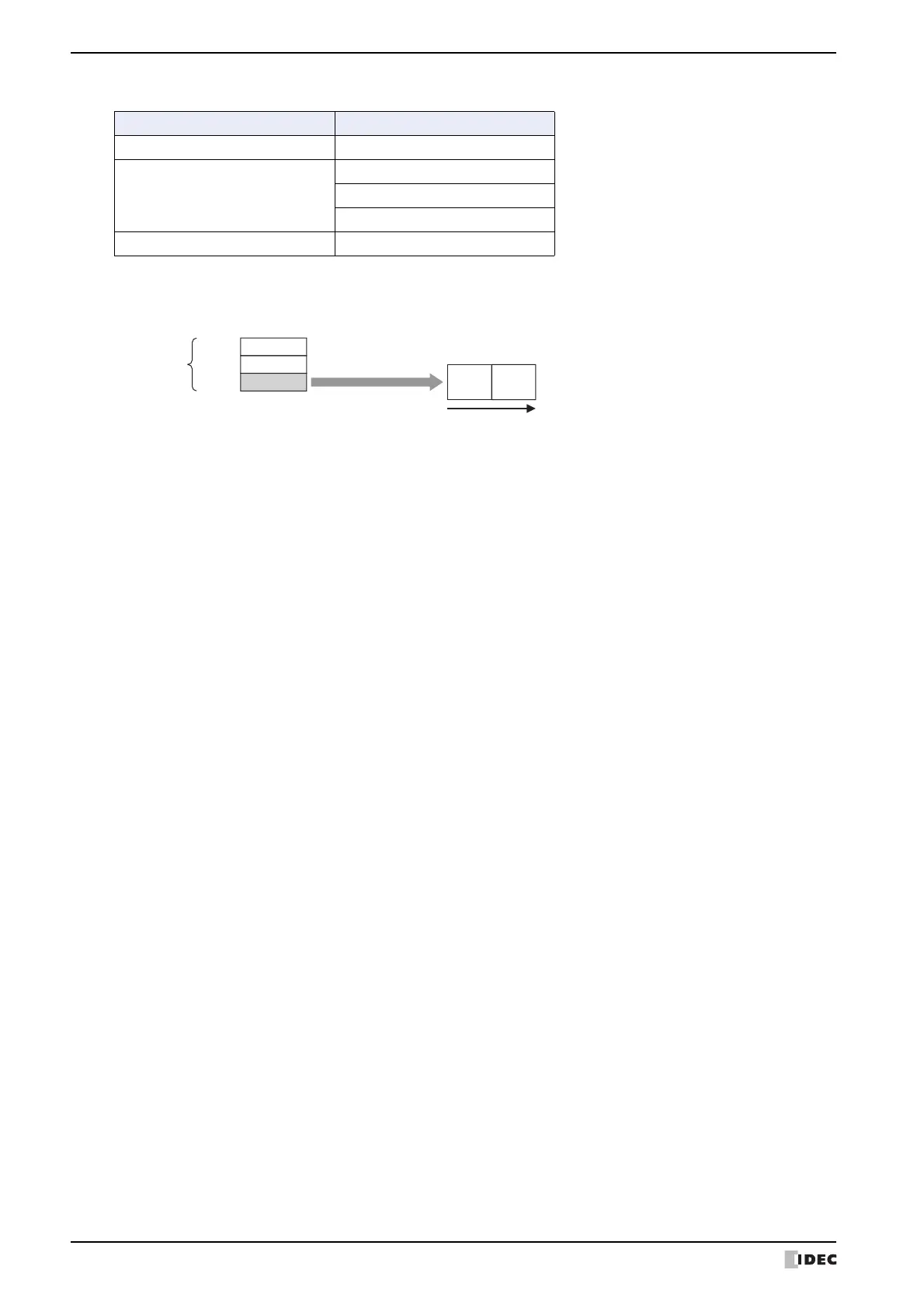

Example: Transmission command for Registering Constant (Hexadecimal) data
When the trigger condition is satisfied, the data of the Index No. according to the value of device is transmitted.
When the LDR100 value is 3
Item Setting
Number of Registering Constants 3
Registering Constants
Index No. 1: 1234
Index No. 2: 5678
Index No. 3: 2537
Index Device LDR100
1234h1:
5678h2:
2537h3:
Index Device
LDR100=3
DataIndex No.
Number of
Registering
Constants: 3
Transmission data
25h 37h
Order of transmission
