1 Creating WindO/I-NV3 Project Data
3-10 SmartAXIS Touch User's Manual

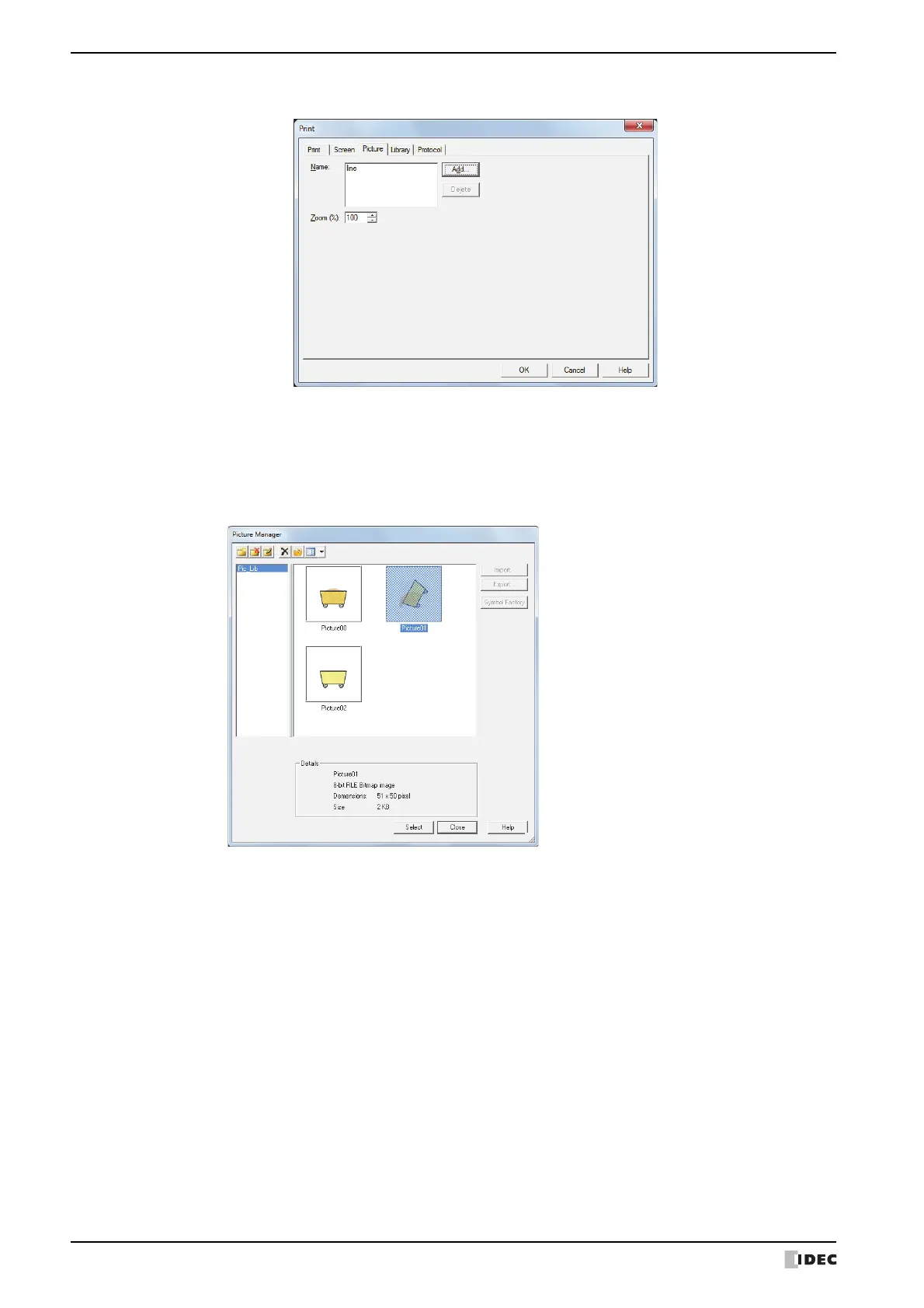

● Picture Tab
■ Name
Shows a list of selected drawing object names.
■ Zoom
Prints the picture at the specified magnification (20% to 400%).
Add: Adds a drawing object to the list.
Click this button to display Picture Manager. Select a picture, and then click Select to add it to the
list.
Delete: Deletes a picture from the list.
Select the picture name, and then click this button.
