SmartAXIS Touch User's Manual 3-75
4 Special Functions
3
Project

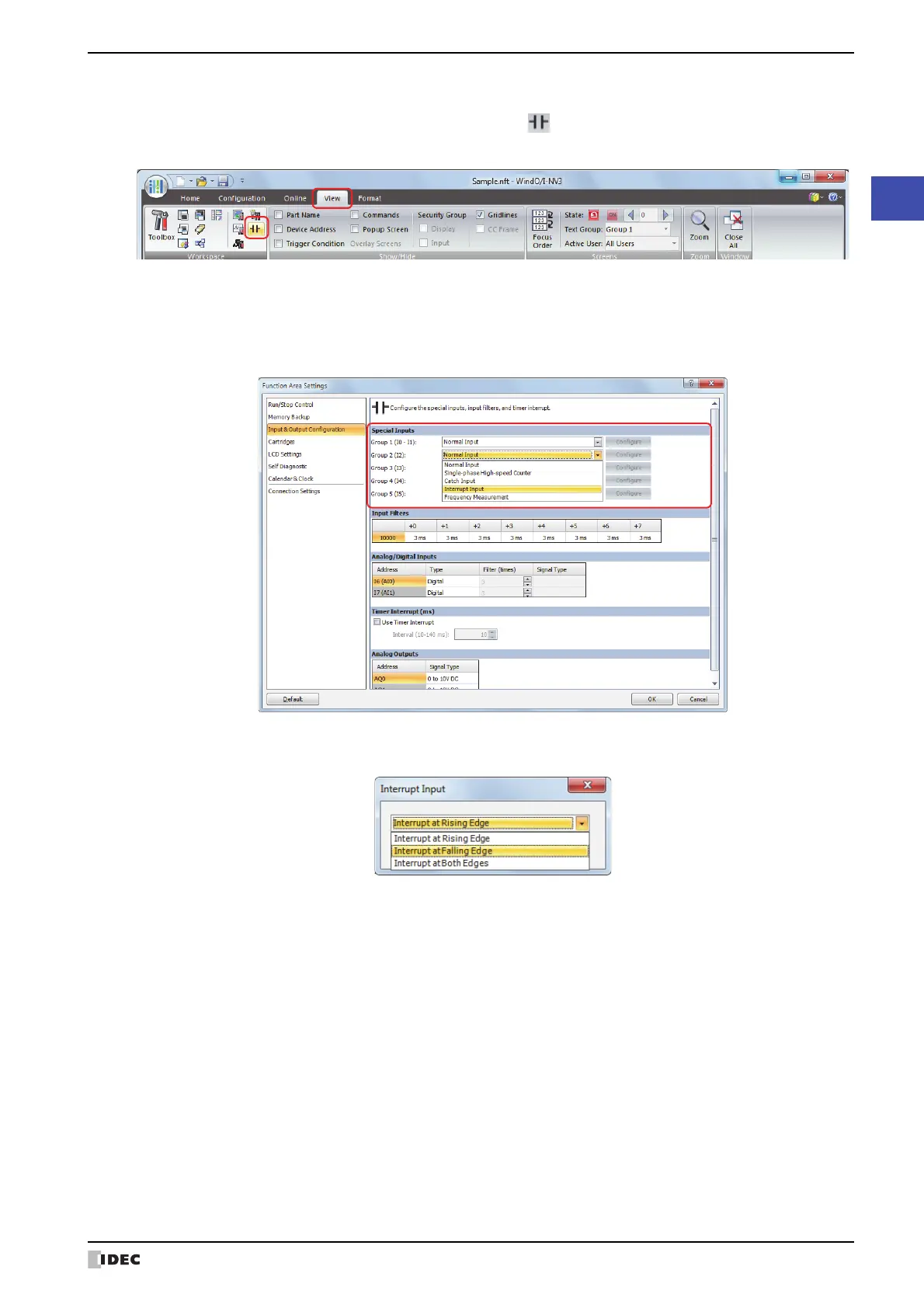

● Procedure
1
On the WindO/I-NV3 View tab, in the Workspace group, click (Control Function).
WindLDR starts.
2 On the WindLDR Configuration tab, in the Function Area Settings group, click Input & Output Configuration.
The Function Area Settings dialog box is displayed.
3 Select Interrupt Input in the Groups 1 through 6 pull-down list boxes.
The Interrupt Input dialog box is displayed.
4 Select Interrupt Input Rising Edge, Interrupt Input Falling Edge or Interrupt Both Edges in the pull-down
list, and then click OK.
5 Click OK.
This concludes configuring the settings.
