SmartAXIS Touch User's Manual 3-83
4 Special Functions
3
Project

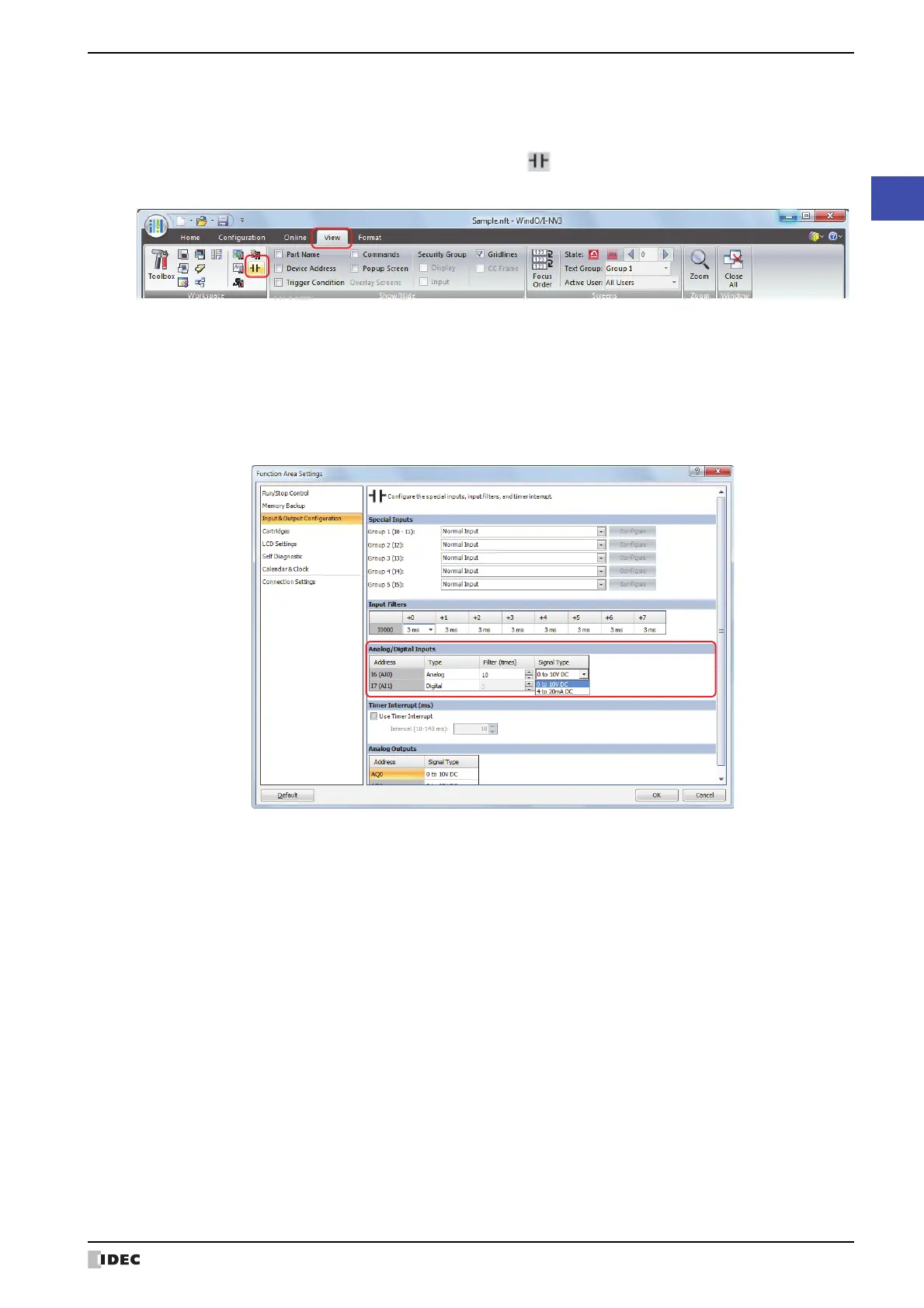

● Procedure
To use analog input, you must configure the Function Area Settings tab and download the ladder program or FBD
program to the Touch.
1 On the WindO/I-NV3 View tab, in the Workspace group, click (Control Function).
WindLDR starts.
2 On the WindLDR Configuration tab, in the Function Area Settings group, click Input & Output Configuration.
The Function Area Settings dialog box is displayed.
3 Under Type for the external input to use as an analog input, select Analog.
4 Under Filter (times), specify the number of times to filter, and under Signal Type, select 0 to 10V DC or
4to20mA DC.
Click Default to set all the external inputs to digital.
5 Click OK.
This concludes configuring the settings.
