IDEC SmartAXIS Touch FT1A Series

SmartAXIS Touch User's Manual 3-89
4 Special Functions
3
Project
Type Number Configuration
The type, number of analog inputs or outputs, and operation modes by analog cartridge type number are as follows.
●

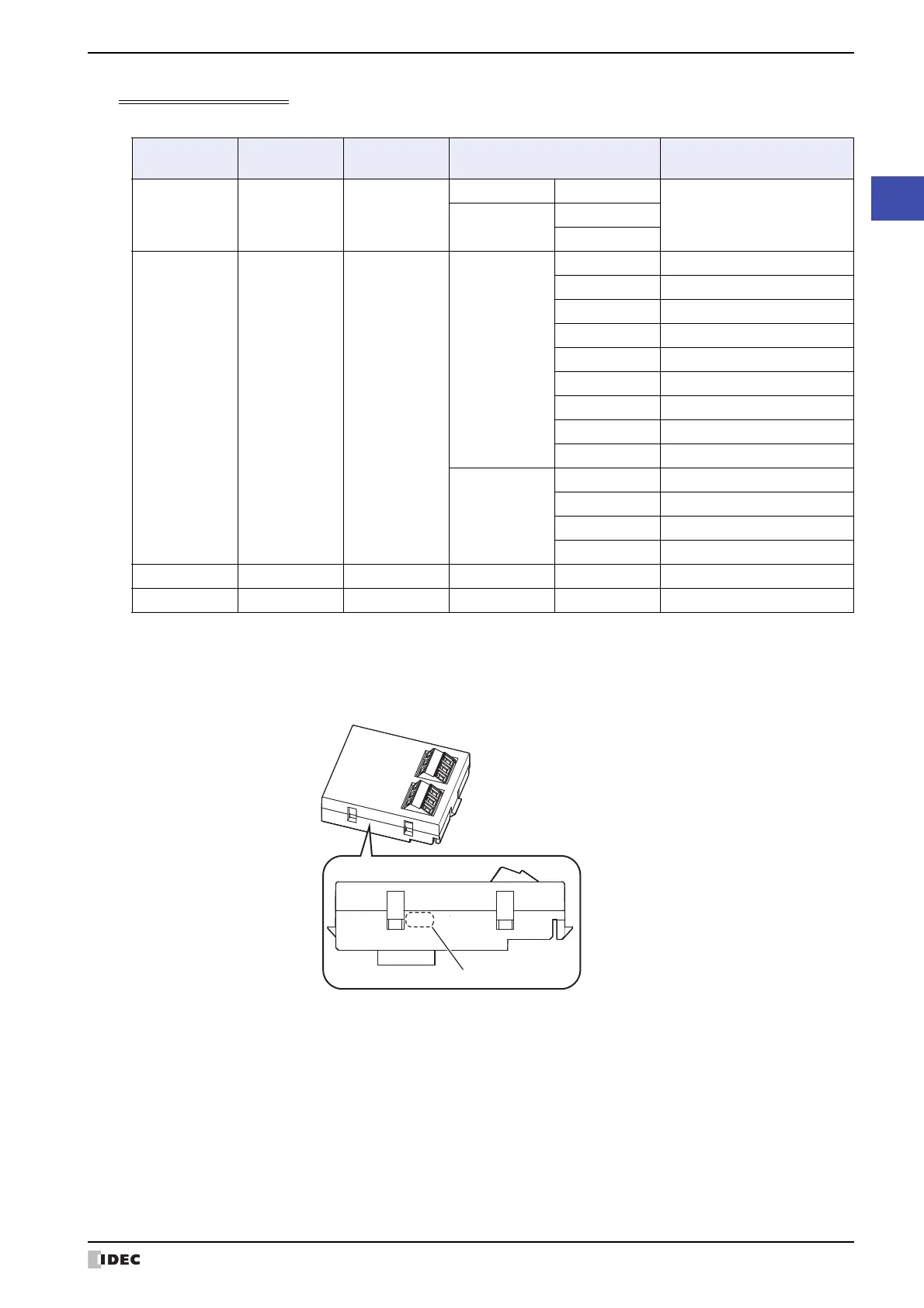

Checking the Version Number
The analog cartridge version number is printed on the side of the analog cartridge in the location in the following
diagram. The performance and functionality of the analog cartridge will differ by its version, so check the version
number before use.
Type No. Type
Number of
points
Operation mode Digital Resolution
FC6A-PJ2A Analog input 2 points
Voltage 0 to 10V DC
4,096 increments (12bit)
Current
0 to 20 mA
4 to 20 mA
FC6A-PJ2CP Analog input 2 points
Thermocouple
Type K 15,000 increments (14bit)
Type J 12,000 increments (14bit)
Type R 17,600 increments (15bit)
Type S 17,600 increments (15bit)
Type B 18,200 increments (15bit)
Type E 10,000 increments (14bit)
Type T 6,000 increments (13bit)
Type N 15,000 increments (14bit)
Type C 23,150 increments (15bit)
Resistance
thermometer
(RTD)
Pt100 10,500 increments (14bit)
Pt1000 8,000 increments (13bit)
Ni100 2,400 increments (12bit)
Ni1000 2,400 increments (12bit)
FC6A-PK2AV Analog output 2 points Voltage 0 to 10V DC 4,096 increments (12bit)
FC6A-PK2AW Analog output 2 points Current 4 to 20 mA 4,096 increments (12bit)
LOT No.14XS12525
MADE IN JAPAN
V100
LOT No.xxxxxxxxx
MADE IN JAPAN
V100
Version Number
