SmartAXIS Touch User's Manual 3-95
4 Special Functions
3
Project

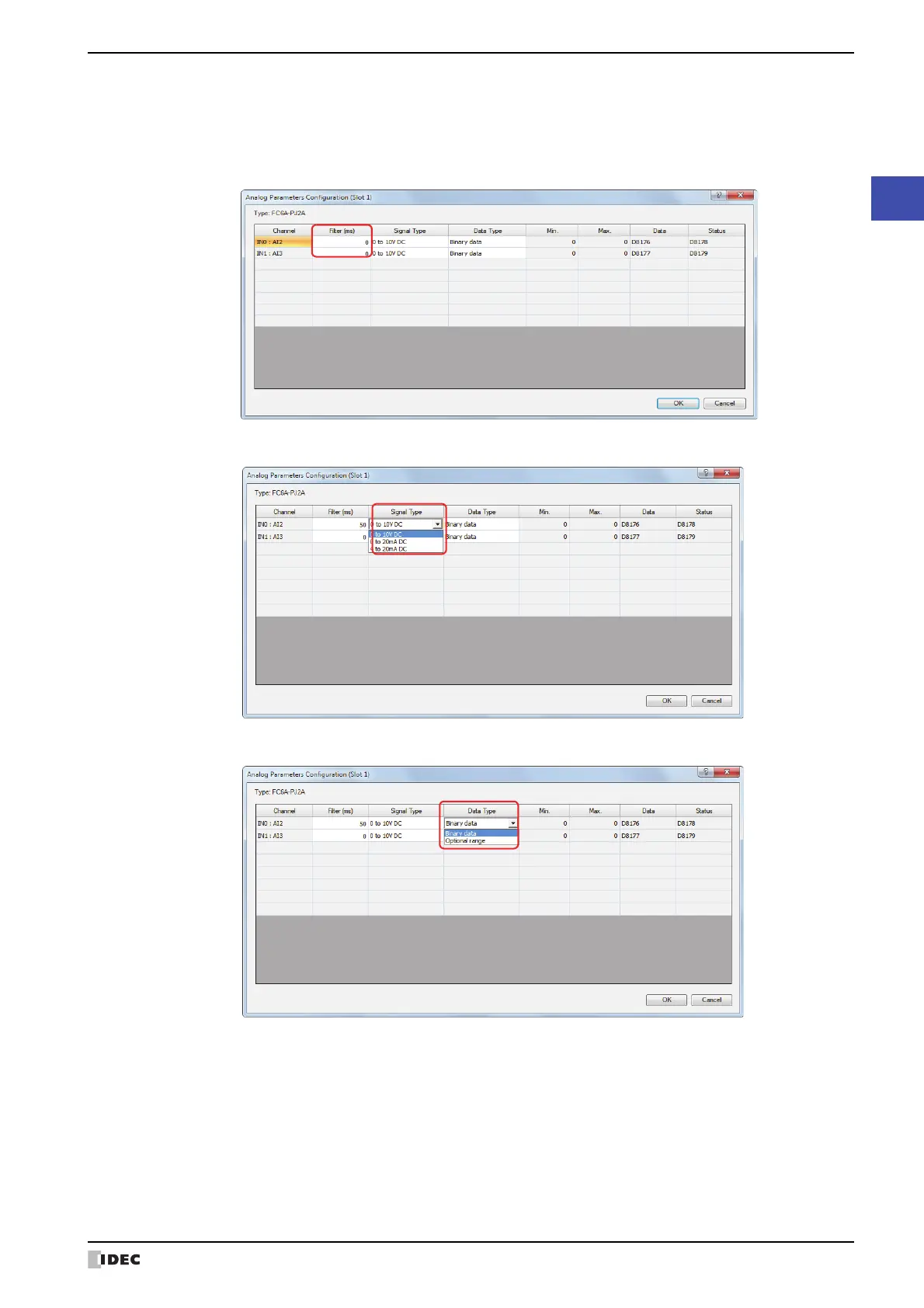

4 Click Configure for the Slot where the analog cartridge is connected.
The Analog Parameters Configuration dialog is displayed. All of the parameters for the analog cartridge can be
configured in this dialog box. The detailed settings vary based on the type of analog cartridge.
5 Enter the filter preset value.
6 Under Signal Type, select analog input type for each channel.
7 Under Data Type, select the data type for each channel.
To Next Page
