IDEC SmartAXIS Touch FT1A Series User Manual

SmartAXIS Touch User's Manual 3-105
4 Special Functions
3
Project
● Procedure
To perform remote I/O communication using a connection, you must configure the Function Area Settings tab and
download the ladder program or FBD program to the Touch.

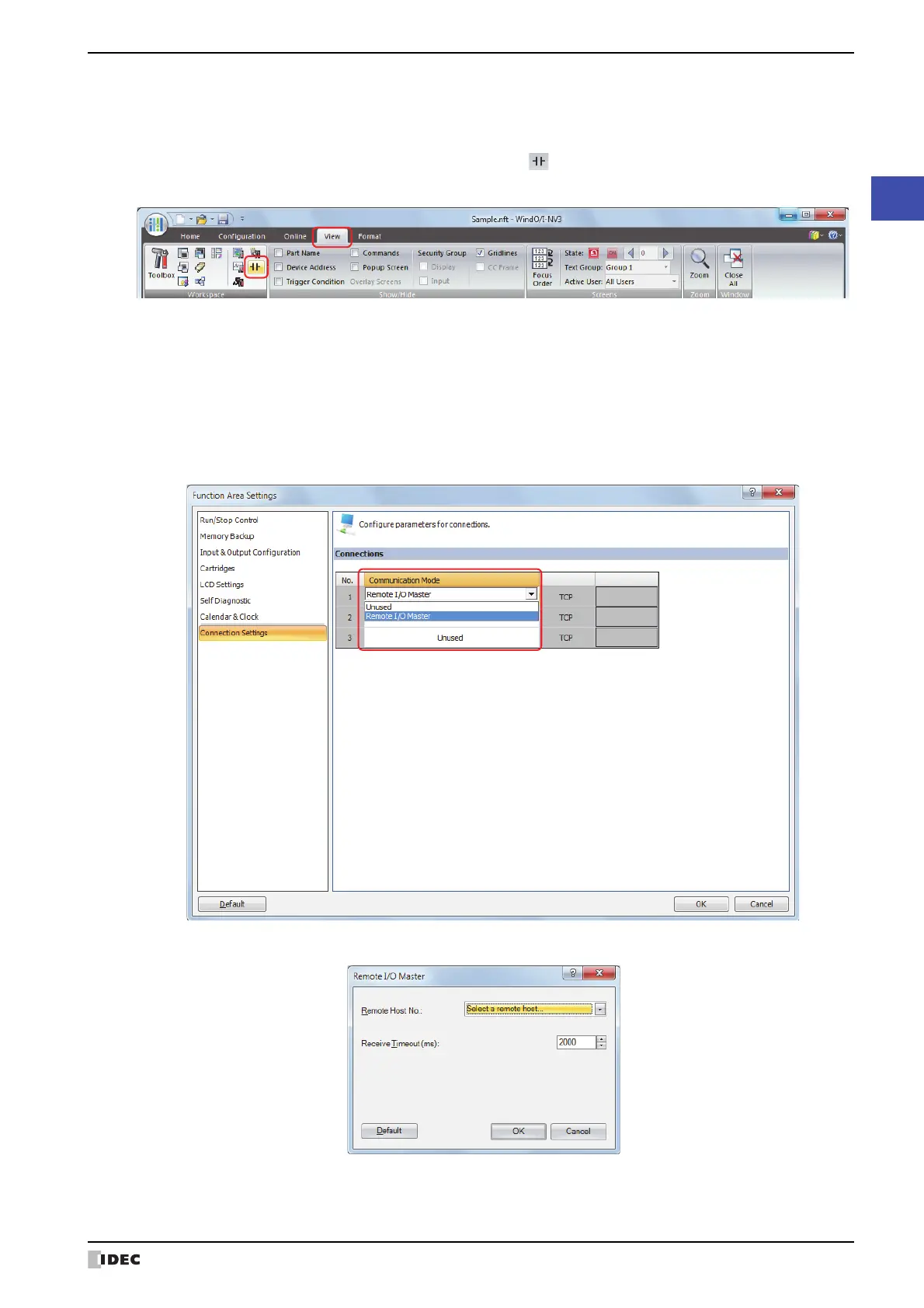

1 On the WindO/I-NV3 View tab, in the Workspace group, click (Control Function).
WindLDR starts.
2 On the WindLDR Configuration tab, in the Function Area Settings group, click Connection Settings.
The Function Area Settings dialog box is displayed.
3 Select Communication Mode for the connection to use.
The settings dialog box for the set communication mode is displayed.
As an example here, Communication Mode is set to Remote I/O Master.
Configure the communication mode allocated to a maximum of three connections.
Set connections that are not used to Unused.
4 Specify the parameters.
5 Click OK.
This concludes configuring the settings.
