5 Multi-Button
7-74 SmartAXIS Touch User’s Manual

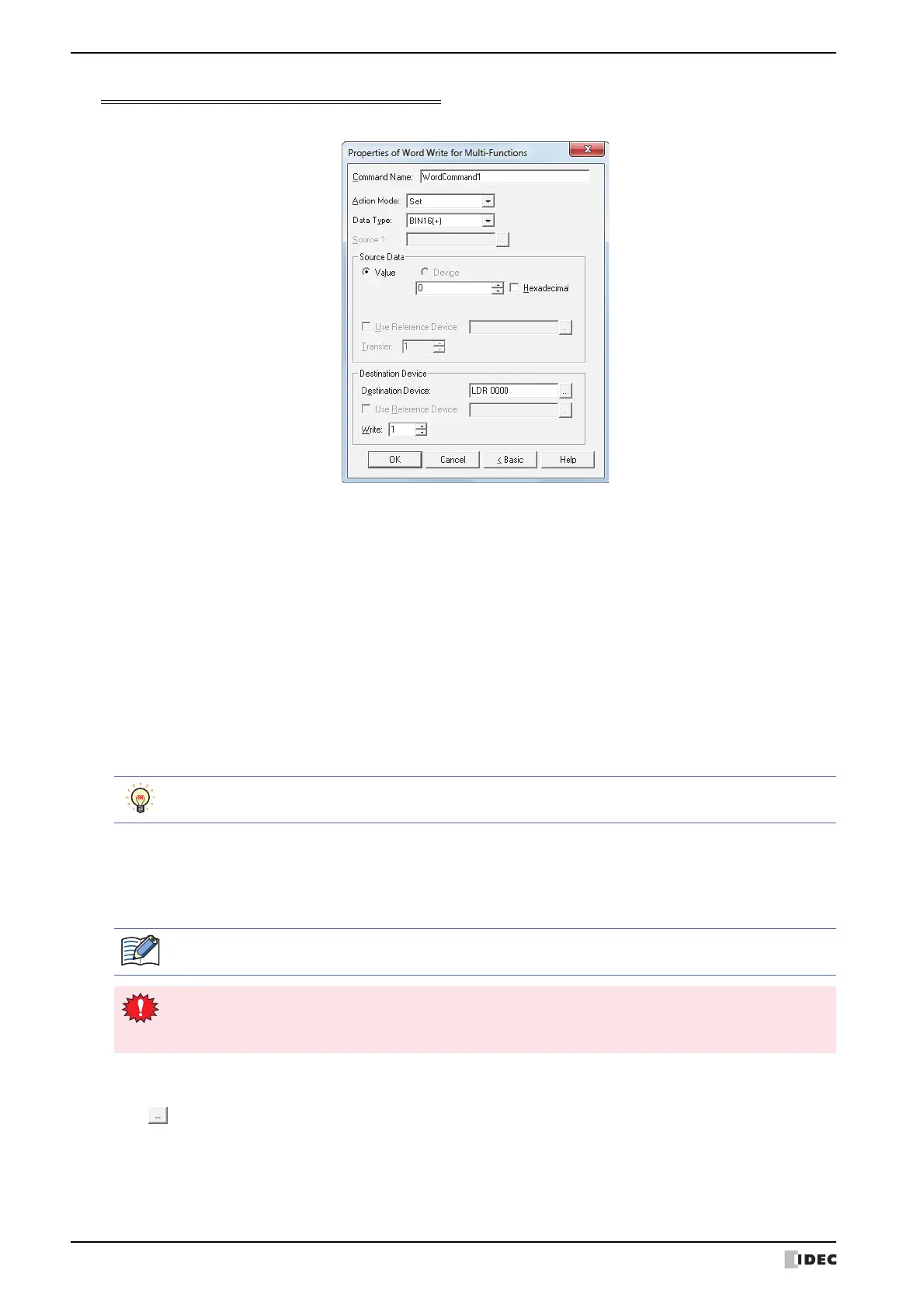

Properties of Word Write for Multi-Functions dialog box
Sets the Word Write command for the Multi-Button.
■ Command Name
Enter a name for the command. The maximum number is 20 characters.
■ Action Mode
Select the behavior of the Multi-Button from the following:
■ Data Type
Select the data type handled by the operation selected for Action Mode.
For details, refer to Chapter 2 “1.2 Available Data” on page 2-2.
BIN16(+) and BIN32(+) can only be set if Action Mode is set to OR, AND, or XOR.
■ Source 1
Specify the source word device.
Click to display the Device Address Settings dialog box. For the device address configuration procedure, refer to
Chapter 2 “5.1 Device Address Settings” on page 2-62.
This setting is enabled only if Action Mode is set to Add, Sub, Multi, Div, Mod, OR, AND, or XOR.
Set: Pressing the button writes a constant value to a word device.
Move: Pressing the button writes the value in the source device to the destination word device.
Set ON & OFF Data: Pressing the button writes the constant value of ON data to a word device.
Releasing the button writes the constant value of OFF data to a word device.
Add, Sub, Multi, Div, Mod, OR, AND, XOR:
Pressing the button performs arithmetic on the value in a reference device and a constant
value or the value in a device address and writes the result to a word device.
For details about the Action Mode, refer to “Action Mode” on page 7-21. However, Set ON & OFF Data
for the Multi-Button has the same function as Momentary for the Word Button.
BIN16(+) and BIN32(+) can only be set if Action Mode is set to Move. Because the number of devices
to transfer is specified in Advanced mode, you do not need to set Data Type.
If BCD4, BCD8 or float32 is selected and the arithmetic data contains a value inexpressible in BCD, a 1 is
written to System Area 2 Arithmetic error bit (address+2, bit 5) and an error message is displayed.
For details, refer to Chapter 3 “Arithmetic error” on page 3-25.
To Next Page
