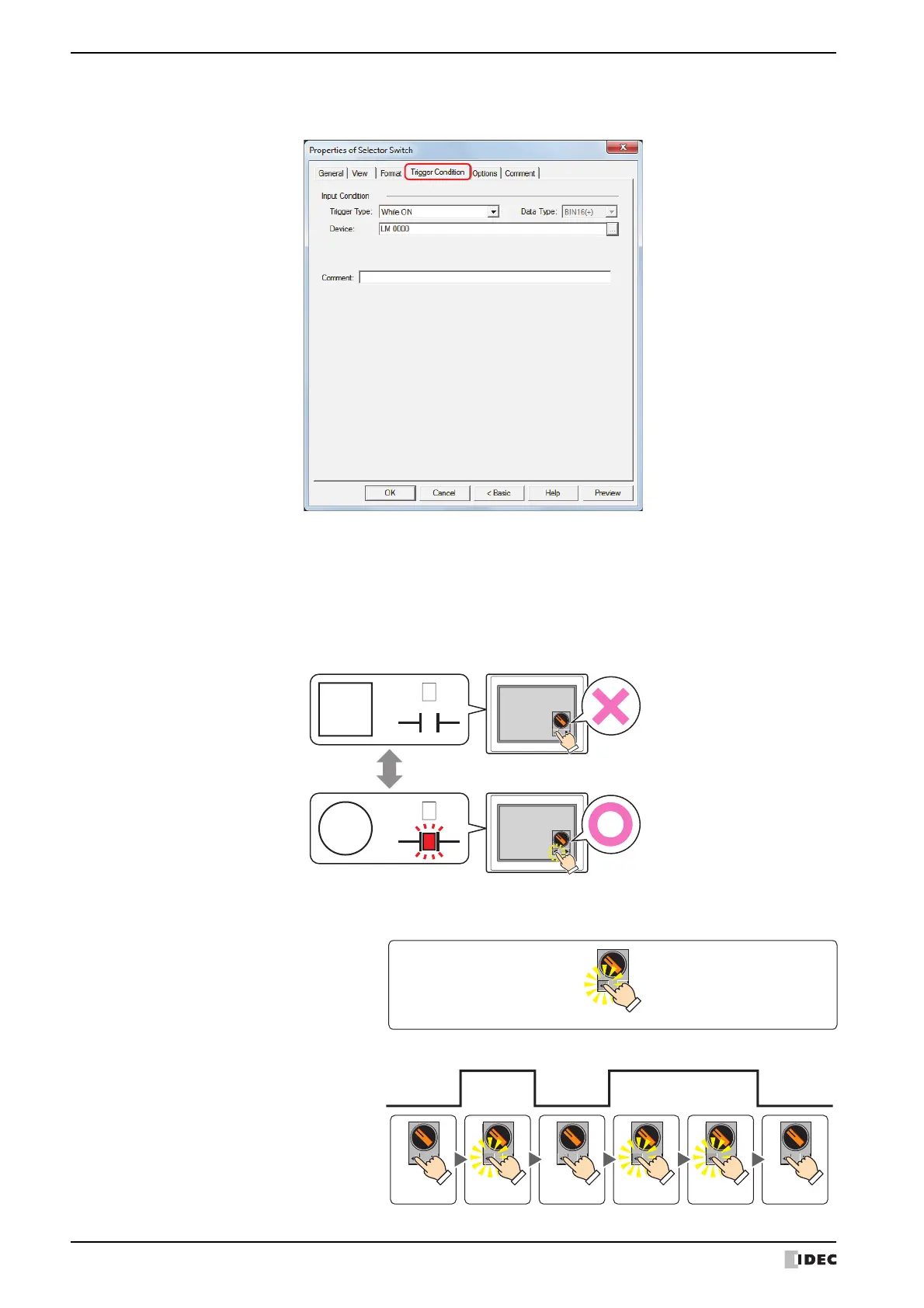

● Trigger Condition Tab
The Trigger Condition tab is displayed in Advanced mode.
■ Input Condition
The Selector Switch is enabled and operational while the condition is satisfied. The Selector Switch is disabled and not
operational while the condition is not satisfied.
Example: When Trigger Type is While ON and Device is LM0
While LM0 is 0, the condition is not satisfied and the Selector Switch is not operational.
While LM0 is 1, the condition is satisfied and the Selector Switch is operational.
Trigger Type: Selects the condition to enable the Selector Switch from the following.
Always Enabled:
The Selector Switch is always enabled.
While ON: Enables the Selector Switch when the value of device is 1.
LM0
:
Touch
0
LM0
:
1
Button
Does not
operate
Button
Operates
Condition
Not
satisfied
Condition
Satisfied
Selector Switch
state
Enabled
1
0
Value of Device
Disabled
Selector
Switch state
Disabled DisabledEnabledEnabledEnabled
