1 Pilot Lamps
8-10 SmartAXIS Touch User’s Manual
■ Data Type
Selects the type of data handled by the conditional expression for the on condition.
This option can only be configured if While satisfying the condition is selected for Trigger Type.
For details, refer to Chapter 2 “1.2 Available Data” on page 2-2.
■ Device
Specifies the bit device or bit of the word device to serve as the on condition.
This option can only be configured when While ON or While OFF is selected for Trigger Type.
Click to display the Device Address Settings dialog box. For the device address configuration procedure, refer to
Chapter 2 “5.1 Device Address Settings” on page 2-62.
■ Condition
Specifies the conditional expression for the on condition.
This option can only be configured when While satisfying the condition is selected for Trigger Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expression configuration procedure,
refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-64.
■ Comment
Enter a comment for the on condition. The maximum number is 80 characters.

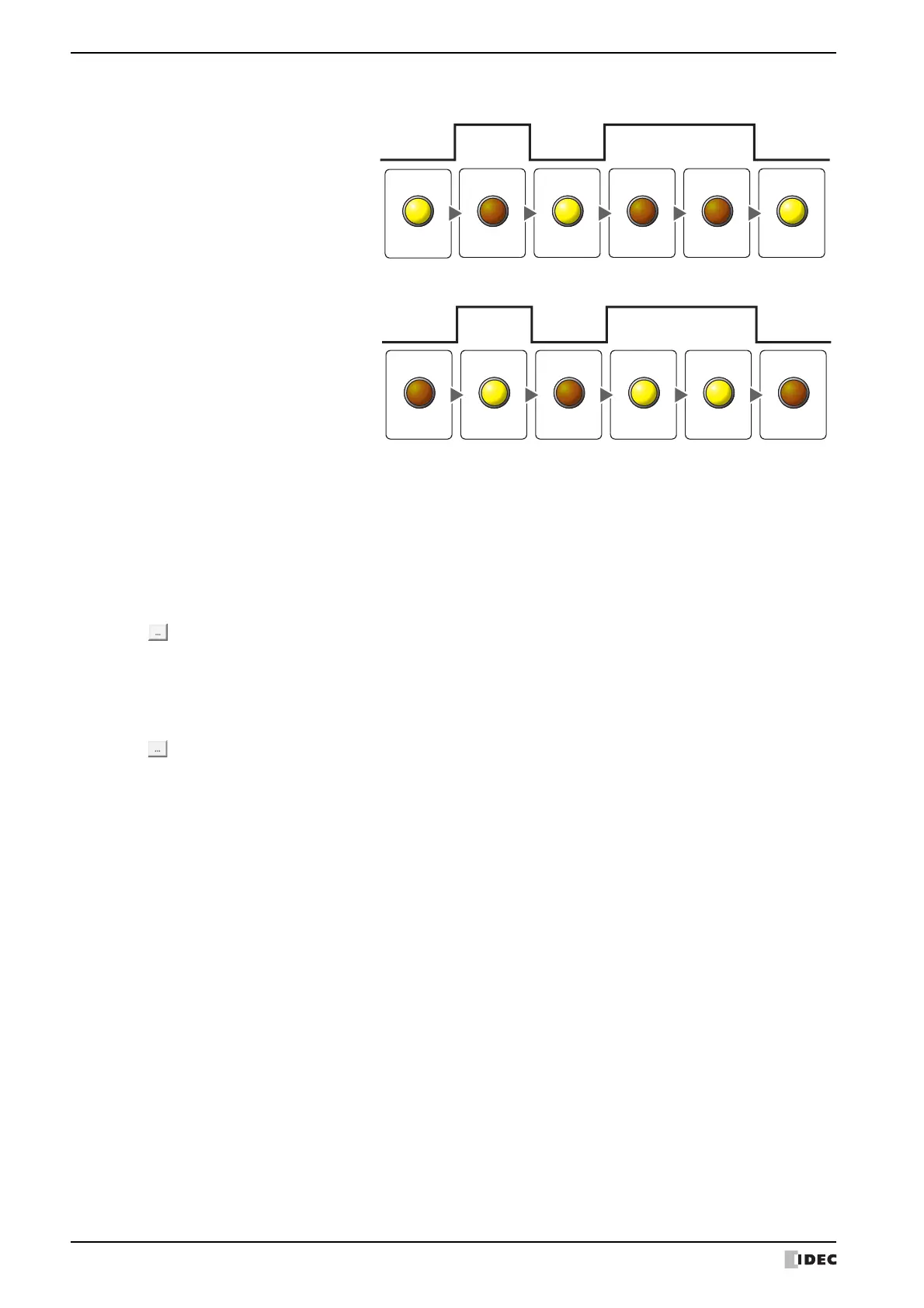

While OFF: Turns on the Pilot Lamp when the value of device is 0.
While satisfying the condition
: Turns on the Pilot Lamp when the condition is satisfied.
1
0
On On OnOff Off Off
Pilot Lamp status
Value of Device
On OffOff OffOn On
Pilot Lamp status
Condition
Satisfied
Not satisfied
To Next Page
