1 Numerical Input
9-10 SmartAXIS Touch User’s Manual

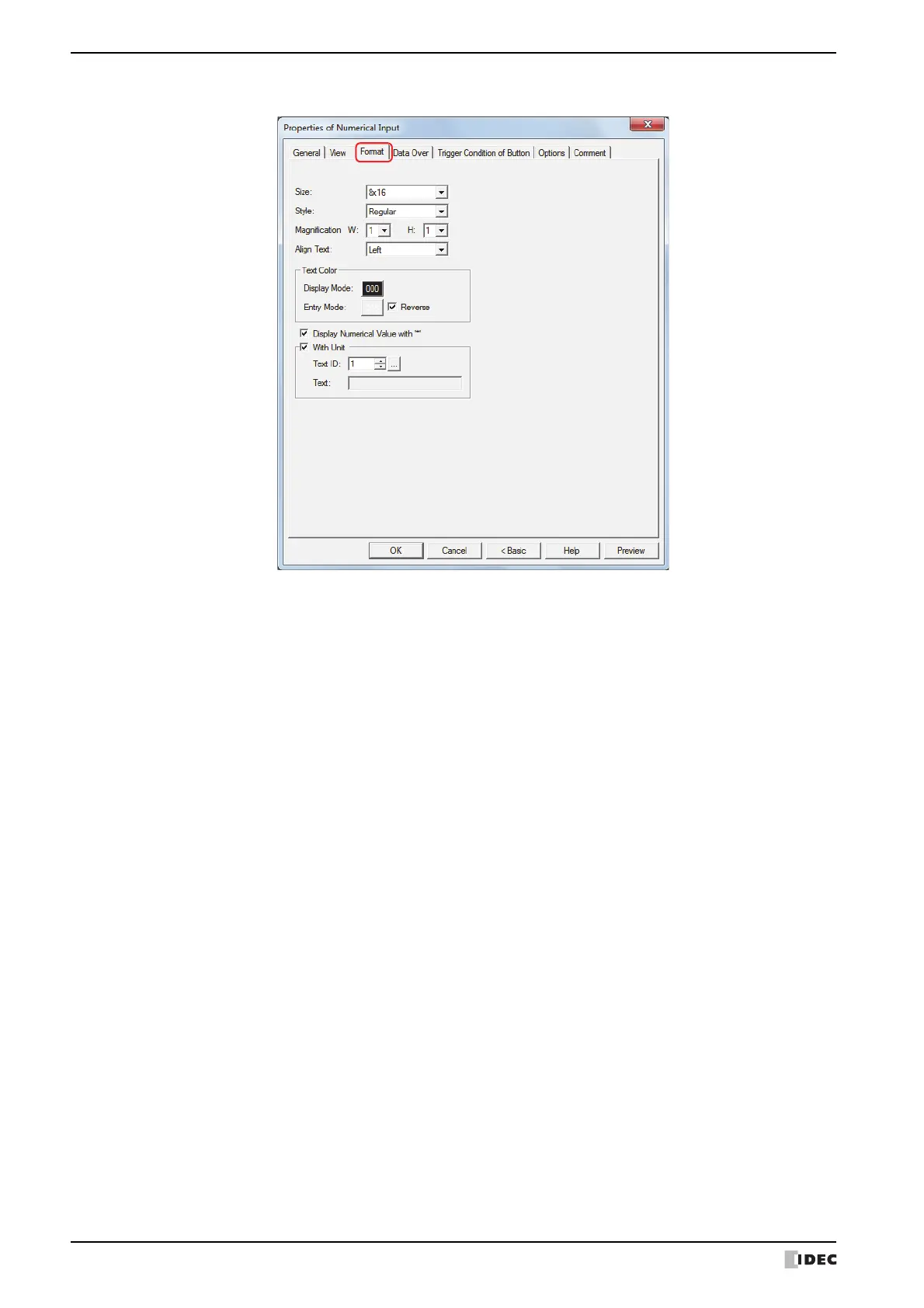

● Format Tab
■ Size
Selects the text size as 8x16 or 16x16.
■ Style
Selects Regular or Bold for text style.
■ Magnification
■ Align Text
Selects the text alignment in the horizontal direction from the following.
Left, Center, Right
For details, refer to Appendix “5 Text Alignment” on page A-5.
■ Text Color
Selects the color of displayed text (color: 256 colors, monochrome: 8 shades).
Click the Color button to display the Color Palette. Select a color from the Color Palette.
This option can configure the text color in display mode and in entry mode. However, for Entry Mode text color can
be set only when the Reverse check box is cleared.
■ Reverse
Select this check box to reverse the text color and plate color during display mode when in entry mode.
W, H: Selects text magnification (0.5, 1 to 8).
