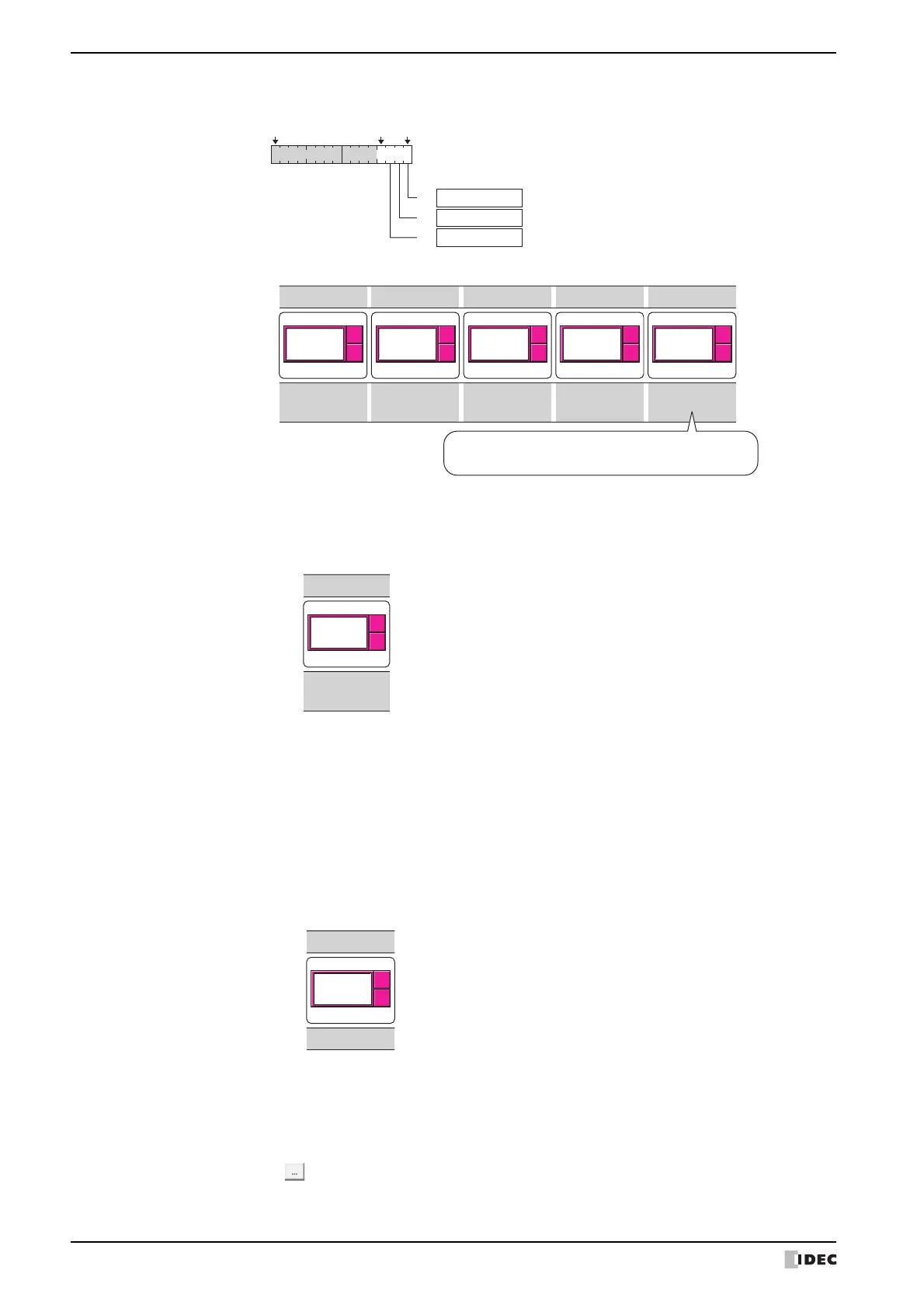

Example: When New Message List is selected and the bits of Trigger Device D0 are allocated to the following
messages.
The messages are displayed according to the state of the bits.
■ Display Type
Selects whether or not to simultaneously display multiple messages.
■ Monitor Number of Displayed messages
Select this check box to count the number of displayed messages.
This option can only be configured when the New Message List check box is selected.
Trigger Device D0
bit15 bit0
bit3
ID1
Setting 1 : 100
ID2
ID3
Setting 2 : 200
Setting 3 : 300
Message
0001
Message to display
Trigger Device D0
bit state
0110 0101
0111
0000
Display ID1 Display ID2, ID3 Display ID1, ID3 No message
Action
Display ID1, ID2,
ID3
Setting 1 : 100
Pg. Up
Pg. Dwn
Pg. Up
Pg. Dwn
Setting 2 : 200
Setting 3 : 300
Pg. Up
Pg. Dwn
Setting 1 : 100
Setting 3 : 300
Pg. Up
Pg. Dwn
Setting 1 : 100
Setting 2 : 200
Setting 3 : 300
Pg. Up
Pg. Dwn
If all bits in the device are 0 or if a bit with no associated
message becomes 1, display nothing.
List: Simultaneously displays multiple messages.
Sort: Selects the display order when displaying multiple messages.
Old and New can only be configured when the Use Alarm Log Settings check box is selected.
Ascending: Sorts the list in alphabetic order from A to Z.
Descending: Sorts the list in alphabetic order from Z to A.
Old: Sorts the list in order from oldest to newest.
New: Sorts the list in order from newest to oldest.
One Line: Displays only a single message.
When multiple bits are 1, the message for the lowest order bit is displayed.
Message to display
Trigger Device D0
bit state
0111
Action
Display ID1, ID2,
ID3
Setting 1 : 100
Setting 2 : 200
Setting 3 : 300
Pg. Up
Pg. Dwn
0111
Message to display
Trigger Device D0
bit state
Display ID1
Action
Setting 1 : 100
Pg. Up
Pg. Dwn
(Destination device): Specifies the word device to write the number of displayed messages to.
Click to display the Device Address Settings dialog box. For the device address
configuration procedure, refer to Chapter 2 “5.1 Device Address Settings” on page 2-62.
