6 Alarm List Display
9
Data Displays

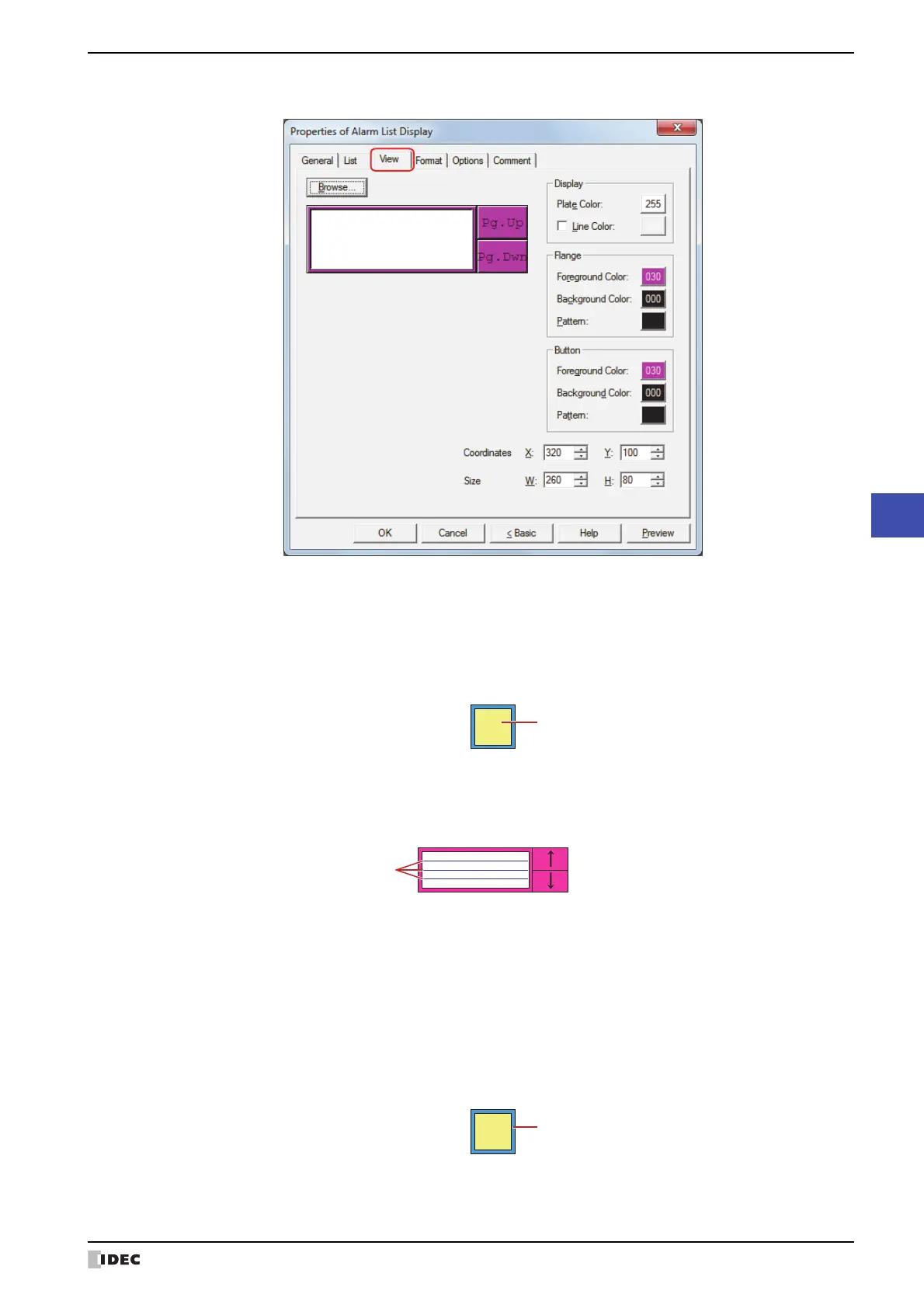

● View Tab
■ Browse
Select the type of graphic to represent the part from the list of graphics. Click this button to display the View Browser.
■ Plate Color
Selects the plate (color: 256 colors, monochrome: 8 shades).
Click the Color button to display the Color Palette. Select a color from the Color Palette.
■ Line Color
When lines are displayed, select the check box and select line color (color: 256 colors, monochrome: 8 shades).
Click the Color button to display the Color Palette. Select a color from the Color Palette.
■ Flange
Plate color
Lines
Foreground Color, Background Color:
Selects the foreground and background colors of the flange (color: 256 colors, monochrome:
8 shades).
Click the Color button to display the Color Palette. Select a color from the Color Palette.
Pattern: Selects a pattern for the flange.
Click the Pattern button to display the Pattern Palette. Select a pattern from the Pattern
Palette.
Flange
