SmartAXIS Touch User’s Manual 9-103
7 Alarm Log Display
9
Data Displays

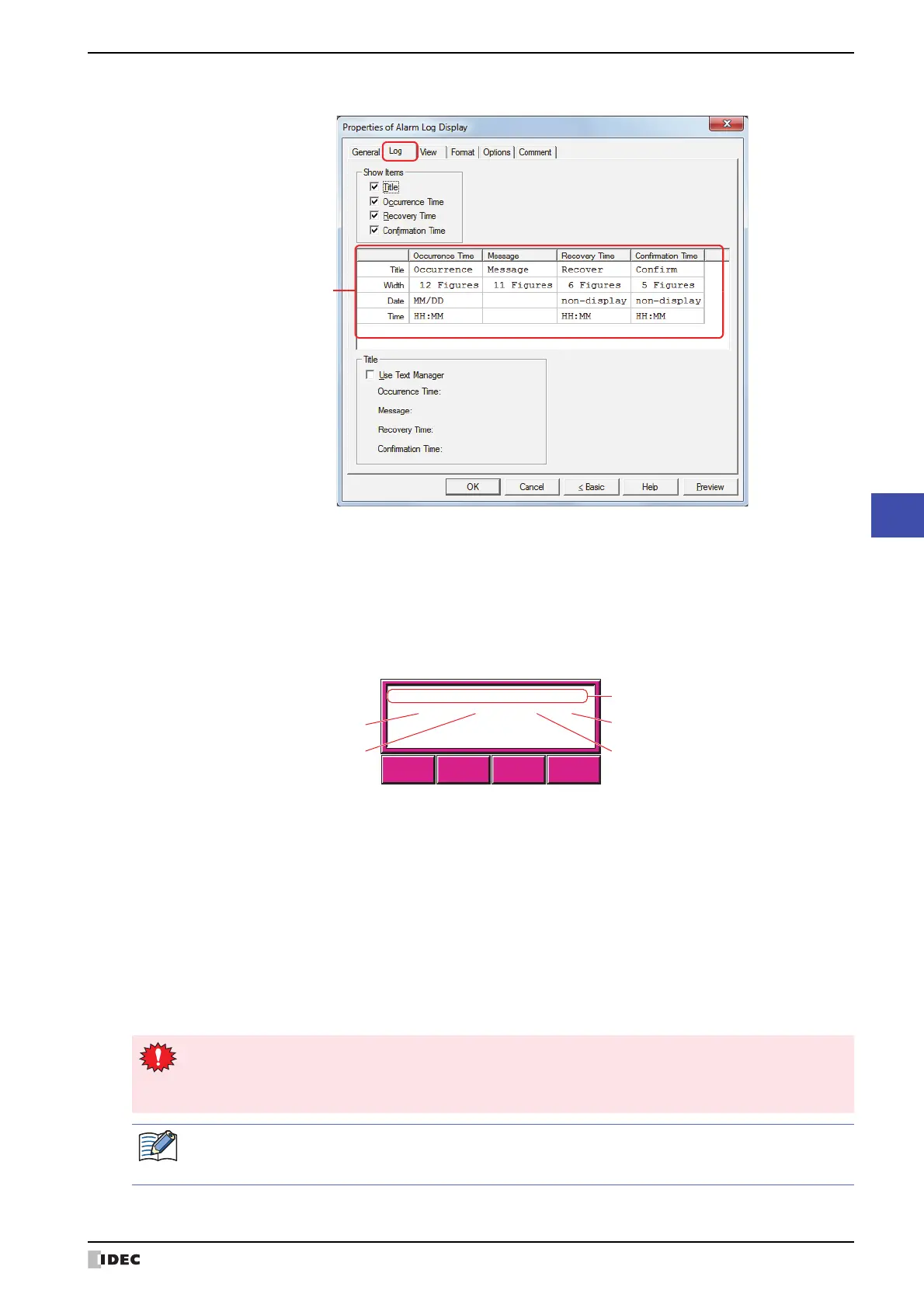

● Log Tab
■ Show Items
Select these check boxes for the items to display on the Alarm Log Display.
■ (Show items detailed settings)
Each of the show items selected by the check boxes under Show Items can be configured in detail here.
(Show items detailed settings)
Title: Shows the titles on the first line of the list.
Occurrence Time: Shows the time the alarm occurred.
Recovery Time: Shows the time the alarm was recovered from.
Confirmation Time: Shows the time the alarm was confirmed by pressing the key button CHECK.
Occurrence Message Recovered Confirmed
Fcs.Up Fcs.Dwn
Ref. REVERSE
12/01 12 : 00 Current fault 12 : 53 12 : 54
Title
Recovery time
Confirmation time
Message
Occurrence time
Title: Enter the titles for the items to display. The maximum number is 20 characters.
Double clicking the cell displays the Unicode Input dialog box. Enter the characters in the
Unicode Input dialog box, and then click OK.
Width: Specifies the number of characters to display (1 to 40). 1 is the width of a single-byte character,
2 is the width of a double-byte character.
Date: Selects the display type of the date from the following.
YY/MM/DD, MM/DD/YY, DD/MM/YY, MM/DD, DD/MM, non-display
Time: Selects the display type of the time from the following.
HH:MM, HH:MM:SS, non-display
• If the title contains a newline, the text after the newline is not displayed. However, if using a Windows
font for the selected text ID, all the characters are displayed.
• If the title contains a language not supported as standard by the OS, the characters may be garbled when
displaying the (Show items detailed settings). However, the downloaded data is correctly displayed.
• If you change the display type for Date or Time, the number for Width is automatically adjusted.
• The text color for Message changes according to the alarm state. The text color for Message is
configured by Occurred Color, Recovered Color, and Confirmed Color on the Format tab.
