■ Data Type
Selects the data type handled by the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
For details, refer to Chapter 2 “1.2 Available Data” on page 2-2.
■ Device
Specifies the bit device or bit of the word device to serve as condition.
Can only be set if While ON or While OFF is selected as Trigger Type.
Click to display the Device Address Settings dialog box. For the device address configuration procedure, refer to
Chapter 2 “5.1 Device Address Settings” on page 2-62.
■ Condition
Sets the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expression configuration procedure,
refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-64.
■ Comment
Enter a comment about trigger conditions. The maximum number is 80 characters.

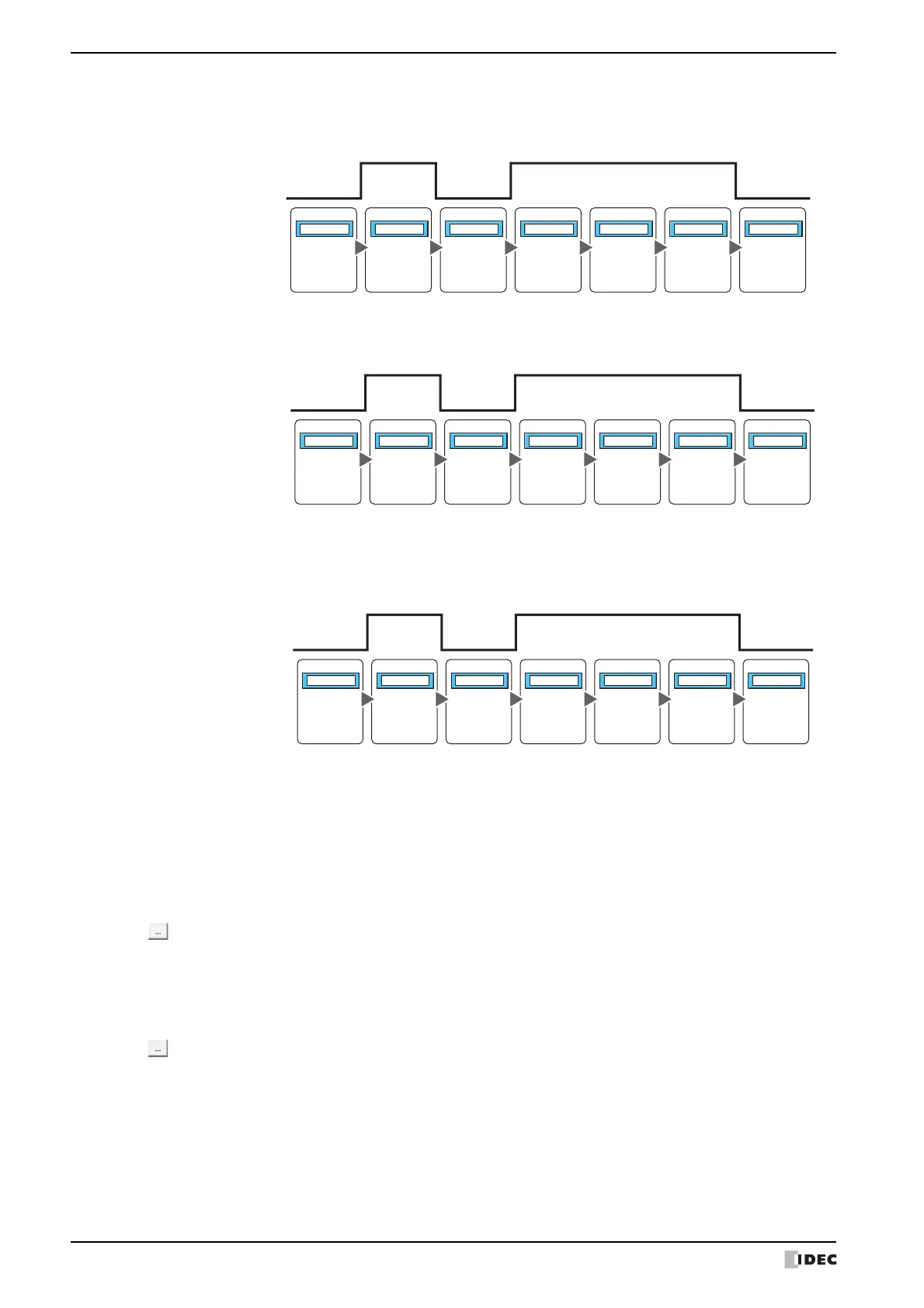

While ON: Enables the Calendar when the value of device is 1.
Example: When the Not show Calendar check box is cleared under While not satisfying the
condition
While OFF: Enables the Calendar when the value of device is 0.
Example: When the Not show Calendar check box is cleared under While not satisfying the
condition
While satisfying the condition:
Enables the Calendar when the condition is satisfied.
Example: When the Not show Calendar check box is cleared under While not satisfying the
condition
