SmartAXIS Touch User's Manual 2-27
1 WindO/I-NV3 Specifications
2
WindO/I-NV3 Basic Operations
● Managing Pictures
This section describes items and buttons in Picture Manager, Symbol Factory, and the Picture Name Setting dialog
box.

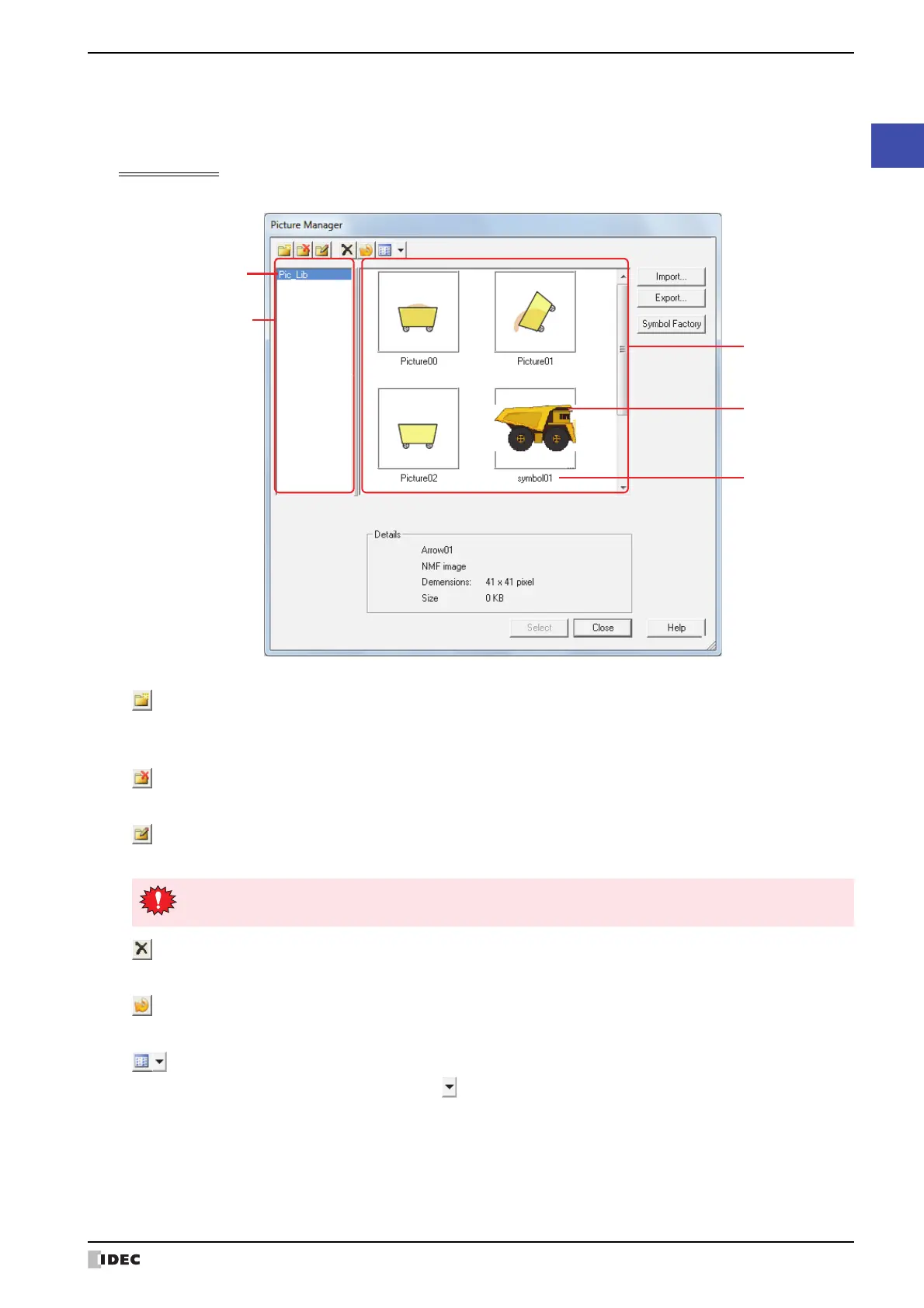

Picture Manager
Pictures used in pictures of part diagrams and drawings are managed using Picture Manager.
■ (Create New Category)
Creates a new category in the category list.
The default category name is "NewBook
n
" (
n
: Number).
■ (Delete Category)
Deletes a category from the category list.
■ (Rename Category)
Changes the name of the category selected in the category list. The maximum number is 256 characters.
■ (Delete)
Deletes the picture selected in the picture list. Pictures that are used in project or parts cannot be deleted.
■ (Reduce)
Deletes all the pictures not used in the project from the pictures saved in the picture list.
■ (View)
Change how items appear in the picture list. Click to select Thumbnails or Details.
(Category)
(Category list)
(Picture list)
(Image)
(Picture name)
You cannot use the following characters in the category name.
\ / : , ; * ? " < > |
To Next Page
