1 Bar Chart
10-14 SmartAXIS Touch User’s Manual
■ Data Type
Selects the data type handled by the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
For details, refer to Chapter 2 “1.2 Available Data” on page 2-2.
■ Device
Specifies the bit device or bit of the word device to serve as condition.
Can only be set if While ON or While OFF is selected as Trigger Type.
Click to display the Device Address Settings dialog box. For the device address configuration procedure, refer to
Chapter 2 “5.1 Device Address Settings” on page 2-62.
■ Condition
Sets the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expression configuration procedure,
refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-64.

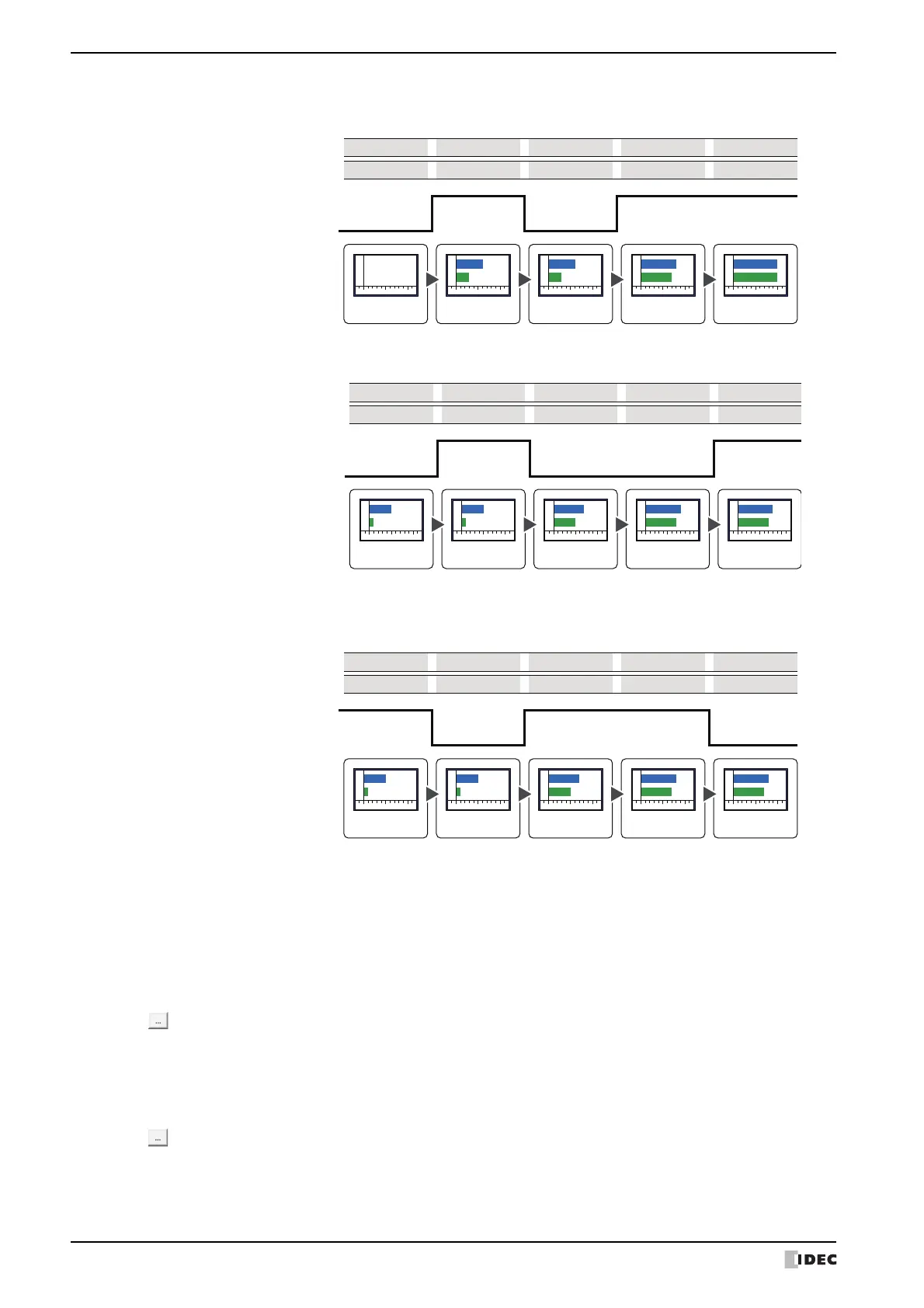

While ON: Enables the bar chart when the value of device is 1.
Example: When While not satisfying the condition is Not update Chart data
While OFF: Enables the bar chart when the value of device is 0.
Example: When While not satisfying the condition is Not update Chart data
While satisfying the condition:
Enables the bar chart when the condition is satisfied.
Example: When While not satisfying the condition is Not update Chart data
Value of Device
1
0
Ch1 data
50
Ch2 data
Display
10
Update
60
30
70
50
Update
80
70
Update
90
90
Do not update Do not update
100500 100500 100500 100500 100500
Value of Device
1
0
Update
Ch1 data
50
Ch2 data
Display
10
60
30
Update
70
50
Update
80
70
90
90
Do not update Do not update
100500 100500 100500 100500 100500
Update Do not update Do not update
Ch1 data
50
Ch2 data
Display
10
60
30
Update
70
50
Update
80
70
90
90
Condition
Satisfied
Not satisfied
100500 100500 100500 100500 100500
