2 Word Write Command
11-10 SmartAXIS Touch User’s Manual
■ Set
■ Move
■ Momentary
■ Add, Sub, Multi, Div, Mod, OR, AND, XOR
Writes a fixed value to the specified word device
when the trigger condition is satisfied.

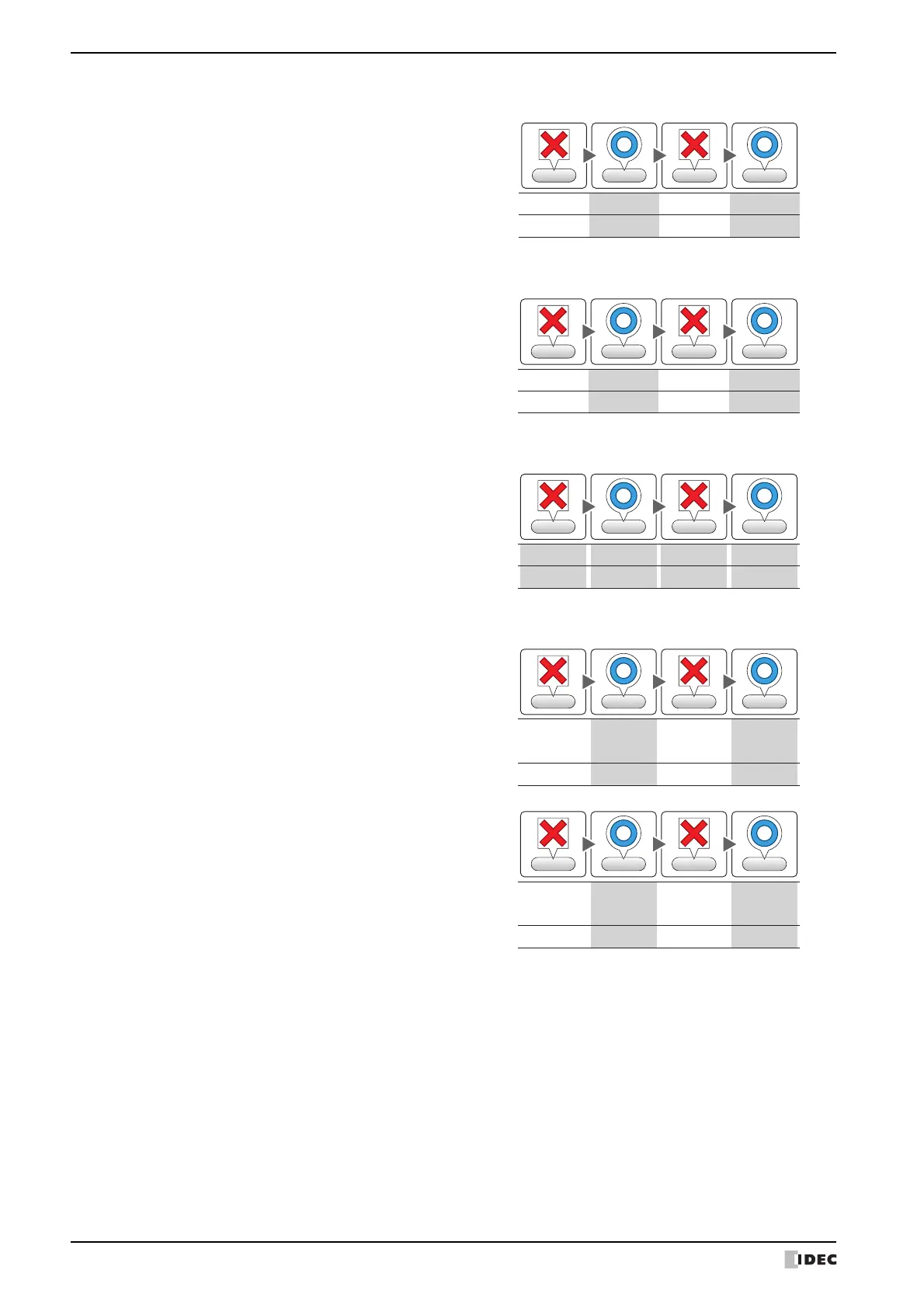

State of condition
Data written
Write
Action
Write
Fixed Value
Fixed Value
Condition Condition Condition Condition
Satisfied
Satisfied
SatisfiedNot satisfied
Not satisfied
Not satisfied
Satisfied
Satisfied
Satisfied
Not satisfied
Not satisfied
Not satisfied
Writes the value in the source device to the
destination word device when the trigger
condition is satisfied.
State of condition
Data written
Write
Action
Write
Value of Device
Value of Device
Condition Condition Condition Condition
SatisfiedSatisfiedSatisfiedNot satisfiedNot satisfiedNot satisfied SatisfiedSatisfiedSatisfied
Not satisfiedNot satisfiedNot satisfied
Writes the fixed ON Data value to the specified
word device when the trigger condition is
satisfied.
Writes the fixed OFF Data value to the specified
word device when the trigger condition is no
longer satisfied.
State of condition
Data written
Write
Action
OFF Data
Write
ON Data
Write
OFF Data
Write
ON Data
Condition Condition Condition Condition
SatisfiedSatisfiedSatisfiedNot satisfiedNot satisfiedNot satisfied SatisfiedSatisfiedSatisfied
Not satisfiedNot satisfiedNot satisfied
Performs arithmetic on the value in a source
device and a fixed value or a value of device, and
writes the result to a word device when the
trigger condition is satisfied.
Example: Add (Addition)
When the trigger condition is satisfied, the value
in the Source 1 is added to the value in Source
2 and the result is written to the word device.
State of condition
Data written
Action
Result
Arithmetic operation
↓
Write
Result
Arithmetic operation
↓
Write
Condition Condition Condition Condition
Satisfied
Satisfied
SatisfiedNot satisfied
Not satisfied
Not satisfied
Satisfied
Satisfied
Satisfied
Not satisfied
Not satisfied
Not satisfied
State of condition
Data written
Action
Result Result
Addition
↓
Write
Addition
↓
Write
Condition Condition Condition Condition
Satisfied
Satisfied
SatisfiedNot satisfied
Not satisfied
Not satisfied
Satisfied
Satisfied
Satisfied
Not satisfied
Not satisfied
Not satisfied
