SmartAXIS Touch User’s Manual 13-29
4 Using Data and Detected Alarms
13
Alarm Log Function
12

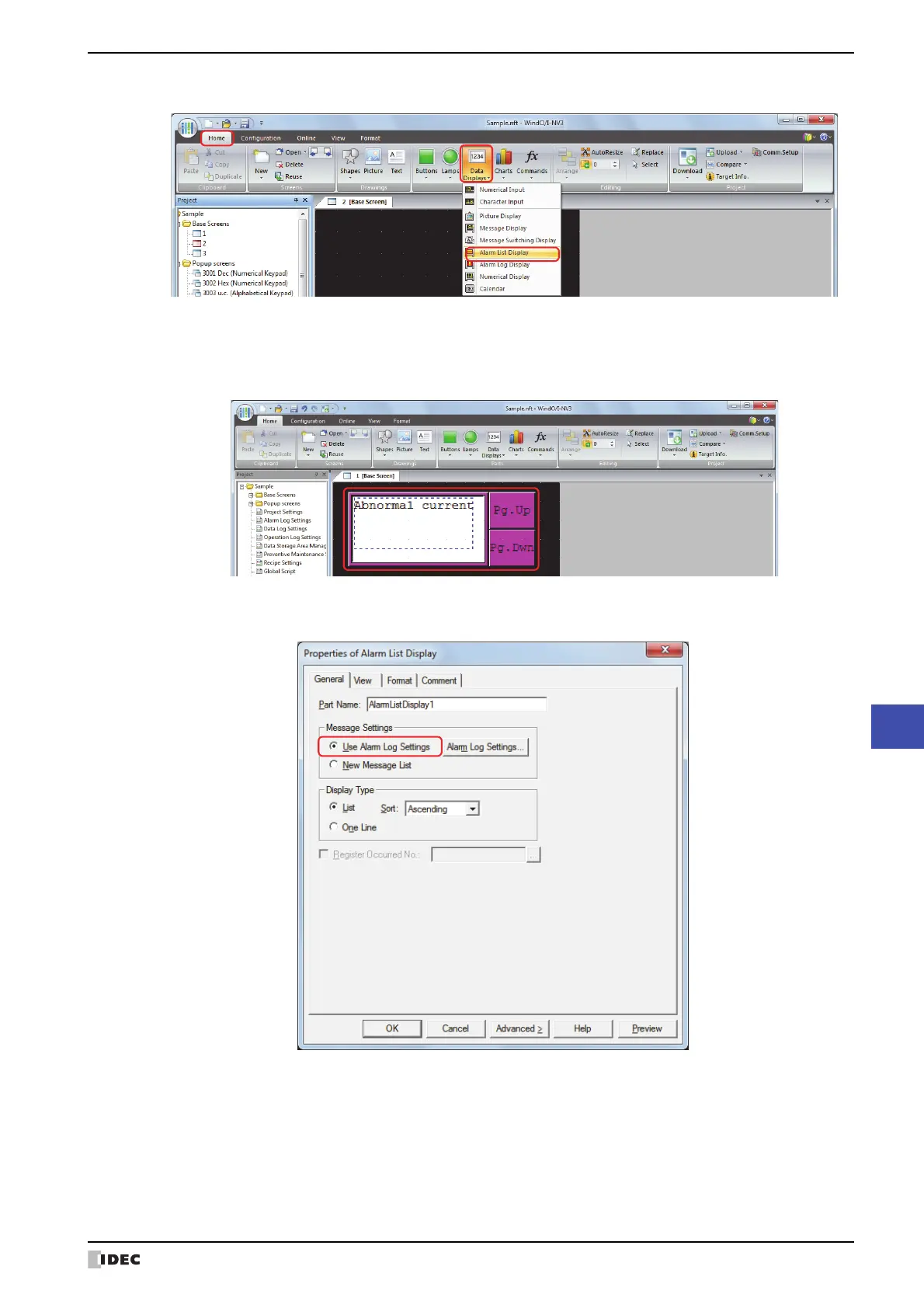

On the Home tab, in the Parts group, click Data Displays, and then click Alarm List Display.
13
Click a point on the edit screen where you want to place the Alarm List Display.
14
Double-click the dropped Alarm List Display and a Properties dialog box will be displayed.
15
On the General tab, under Message Settings, select Use Alarm Log Settings.
16
Configure the other settings and the settings on each tab as necessary.
For details, refer to Chapter 9 “6.3 Properties of Alarm List Display Dialog Box” on page 9-85.
17 Click OK.
The Properties of Alarm List Display dialog box closes.
This concludes configuring the Touch to display registered messages with the Alarm List Display according to the
active alarm.
