3 Data Log Settings Dialog Box
14
Data Log Function

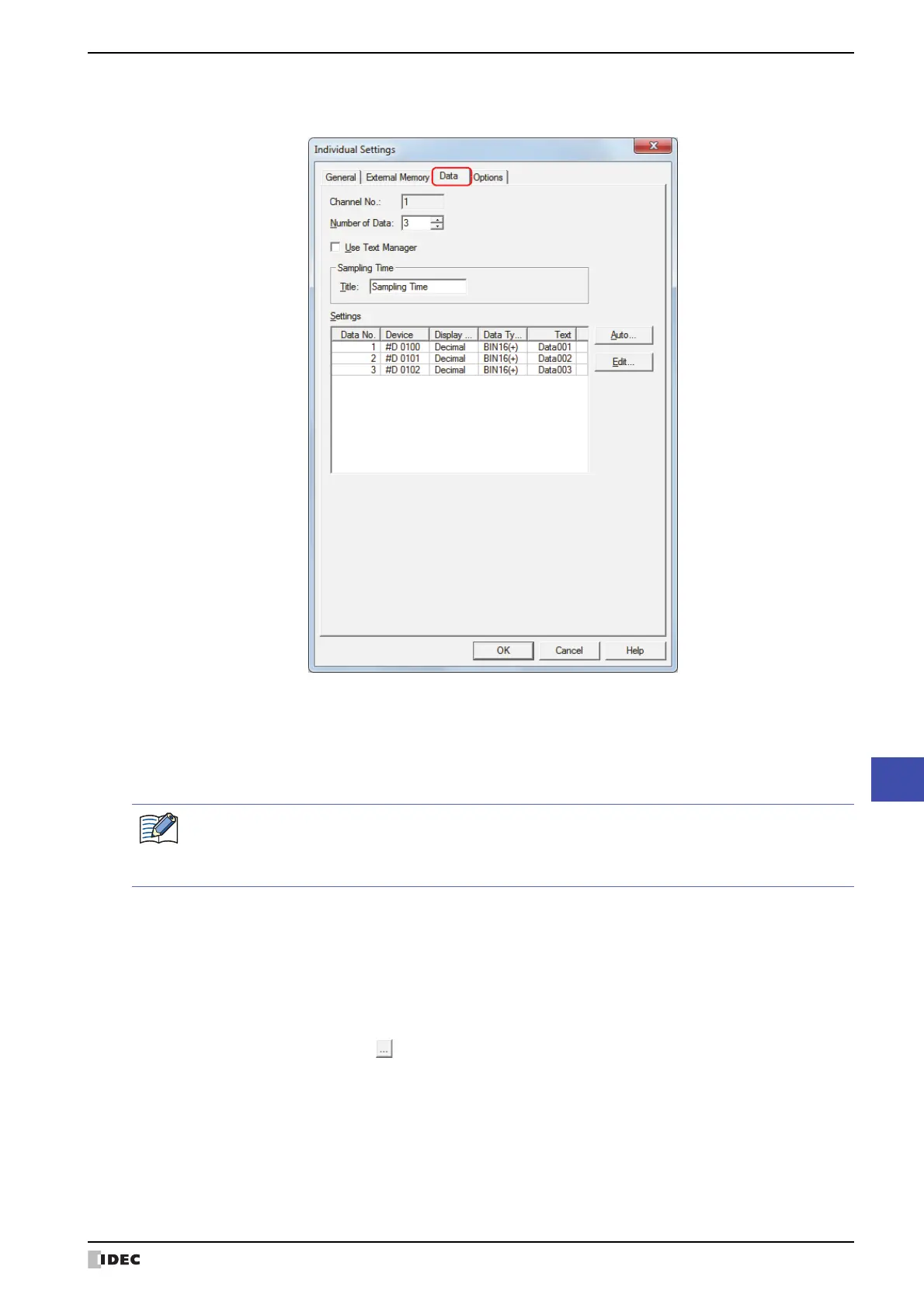

● Data Tab
The Data tab is used to configure the data to sample.
■ Channel No.
Shows the selected channel number.
■ Number of Data
Specifies the number of devices (1 to 128) for sampling data. Samples values of devices in this amount starting with
the device configured as the source device on the General tab.
■ Use Text Manager
Select this check box to use text registered in Text Manager for labels when outputting data as CSV.
■ Label
The maximum amount of data that can be configured for one channel is 128. However, if 32-bit is selected
for Data Size, it is counted as 16-bit data times 2 devices, so the maximum number devices that can be
configured for one channel is 64. Data Size is configured with the General tab on the Individual Settings
dialog box.
Sampling Time: Specifies the label to display in the sampling time column when outputting data as CSV.
Text ID Specifies the Text Manager ID number (1 to 32000) when text registered in Text
Manager are used for labels.
Click to open Text Manager where you can edit the text.
This option is only enabled if you select the Use Text Manager check box.
(Text) Enter the text to display in the label. The maximum number is 40 characters.
Text can only be entered when the Use Text Manager check box is cleared. The
registered text is displayed when a text ID is specified.
