3 Operation Log Settings Dialog Box
15-12 SmartAXIS Touch User’s Manual

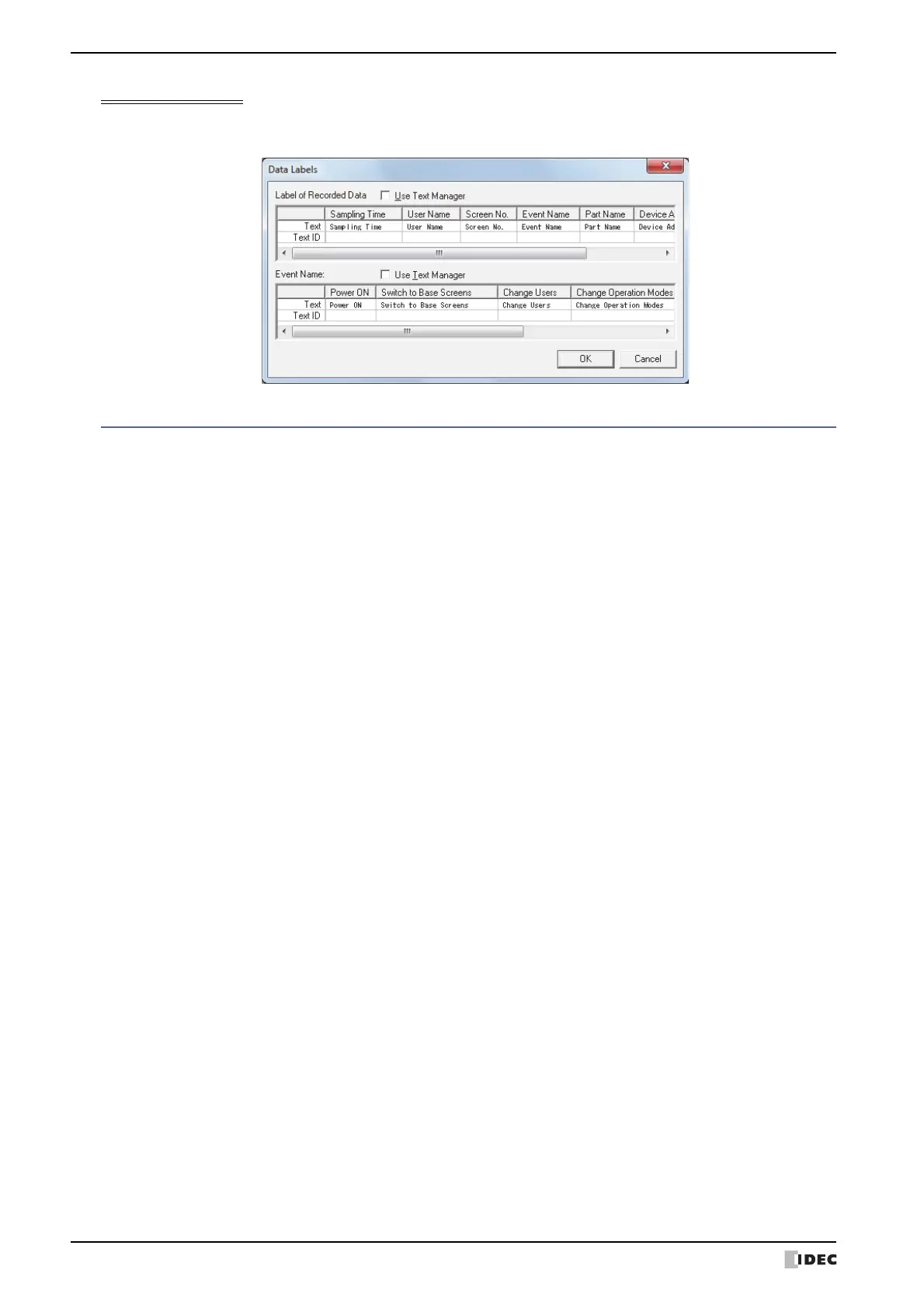

Data Labels Dialog Box
The Data Labels dialog box is where you can edit labels for recorded data and event names when saving data as a
CSV file.
Label of Recorded Data
â– Use Text Manager
Select this check box to use text registered in Text Manager for recorded data labels when saving data as a CSV file.
â– Label of Recorded Data
Specifies the text to display in the label row in Text or Text ID.
The details for each label row label is as follows.
Text: Double click the cell to enter the text to display as the label. The maximum number is 40
characters.
Text can only be entered when the Use Text Manager check box is cleared.
Text ID: Double click the cell to specify the Text Manager ID number (1 to 32000) when using text
registered in Text Manager as the label.
This option is only enabled if you select the Use Text Manager check box.
Sampling Time: The label for the column to display the time the event occurred.
User Name: The label for the column to display the user name when the event occurred.
Screen No.: The label for the column to display the screen type and number that was displayed when the event
occurred.
Event Name: The label for the column to display the name of the event that occurred on the Touch by an
operation including a user operation.
Part Name: The label for the column to display the part name for the pressed touch switch when the Press
buttons event occurs.
Device Address: The label for the column to display the destination device when the Write Data to any Devices
event occurs.
Changed to: The label for the column to display the result produced from the event that occurred. The recorded
content varies based on the event that occurred.
