IDEC SmartAXIS Touch FT1A Series User Manual

SmartAXIS Touch User's Manual 2-55
3 Configuration & Functions
2
WindO/I-NV3 Basic Operations

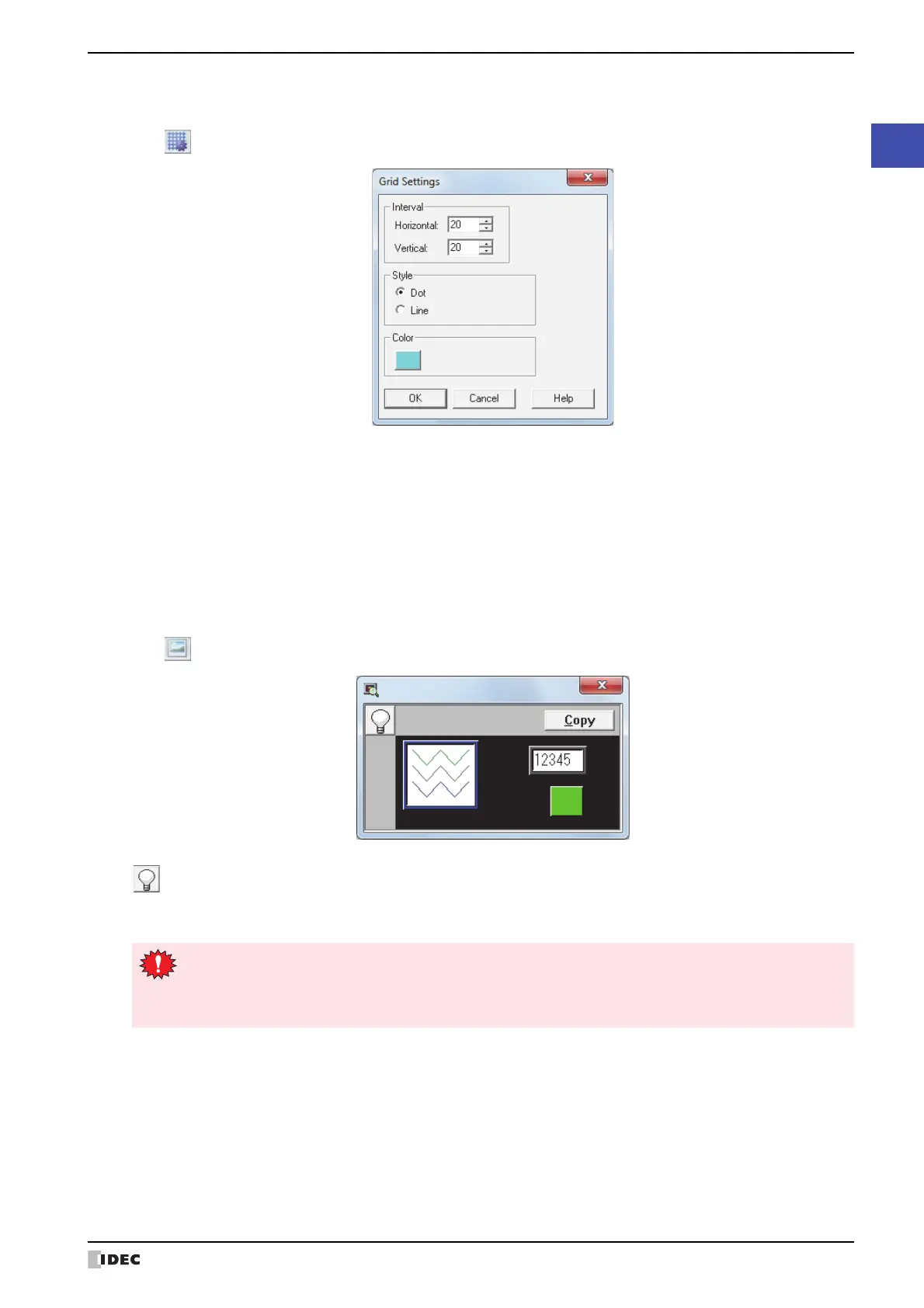

■ Grid Settings
You can change the style and spacing of the grid displayed in the editing window.
Click to display the Grid Settings dialog box. Configure the items, and then click OK.
■ Preview
You can preview an edited screen.
Click to open the preview window.
Interval: Aligns the gridlines to the specified spacing.
Enter the spacing for the gridlines in Horizontal and Vertical.
Style: Select the grid style with Dot or Line.
Color: Select the grid color.
Click this button to open the color palette. Select the color with the color palette.
(ON/OFF): Click the button to switch between the OFF image and ON image for buttons and lamps.
Copy: You can save the image displayed in the preview window as a bitmap image file by clicking Copy.
The preview display and the actual screen displayed on the Touch may differ.
For example, the image for overlay screens in the preview display is always shown in front. However, when
drawings and parts overlap on the actual screen, parts are always shown in front irregardless of the order
of overlay screens.
