SmartAXIS Touch User's Manual 22-13
5 User Communication
22
Communication
■ Satisfy the condition
Data is transmitted when condition changes from not satisfied to satisfied.
Specify the conditional expression in Condition and select the data type handled by the conditional expression in
Data Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expressions configuration
procedure, refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-64
For details on data types, refer to Chapter 2 “1.2 Available Data” on page 2-2.
■ Fixed Period
Data is transmitted at a fixed time interval.
Set the time interval between data transmissions as 1 to 3600 (seconds) in Period (sec).
12

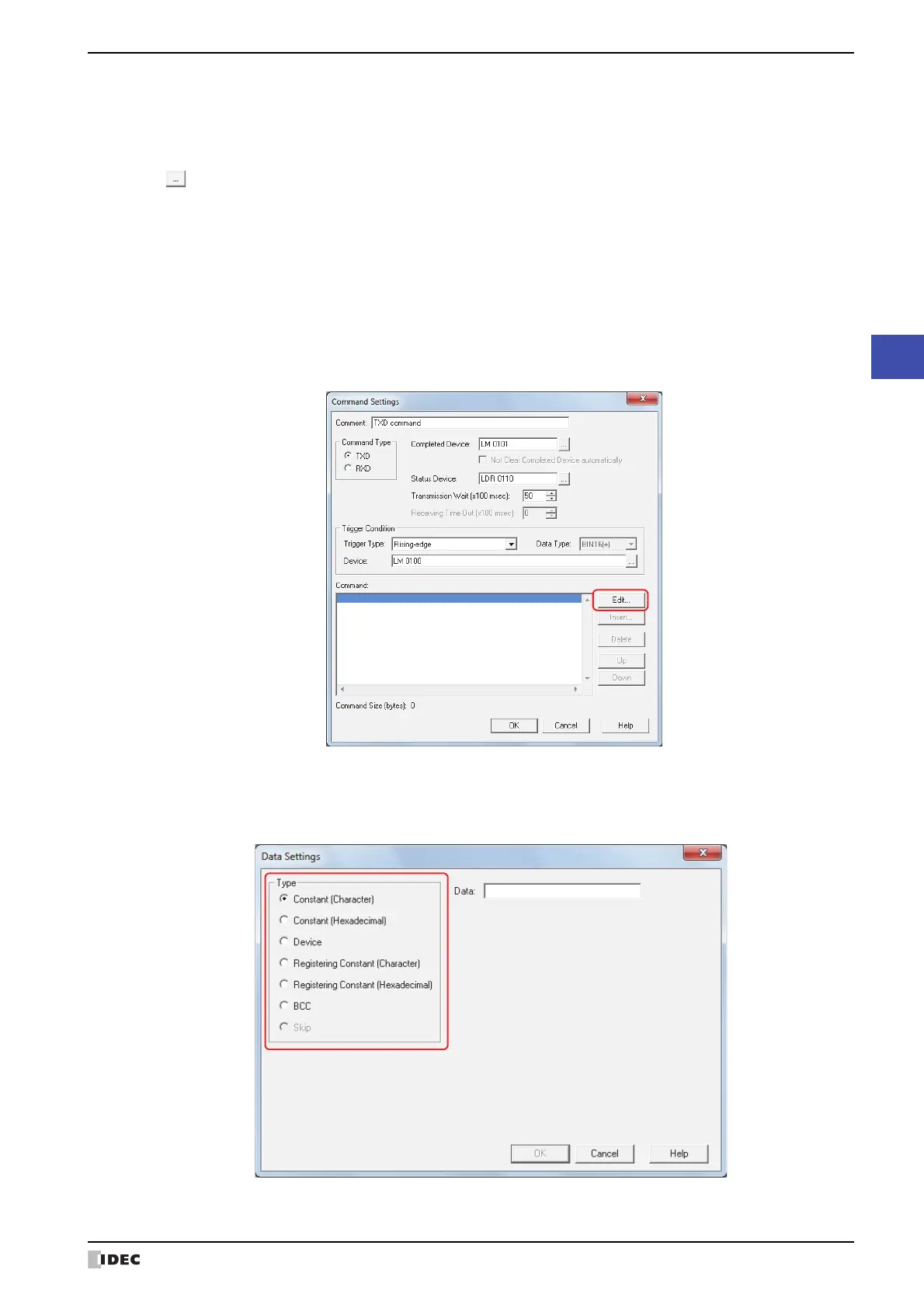

Set data for transmission command.
Click Edit.
The Data Settings dialog box is displayed.
13
Select data type in Type.
Data setting items are displayed.
For details on transmission command, refer to “Transmission (TXD) Command” on page 22-37.
To Next Page
