5 User Communication
22-28 SmartAXIS Touch User's Manual
■ Not Clear Completed Device automatically
Select this check box when the value of the Completed Device is not set to 0 automatically after it changes to 1. This can
be configured when RXD is selected in Command Type.

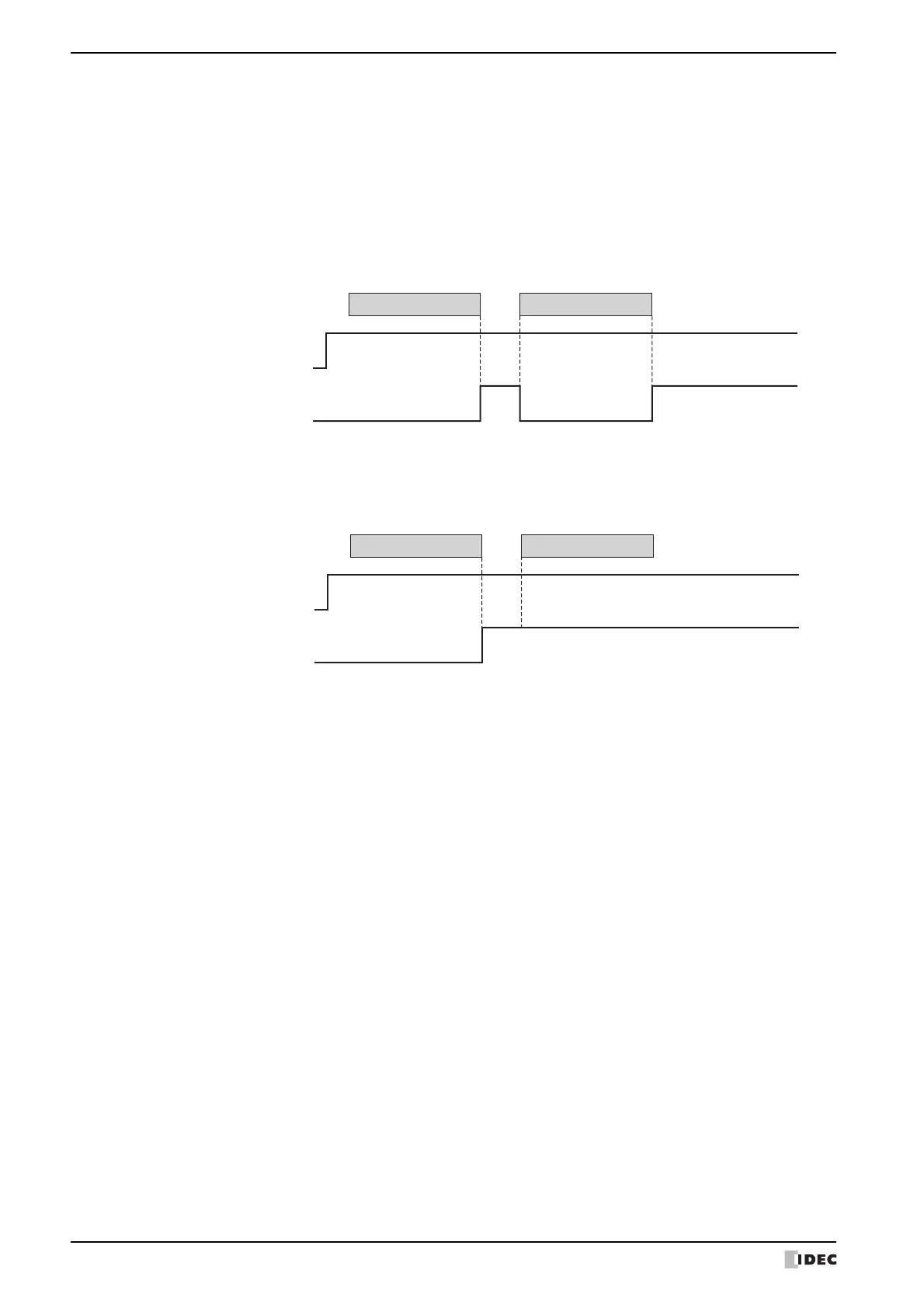

Example: When Trigger Type in Trigger Condition is While ON, Device is LM100 and Completed Device is
LM101
When the Not Clear Completed Device automatically check box is not selected:
When data receiving is successfully completed, the value of the Completed Device LM101 changes to 1.
When the first data of the next frame is received, the value of the Completed Device LM101 changes to 0.
When the Not Clear Completed Device automatically check box is selected:
When data receiving is successfully completed, the value of the Completed Device LM101 is set to 1. Even
after the first data of the next frame is received, the value of the Completed Device LM101 does not
change to 0.
Value of Completed Device
LM101
Receive command
Value of LM100 when
Trigger Condition is
While ON
1
0
1
0
Receive data 1 frame Receive data 1 frame
1
0
1
0
Receive data 1 frame Receive data 1 frame
Value of Completed Device
LM101
Receive command
Value of LM100 when
Trigger Condition is
While ON
