5 User Communication
22-36 SmartAXIS Touch User's Manual

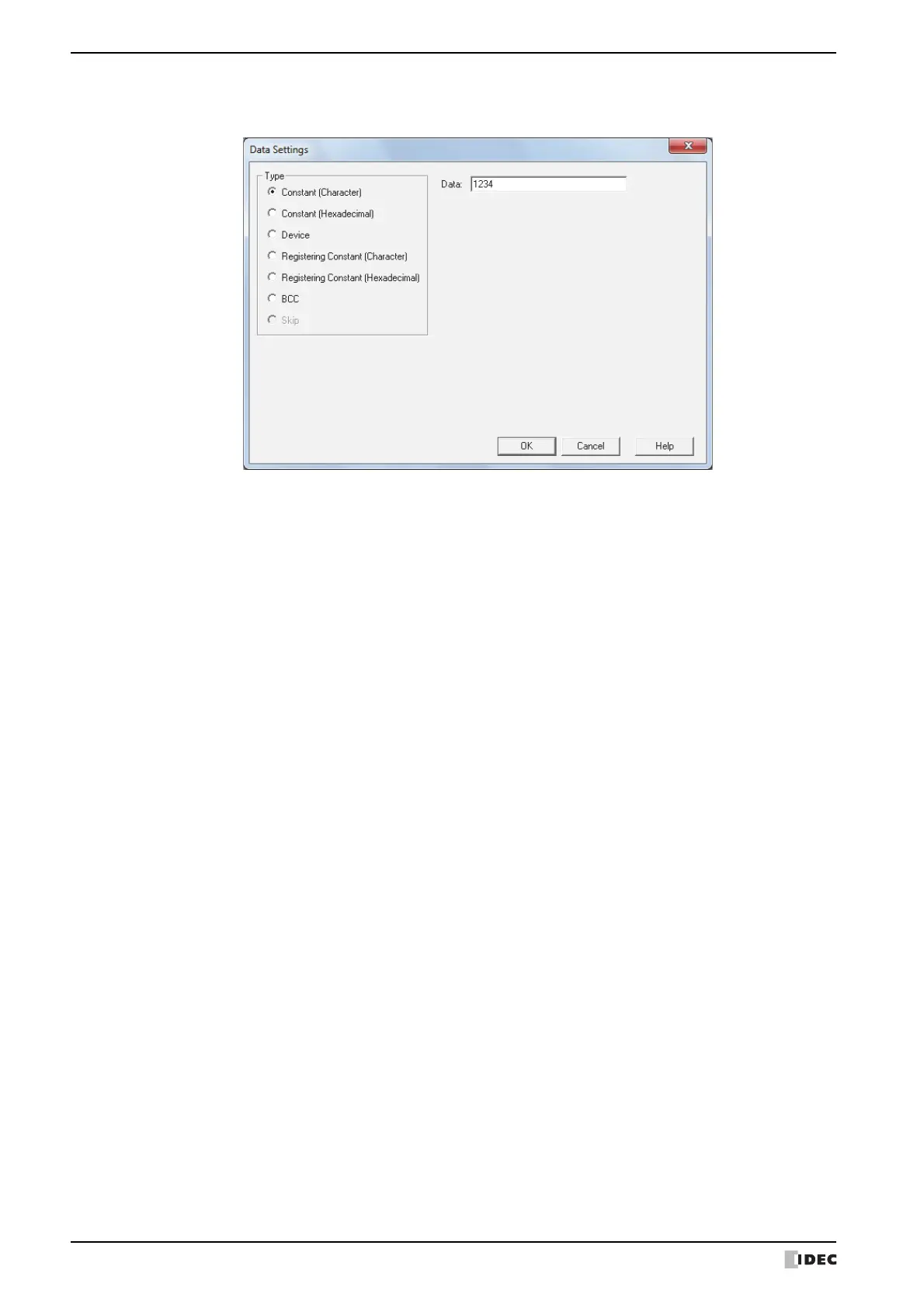

● Data Settings Dialog Box
Specify the transmitted or received data by a command.
■ Type
Selects data types from the following items.
Constant (Character), Constant (Hexadecimal), Device, Registering Constant (Character), Registering
Constant (Hexadecimal), BCC, Skip
Skip can only be configured when RXD is selected in Command Type on the Command Settings dialog box.
Setting item varies based on the selection in Command Type on the Command Settings dialog box.
When TXD is selected, refer to “Transmission (TXD) Command” on page 22-37.
When RXD is selected, refer to “Receive (RXD) Command” on page 22-50.
