Korg NAUTILUS Series Parameter Guide

Effect Guide
760
SAMPLING mode
Pan
Stereo Sample L
Send1
IFX2 Bus
IFX2
IFX1 Bus
IFX1
Chain & Chain to
MFX2
MFX1
Return1 / 2
AUDIO OUTPUT (MAIN) L/Mono, R
IFX4 Bus
IFX4
IFX3 Bus
IFX3
IFX5 Bus
IFX5
Bus Select = 1
Stereo Sample R
Bus Select
stereo
Insert Eects
Post IFX Pan(CC#8)
Post IFX Bus Select
Send2
stereo
Master Eects
AUDIO OUTPUT (INDIVIDUAL)1/2/3/4
L/R Bus
stereo
mono x 4 (stereo x 2)
Bus Select = IFX1
stereo
stereo stereo
stereo
stereo
Chain

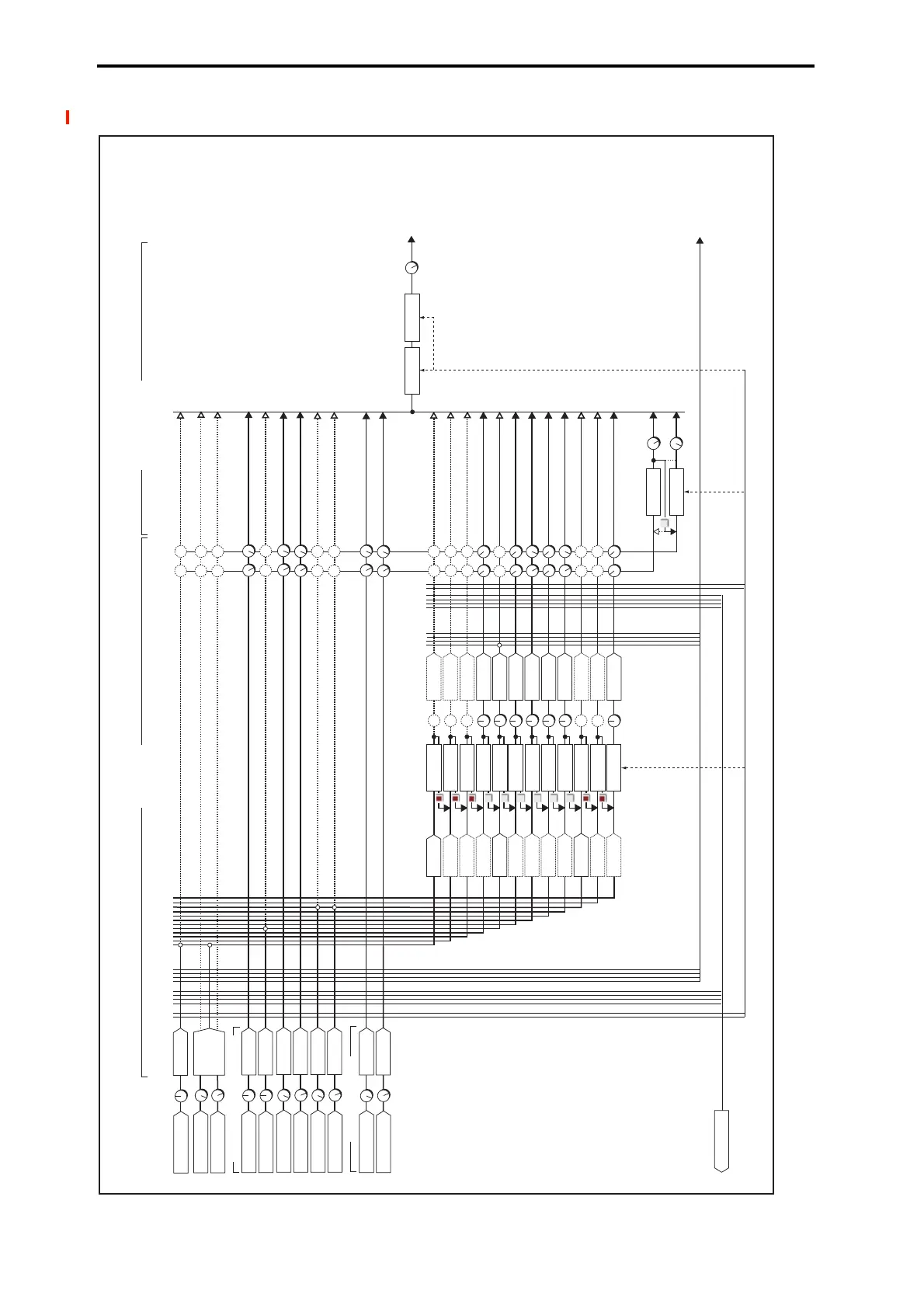

Eect / Mixer Block Diagram in Sampling Mode
P8: Insert Eect
Post IFX Send1 / 2
P9: Master/Total Eect
Analog Input 1
Analog Input 2
Bus Select = L/R
Bus Select = IFX5
Sampling P0: Audio Input/Sampling
Sampling P0: Audio Input/Sampling "Input" (Send1, Send2)
USB IN 1
Bus Select = L/R
Bus Select = L/R
Bus Select = L/R
IFX6 Bus
IFX6
IFX7 Bus
IFX7
Bus Select = L/R
stereo
stereo
Bus Select = L/R
IFX8 Bus
IFX8
IFX9 Bus
IFX9
Bus Select = L/R
stereo
stereo
Bus Select = L/R
IFX10 Bus
IFX10
IFX11 Bus
IFX11
stereo
stereo
IFX12 Bus
IFX12
stereo
Bus Select = L/R
USB IN 2
S/P DIF IN L
S/P DIF IN R
Bus Select = IFX10
Bus Select = IFX10
stereo
stereo
TFX1
TFX2
Master Level
Select from: L/R IFX1 IFX2 IFX3 IFX4 IFX5 IFX6 IFX7 IFX8 IFX9 IFX10 IFX11 IFX12
1 2 3 4 1/2 3/4 O
stereo
Total Eects
Audio CD L
Bus Select = L/R
Bus Select = L/R
Audio CD R
Sampling P5: Audio CD
Sampling P5: Audio CD "Audio Input" (Send1, Send2)
Mono Sample
Bus Select = IFX1
Select from: L/R 1 2 3 4
1/2 3/4 O
REC Bus
mono x 4 (stereo x 2)
Sampling Source Bus
FX Control Bus
stereo x 2
