5.7.26 External Generators
The connection of an external generator to the R&S ZNB/ZNBT can serve different
purposes.
●

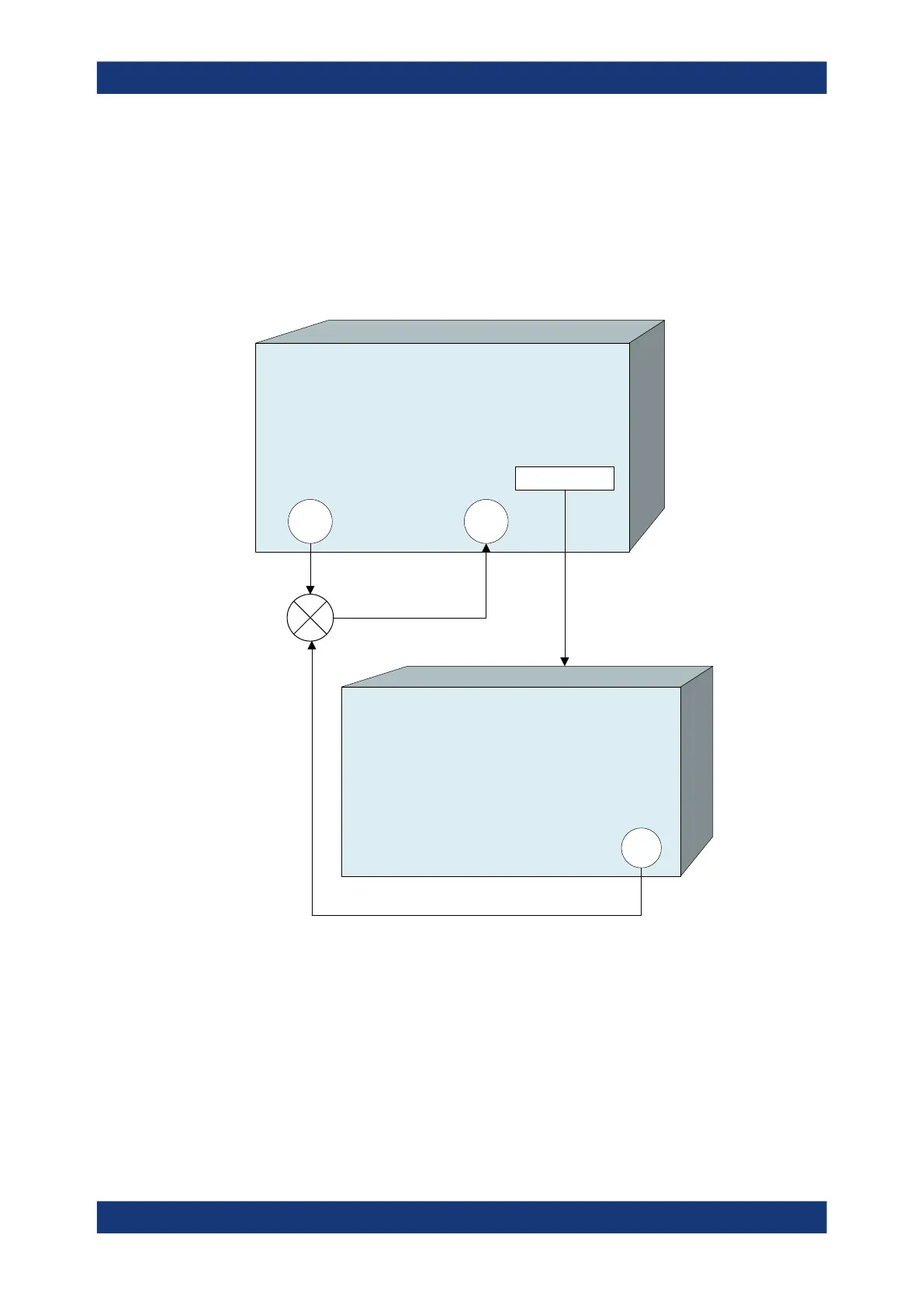

Extended measurement functionality: Each external generator represents an addi-
tional source port. External generators increase the number of RF input signals for
the DUT. A typical example is a mixer measurement with a 2-port analyzer, where
an external generator provides the LO input signal.
VNA
1 2
RF
LO
IF
USB ports
Control connection
(e.g. USB)
External generator
RF
out
●
Power calibration: An external generator can provide the reference signal for a
source or receiver calibration. A typical example is a receiver power calibration
using a measured wave b
1
.
