Annexes

R&S

ZNB/ZNBT

1431User Manual 1173.9163.02 ─ 55

Structure and syntax of the instrument messages are described in Chapter 8, "Com-

mand Reference", on page 776. The chapter also provides a detailed description of all

messages implemented by the analyzer.

11.3.4 Handler I/O (Universal Interface)

Option R&S ZN-B14 / R&S ZNBT-Z14

A network analyzer which is equipped with a Handler I/O (Universal Interface) option,

can interact with an external part handler. The digital control signals on the interface

connector indicate the possible start and the end of a measurement, as well as a

global limit check result. Typically, the handler will insert the device to be tested into a

test fixture, provide a trigger pulse to initiate the measurement, remove and replace the

device after the measurement is complete and sort it into pass/fail bins. A sample flow

diagram for this process is shown below.

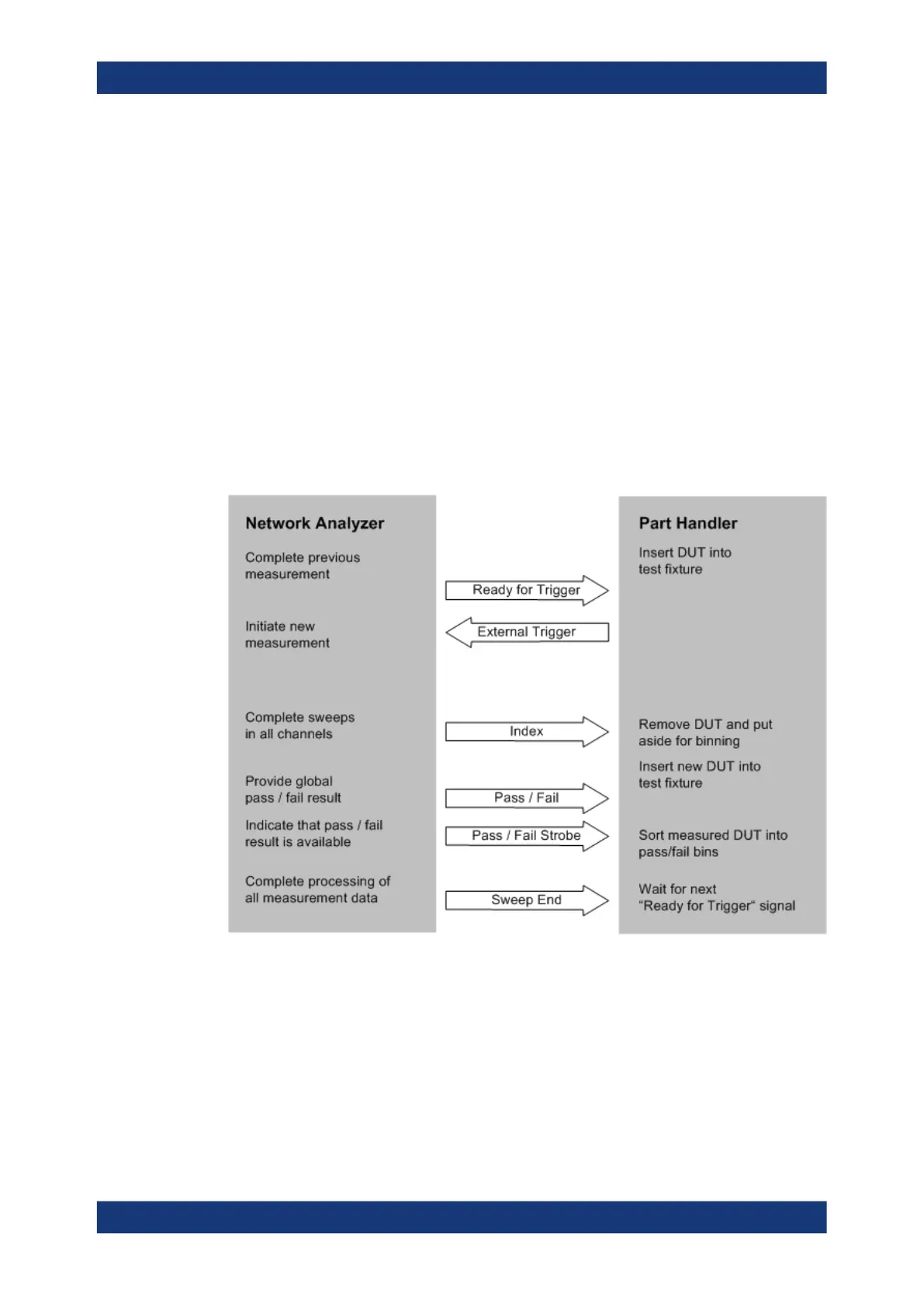

Figure 11-1: Possible stages of an automated test

Preparation of the network analyzer and the part handler

The network analyzer configuration depends on the measurement to be made. Starting

from the preset state, you will usually have to adjust the following settings:

1. Enable external trigger:

CHANNEL – [TRIGGER] > "Trigger" > "External"

Interfaces and Connectors

R&S ZNB User Manual
