Remote command:
CALCulate<Chn>:STATistics:NLINear:COMP:REFerence
Selected Marker
This button is only visible if "Selected Marker" is used as Reference Value. It allows
you to select the marker whose value shall be used as the reference ("small signal
value") for the compression point calculation.
Remote command:
CALCulate<Chn>:STATistics:NLINear:COMP:RMARker
Ref. Range

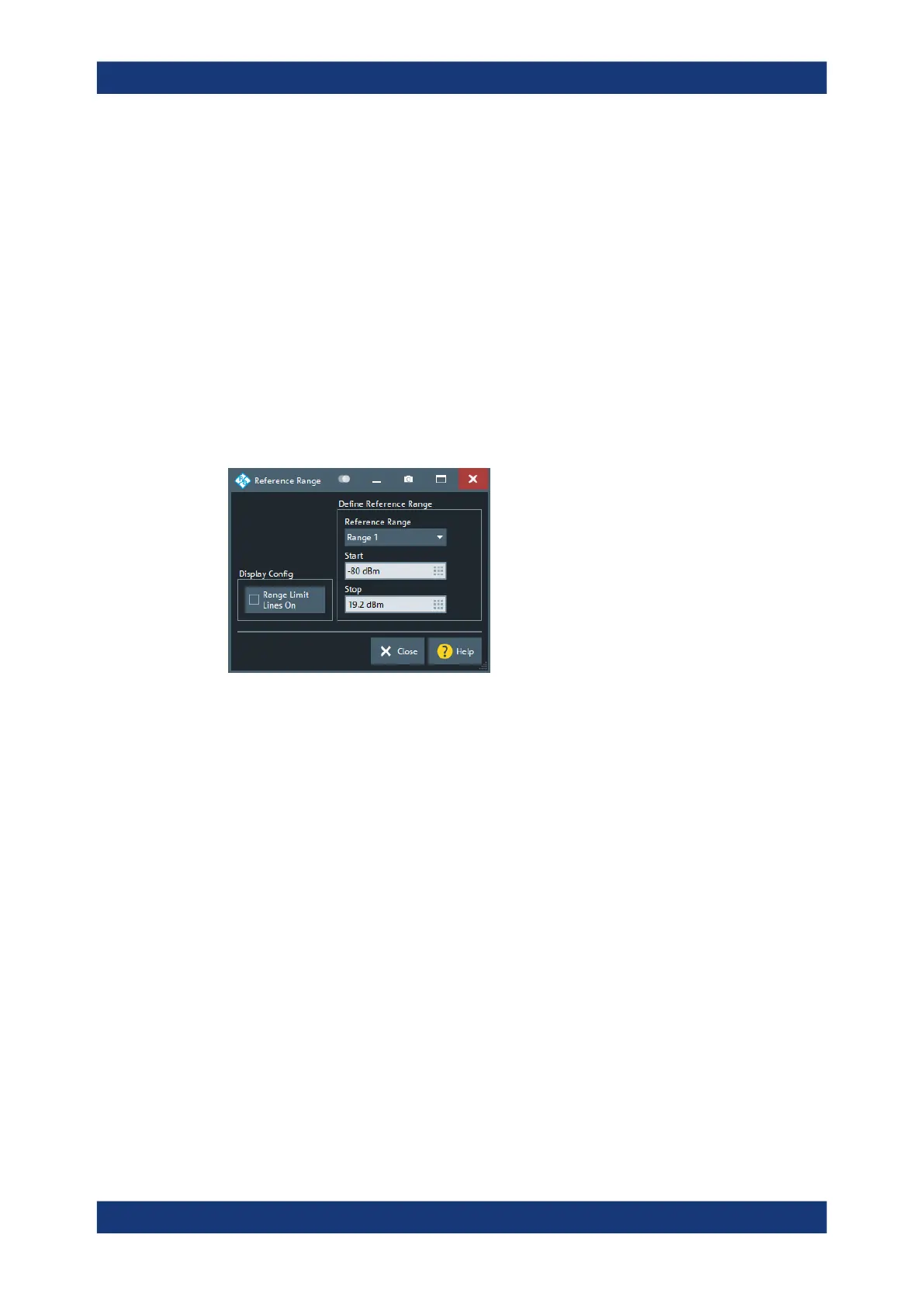

This button is only visible if "Range" is used as Reference Value. It opens the "Refer-
ence Range" dialog that allows you to configure the sweep range whose average value
shall be used as the reference ("small signal value") for the compression point calcula-
tion.
The
Remote command:
CALCulate<Chn>:STATistics:NLINear:COMP:RDOMain:USER
CALCulate<Chn>:STATistics:NLINear:COMP:RDOMain:USER:STARt
CALCulate<Chn>:STATistics:NLINear:COMP:RDOMain:USER:STOP
CALCulate<Chn>:STATistics:NLINear:COMP:RDOMain:USER:SHOW
Defined Value
This setting is only visible if "Defined Value" is used as Reference Value. It manually
defines the reference value ("small signal value") for the compression point calculation.
Remote command:
CALCulate<Chn>:STATistics:NLINear:COMP:RLEVel
CALCulate<Chn>:STATistics:NLINear:COMP:RPHase
6.5.8.2 Evaluation Range Dialog
The "Evaluation Range" dialog defines the range for various trace evaluation opera-
tions (trace statistics, offset, loss and fixture compensation calculations). The evalua-
tion range is a continuous interval of the sweep variable.
Access:
●
TRACE – [TRACE CONFIG] > "Trace Statistics" > "Evaluation Range..."
Trace Config Softtool
To Next Page
