Configured External Switch Matrices
The "Hardware" tab also provides information about connected switch matrices. In par-
ticular, for mechanical matrices the current relay switch counts are reported (if suppor-
ted by the matrix).
Remote command:
SYSTem:COMMunicate:RDEVice:SMATrix<Matr>:RELays:SWITch:COUNt?

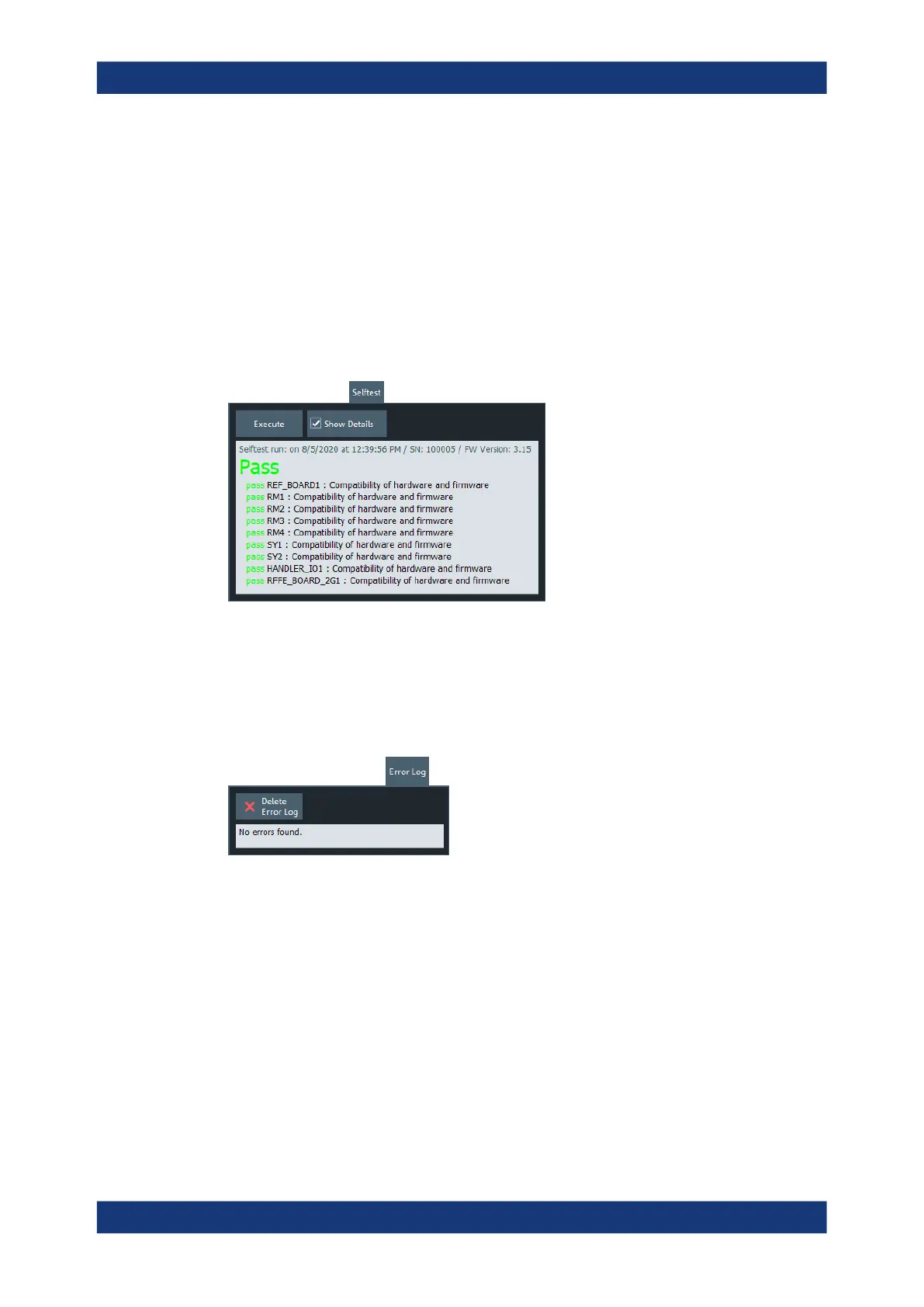

Selftest Tab
Allows to run an automatic selftest on the analyzer, and to displays its results. Check
"Show Details" to see the detailed test results.
Error Log Tab
Contains a chronological record of errors that occurred in the current and in previous
sessions (see Chapter 10.1, "Errors during Firmware Operation", on page 1417).
The "Error" tab comes with an additional button for clearing the log ("Delete Error
Log").
6.17.1.4 Service Function Dialog
The "Service Function" dialog gives access to the service functions of the instrument.
Access: [SETUP] > "Setup" > "Service Function..."
Most of the service functions require a service level > 0 that is protected by a pass-
word. Those service functions should be used by a Rohde & Schwarz service repre-
sentative only. Refer to the service manual for more information.
Setup Softtool
To Next Page
