Note: Transmission normalization and "One Path Two Ports" calibration types require
two-port (Through) characterization data for the cal unit.For current calibration units,
however, these two-port characterizations are typically not part of the factory character-
ization. If a tooltip indicates missing two-port characterization data, simply perform a
new characterization of your cal unit. In the first dialog of the "Characterization" wizard,
select "Take All OSM and Through" to make sure that the necessary two-port data is
acquired. See also "Characterization Wizard" on page 485.
Remote command:
[SENSe<Ch>:]CORRection:COLLect:AUTO:TYPE
[SENSe<Ch>:]CORRection:COLLect:AUTO:PORTs:TYPE
[SENSe<Ch>:]CORRection:COLLect:AUTO:CONFigure
Step 2: Connections
Defines the port assignments between the R&S ZNB/ZNBT and the calibration unit.
Background information
Refer to Chapter 5.5.5.4, "Multiple Port Assignments", on page 171 for details on multi-
ple port assignments.

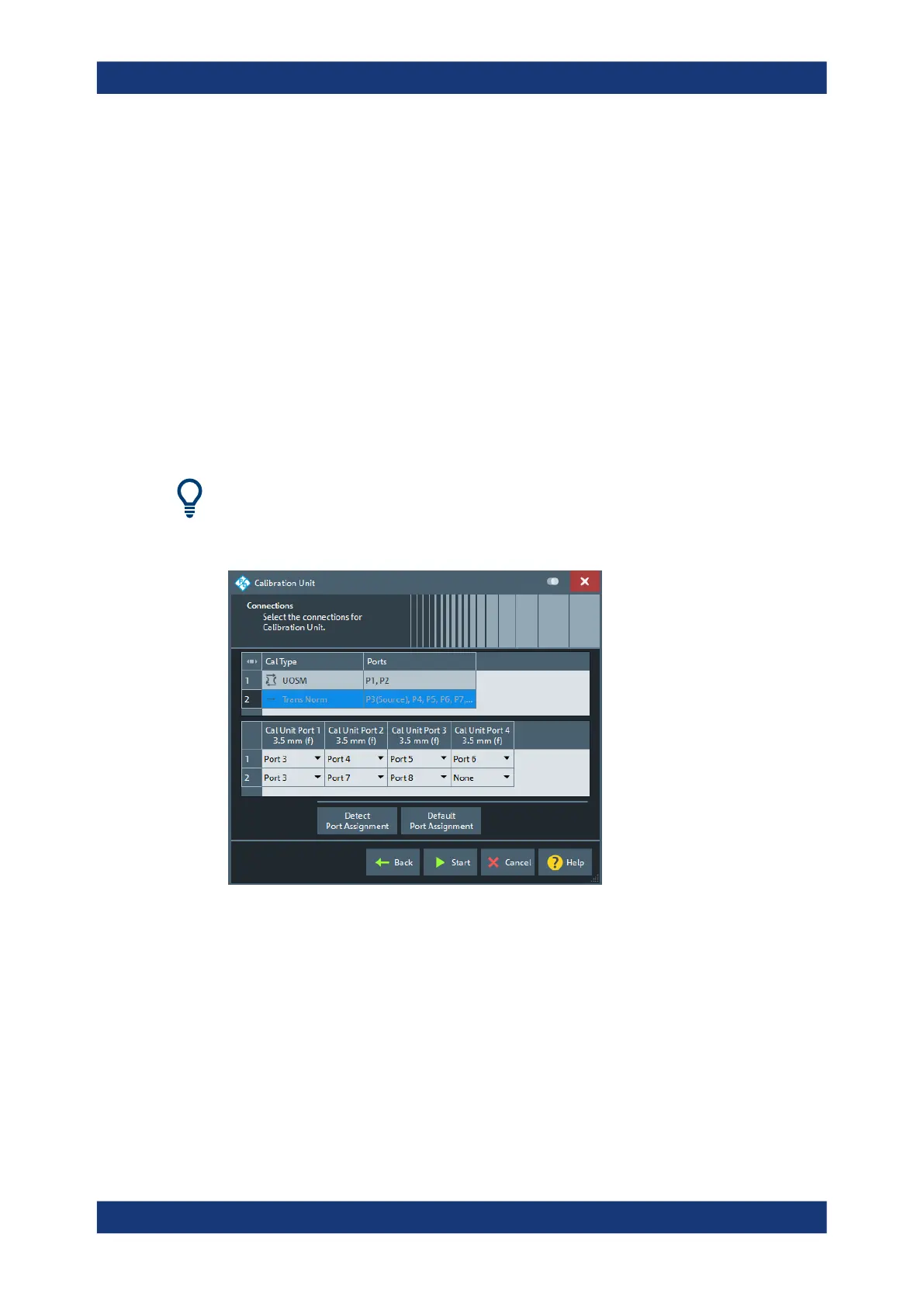

Figure 6-16: Multiple calibrations (and multiple port assignments)
Similar functionality as for the "SingleCal" version of the wizard (see "Step 2: Connec-
tions" on page 419): select the adequate calibration in the "Cal Type"/"Ports" table to
display and edit the corresponding port assignments.
Back
Go back to Step 1: Ports.
Start
Proceeds to Step 3: Cal Unit .
If the configured port assignments are invalid, this action is disabled.
