culates the system error correction data (error terms) from the measurement data
and applies the result to the active channel.
Background and related information
●
The "Multiple Cal in Calibration Wizard" feature is disabled by default and has to be
activated in the Calibration Tab of the "System Config" dialog.
●
Refer to Chapter 6.11.1.3, "Calibration Unit Wizard", on page 415 for further infor-
mation.

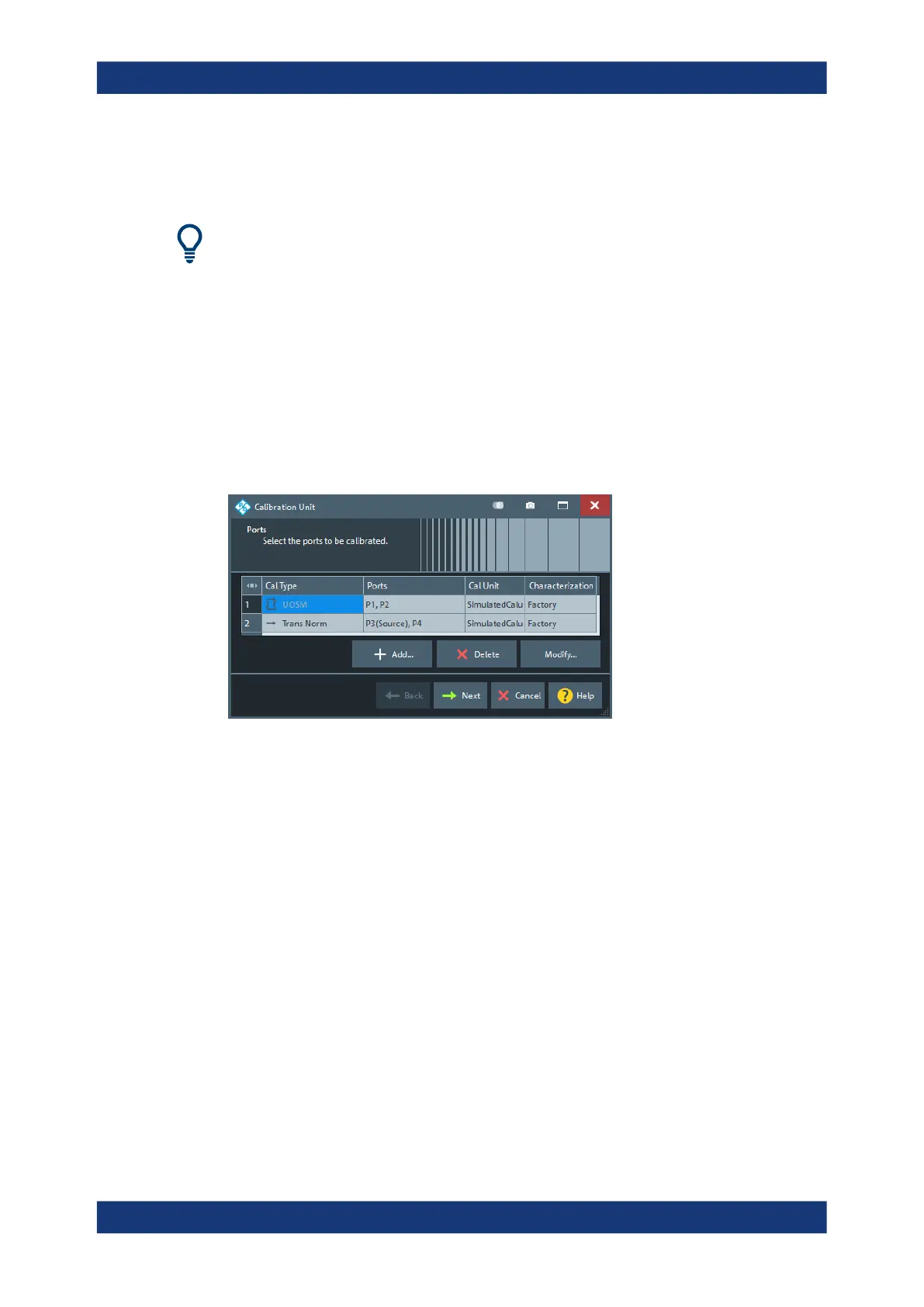

Step 1: Ports
The first page of the wizard presents the list of already configured calibrations and
allows you to:
●
"Add" new calibrations
●
"Delete" or "Modify" existing calibrations
Add...
Adds a new system error correction.
The "Add" button opens the Define Calibration Dialog without pre-selected ports.
Delete
Deletes the selected calibration from the list of configured calibrations.
Modify...
Edits the selected system error correction: opens the Define Calibration Dialog with the
corresponding ports and calibration type pre-selected.
Next
Proceeds to Step 2: Connections.
Inactive as long as no calibration is defined.
Define Calibration Dialog
In MultiCal mode, the "Define Calibration" dialog allows you to define multiple system
error corrections: for each system error correction, select the test ports to be calibrated
and the calibration unit, characterization and calibration type to be used.
