GUI Reference
R&S
®
ZNB/ZNBT
380User Manual 1173.9163.02 ─ 55

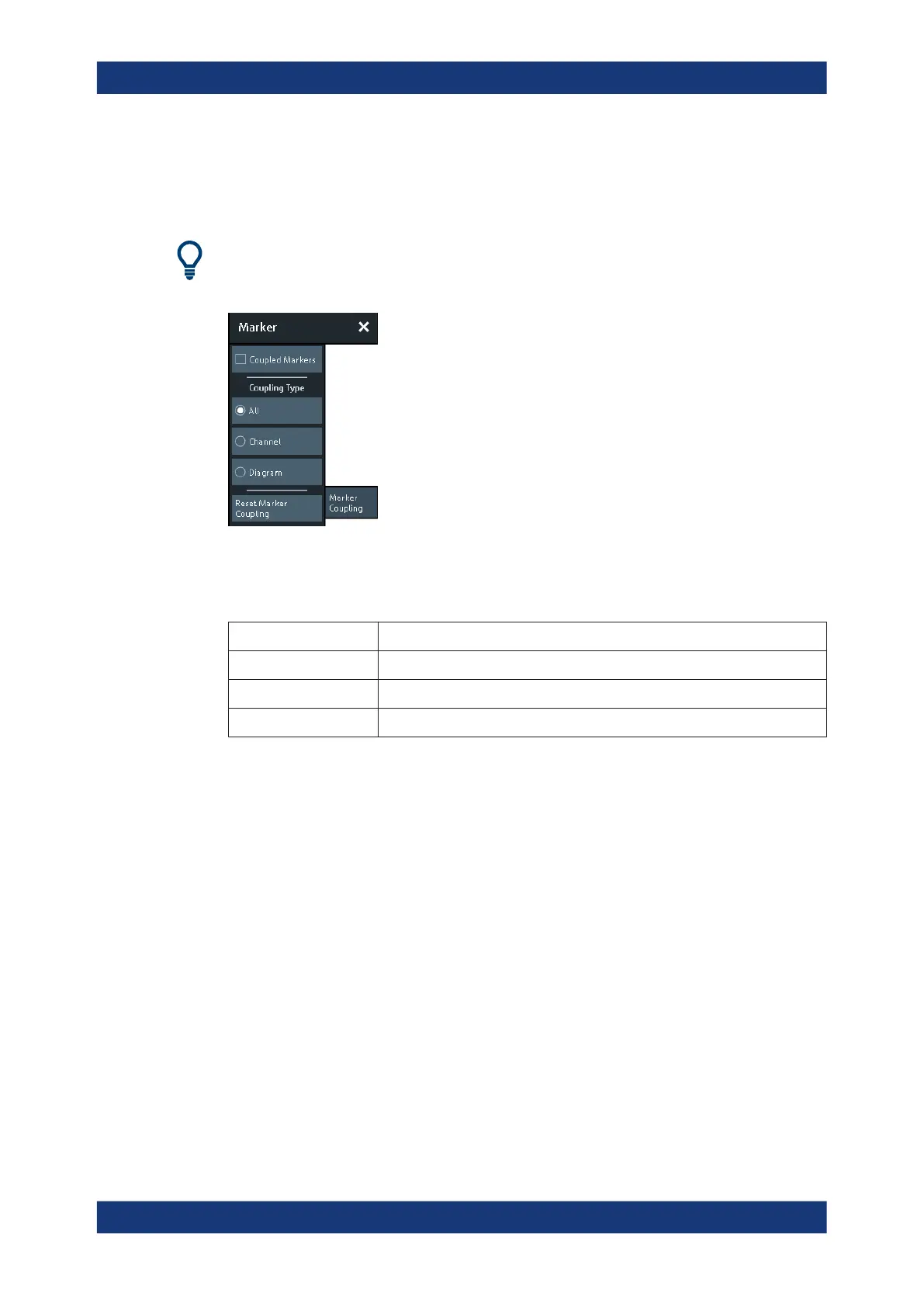

6.7.9 Marker Coupling Tab
Allows you to set up and control marker coupling.
Background information
Refer to "Marker Coupling" on page 98.
Coupled Markers
Activates or deactivates Marker Coupling. The label indicates the selected Coupling
Type:
"Coupling Type" Label
"All" "Coupled Markers"
"Channel" "Coupled Markers in <name of active channel>"
"Diagram" "Coupled Markers in <name of active diagram>"
Coupling also works if Tracking is enabled for Marker <m> in one trace. The Marker
<m> of the other traces then follow the movements of the tracked marker. The same
holds true for the reference marker.
Remote command:
CALCulate:MARKer:COUPled[:STATe]
Coupling Type
Determines the set of traces whose markers are coupled to the markers of the active
trace when marker coupling is enabled.
●
"All": marker coupling applies to all traces in the active recall set that have the
same stimulus variable as the active trace
●
"Channel": marker coupling applies to all traces in the active channel
●
"Diagram": marker coupling applies to all traces in the active diagram that have
the same stimulus variable as the active trace
The selected "Coupling Type" applies to all marker coupling relations in the current
recall set. Changing the "Coupling Type" automatically disables marker coupling
throughout the recall set.
