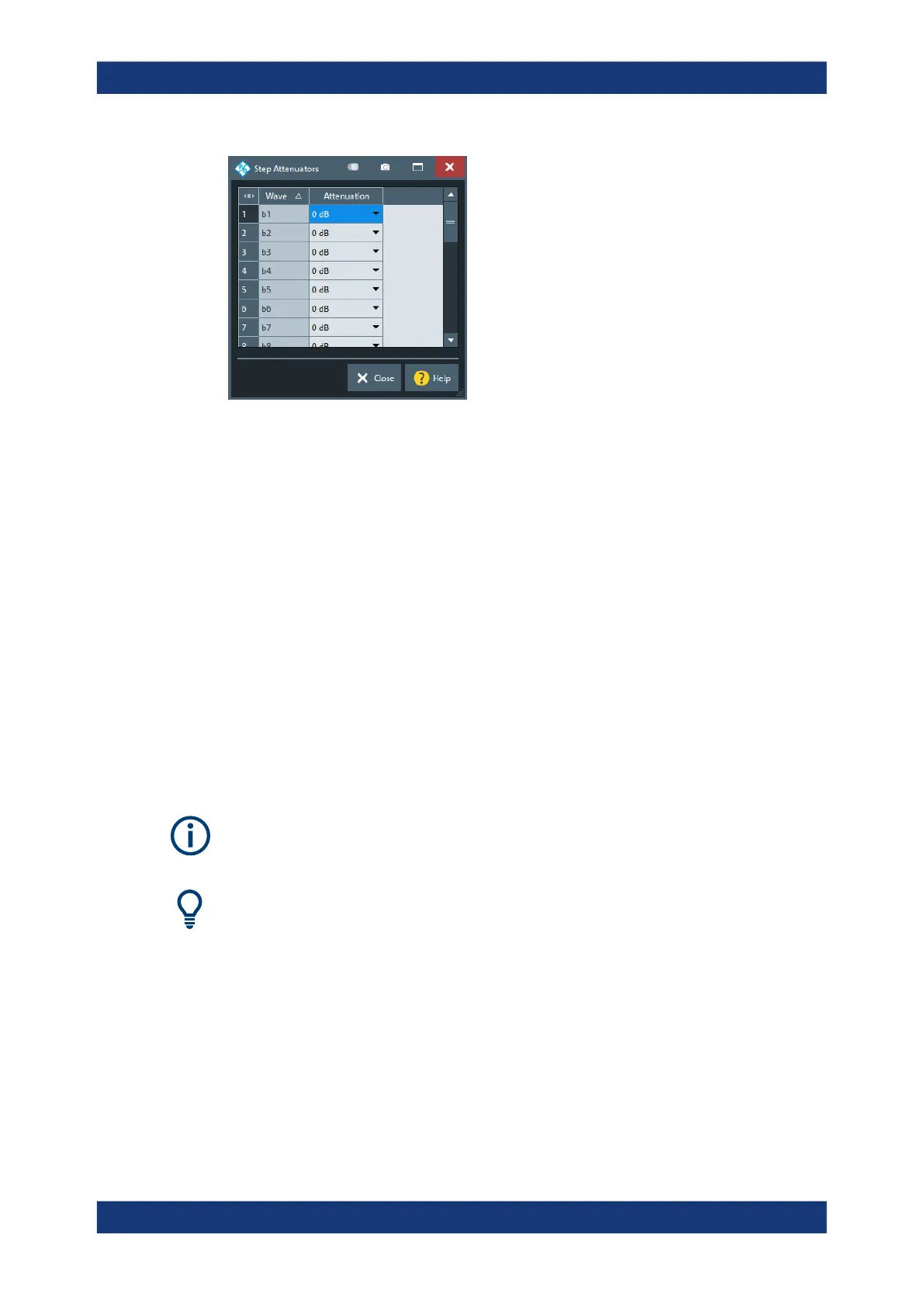

Remote command:
[SENSe<Ch>:]POWer:ATTenuation
RF Off All Channels
"RF Off All Channels" switches the internal power source for all channels off (if
checked) or on. Switching off the RF power helps to prevent overheating of a connec-
ted DUT while no measurement results are taken.
Tip: Switching off the internal RF sources while an external generator is used can
improve the measurement accuracy. "RF Off All Channels" also deactivates external
generators, so you have to use the settings in the "Arb Frequency" tab of the Port Set-
tings Dialog (with option R&S ZNB/ZNBT-K4).
Remote command:
OUTPut<Ch>[:STATe]
6.8.3 Time Domain X-Axis Tab
If the active trace is a time domain trace, these settings define its stimulus axis.
Time domain analysis requires option R&S ZNB-K2 / R&S ZNBT-K2. If this option is
not installed, the "Time Domain X-Axis" tab is hidden.
Related information
Refer to the following sections:
●
Chapter 5.7.2, "Time Domain Analysis", on page 201
●
Chapter 6.5.5, "Time Domain Tab", on page 316
Stimulus Softtool
