GUI Reference
R&S
®
ZNB/ZNBT
513User Manual 1173.9163.02 ─ 55
Background information
Refer to Chapter 5.1.3.3, "Active and Inactive Traces and Channels", on page 82.

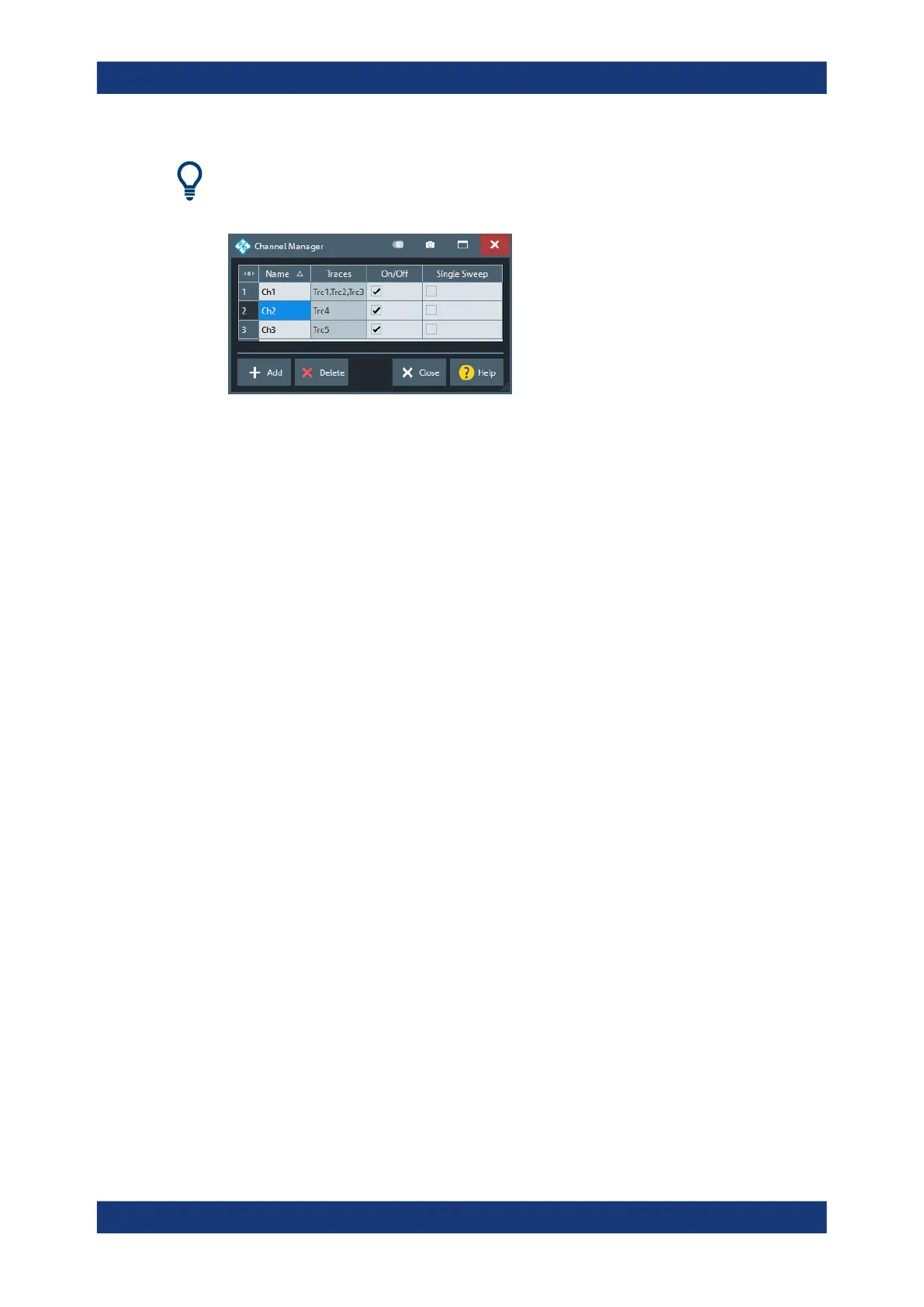

Channel table
The rows and columns of the channel table represent the existing channels (rows)
together with certain editable (white) or non-editable (gray) properties (columns).
●
"Name" indicates the name of the related channel.
●
"Traces" indicates the names of all traces assigned to the related channel.
●
"On/Off" toggles the measurement state of the related channel.
●
"Single Sweep" toggles between "Continuous" and "Single" sweep mode (see
"Continuous / Single" on page 410).
Remote command:
CONFigure:CHANnel:CATalog?
CONFigure:CHANnel<Ch>:NAME
CONFigure:CHANnel<Ch>:NAME:ID?
CONFigure:CHANnel<Ch>:MEASure[:STATe]
INITiate<Ch>:CONTinuous
Add / Delete
The buttons below the channel table add and delete channels.
●
"Add" adds a new channel to the list. The new channel is named Ch<n>, where
<n> is the largest of all existing channel numbers plus one.
●
"Delete" deletes the channel selected in the table. This button is disabled if the
setup contains only one channel: In manual control, each setup must contain at
least one diagram area with one channel and one trace.
Remote command:
CONFigure:CHANnel<Ch>[:STATe]
6.12.1.3 RFFE Config Dialog for R&S ZN-B15/-Z15 Var. 03
Controls the channel-specific setup of the two RFFE bus interfaces and GPIO ports
provided by variant 03 of the internal/external RFFE GPIO extension board R&S ZN-
B15/-Z15.
Access: CHANNEL – [CHANNEL CONFIG] > "Channels" > "RFFE..."
Channel Config Softtool
