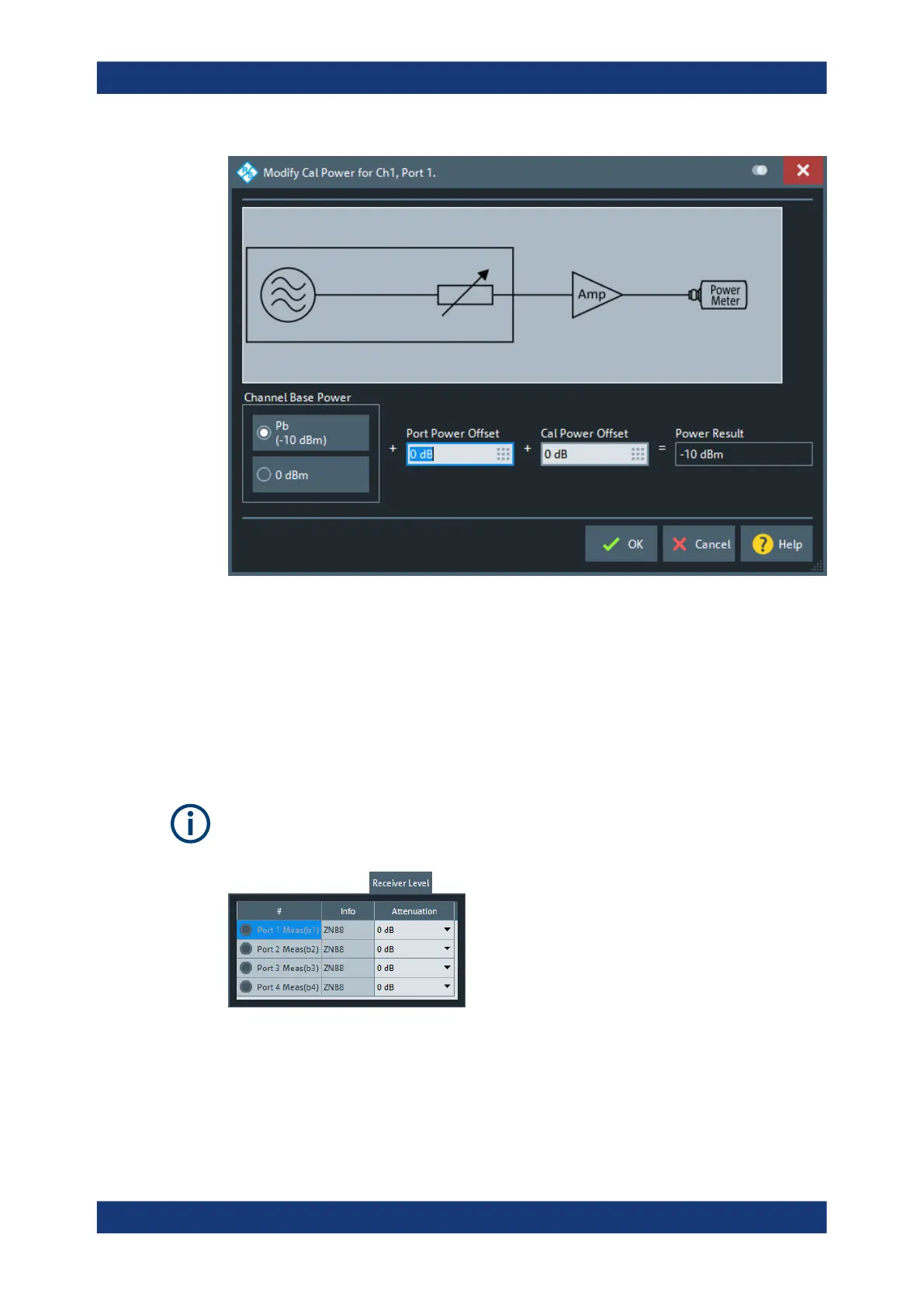

The control elements in the "Modify Cal Power" dialog are described in the following
sections:
●
"Channel Base Power" on page 491
●
"Port Power Offset" on page 491
●
"Cal Power Offset" on page 491
Receiver Level Tab
Provides access to the receiver step attenuator settings.
Receiver step attenuators are optional hardware (see Chapter 5.7.22, "Receiver Step
Attenuators", on page 238).
Attenuation
Sets the attenuation at the respective measurement receiver (b-wave). See "Step
Attenuators" on page 384.
Remote command:
[SENSe<Ch>:]POWer:ATTenuation
Channel Config Softtool
