Command Reference
R&S
®
ZNB/ZNBT
940User Manual 1173.9163.02 ─ 55
Example:
:CALCulate1:TRANsform:DTFault:STATE ON
turns the DtF representation of the active trace of channel 1 ON.
Options: R&S ZNB/ZNBT-K3
Manual operation: See "Distance to Fault" on page 675
8.3.1.22 CALCulate:TRANsform:VNETworks...
The CALCulate:TRANsform:VNETworks... commands define the circuit models
for single ended and balanced port (de-)embedding and activate the (de-)embedding
function.
The circuit models are referenced by means of predefined character data parameters.
They are different for single ended and balanced port de-/embedding.

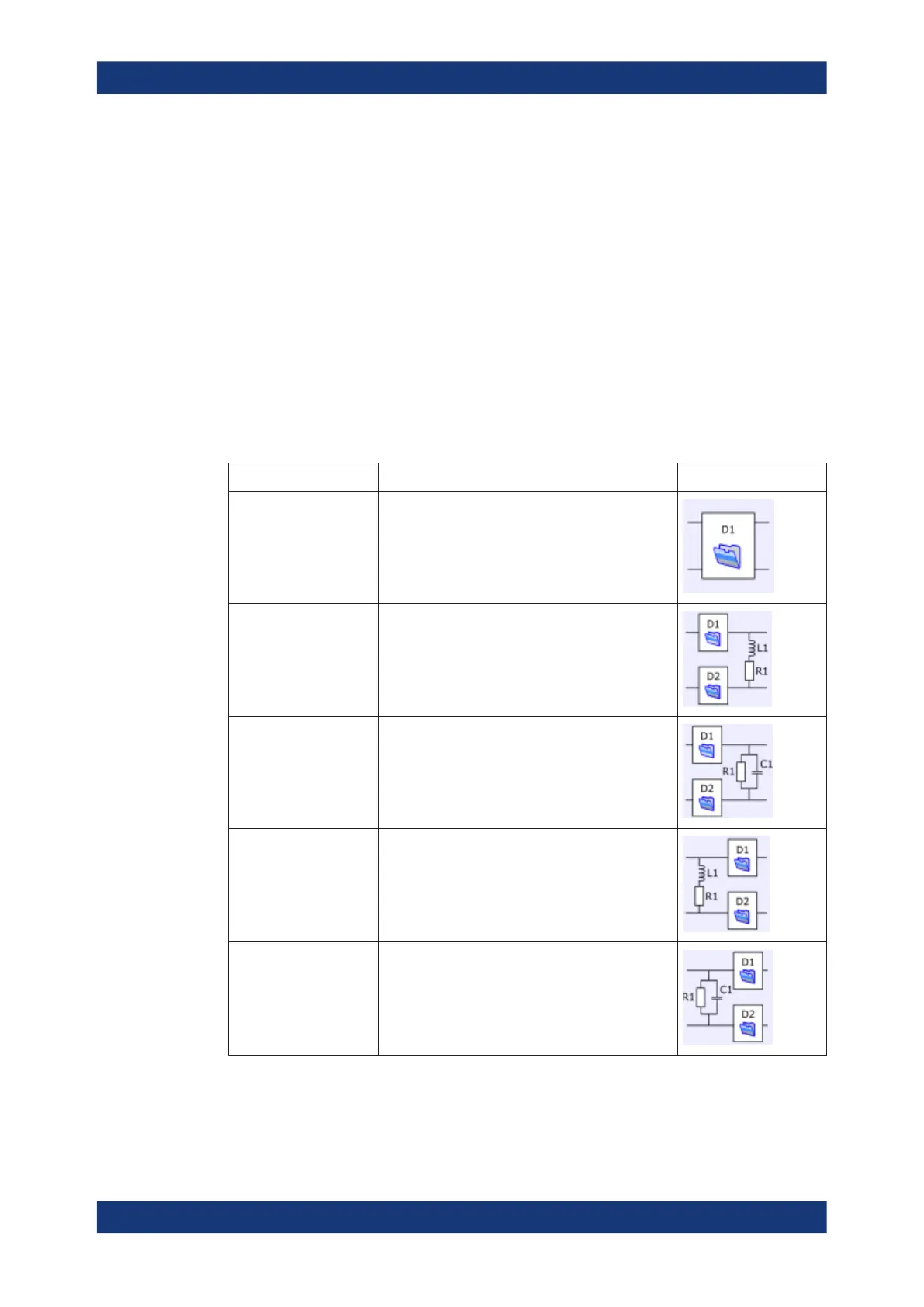

Table 8-6: Circuit models for balanced port and port pair de-/embedding
Parameter Circuit model Pictogram
FIMPort File import, generic 4-port (.s4p, no circuit model)
STSL Serial Touchstone (.s2p) data, shunt L
STSC Serial Touchstone (.s2p) data, shunt C
SLST Shunt L, serial Touchstone (.s2p) data
SCST Shunt C, serial Touchstone (.s2p) data
