the switch matrix status symbol, if a switch matrix is configured
(See Chapter 5.7.27, "External Switch Matrices", on page 245)
●
the current date and time

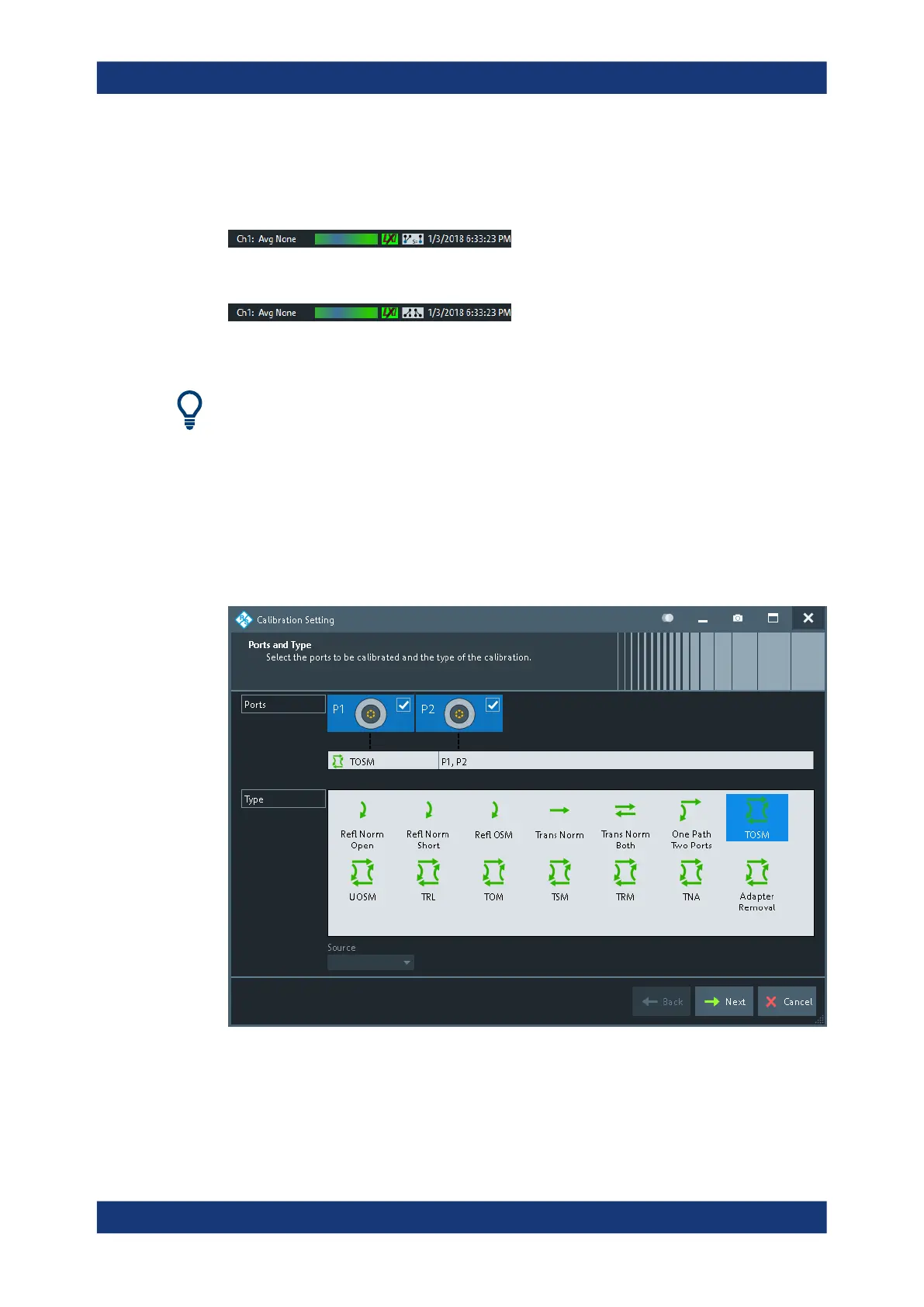

Figure 4-8: R&S ZNB/ZNBT with redefined physical ports
Figure 4-9: R&S ZNB/ZNBT with switch matrix
The progress bar shows a moving color gradient if the current sweep is too fast to be
monitored, e.g. because the number of sweep points is low. You can hide/show the sta-
tus bar using SYSTEM – [DISPLAY] > "View Bar" > "Status Bar".
4.3.3 Working with Dialogs
Dialogs provide groups of related settings and allow to make selections and enter data
in an organized way. The settings are visualized, if possible. An example is shown
below.
All dialogs are operated in a similar way.
●
To open a dialog, select a softtool button with three dots appearing in its label (e.g.
"Start... (Manual)").
●
The title bar of each dialog contains some convenience functions:
