4.3.2 Control Elements of the Application Window

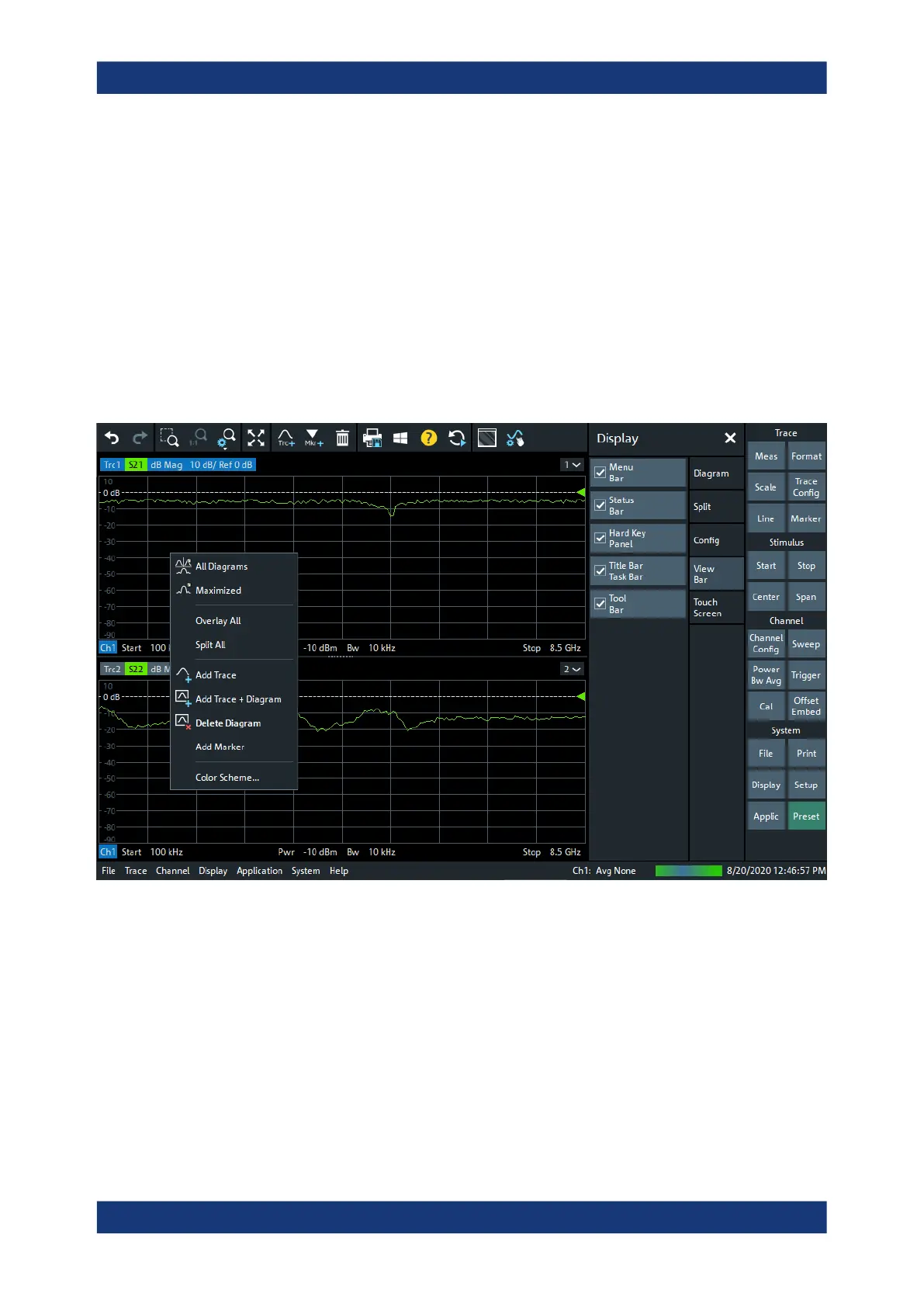

The application window of the analyzer provides all control elements for the measure-
ments and contains the diagrams for the results. There are several alternative ways for
accessing an instrument function:
●
Using a function key on the (virtual) hardkey panel to open the related softtool (rec-
ommended, provides all settings)
●
Using the menus and submenus of the menu bar (alternative to the previous
method)
●
Using the context menus of certain display objects (for important actions in the
context of this object)
●
Using the icons in the toolbar above the diagram area (for frequent global actions)
These methods are described in more detail in the following sections.
For further reference:
●
Refer to Chapter 5.2.1, "Display Elements of a Diagram", on page 91 to obtain
information about the results in the diagram.
●
Refer to Chapter 6.16, "Display Softtool", on page 682 and learn how to customize
the screen.
