Fixture Tool
The "Fixture Tool" section is only available for deembedding 2-port data networks.
Its controls allow you to select and run a third-party fixture modeling tool (see Chap-
ter 6.13.5, "Fixture Modeling Dialog", on page 589) and to use its results for single-
ended deembedding.
If the selected fixture modeling tool is not installed on the instrument, the "Run Tool"
button is disabled/grayed out. Otherwise it opens the Fixture Modeling Dialog that
guides you through the fixture modeling.
Use the "Info" button to get additional information about the selected tool. For back-
ground information, see Chapter 5.6.2.9, "Fixture Modeling and Deembedding",
on page 196.
6.13.5 Fixture Modeling Dialog
Allows you to model a test fixture using the selected fixture modeling tool and to deem-
bed selected ports using the generated touchstone files.
Background Information
See Chapter 5.6.2.9, "Fixture Modeling and Deembedding", on page 196.
Access: CHANNEL – [OFFSET EMBED] > "Single Ended" / "Balanced" > "Run Tool"

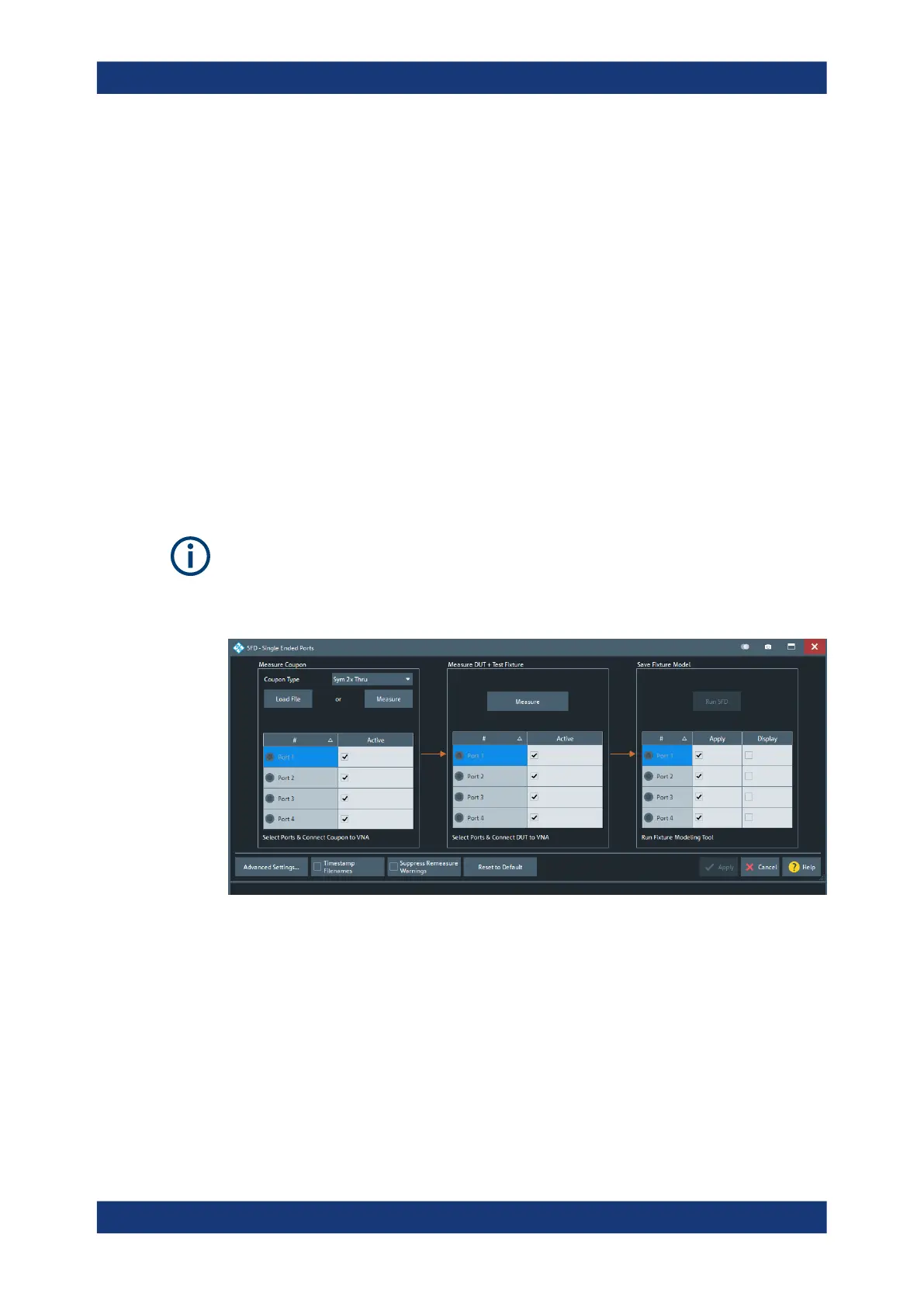

Figure 6-52: Fixture Modeling Dialog: SFD - Single Ended Ports
